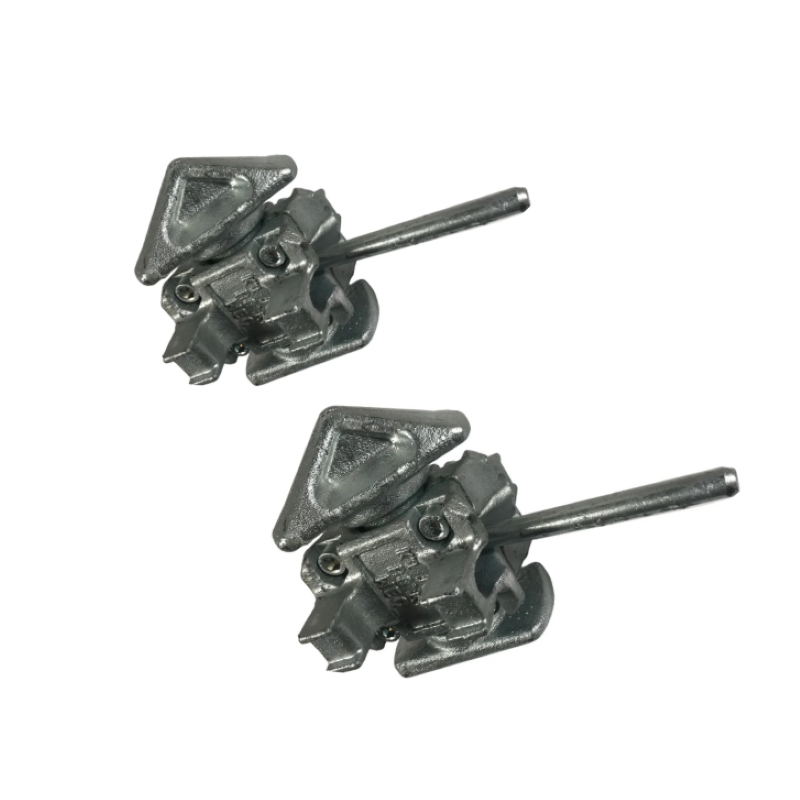

Durable Galvanised Shipping Container Stacking Twist Lock

Our manual intermediate stacking twist lock is designed to ensure the secure stacking of shipping containers, particularly in environments where stability is crucial. This includes areas prone to high winds or locations near walkways and roads, where movement could compromise health and safety.

The shipping container twist lock stacking pin is made for ease of operation, featuring a manual locking handle that makes securing containers straightforward. The position of the handle also serves as a visual indicator, clearly showing whether the lock is in a locked or unlocked state, enhancing safety and ease of use.

Constructed with a cast body and forged steel heads, this device promises exceptional strength and durability, ensuring your containers remain firmly in place. To further enhance its longevity and resist environmental wear and tear, the twist lock undergoes a hot dip galvanisation process, offering superior protection against corrosion.


Safe working load specifications:

• Shear: 210 kN, ensuring the lock can handle lateral forces.
• Tension: 250 kN, capable of withstanding forces that pull it apart.
• Compression: 1000 kN, showing its ability to support heavy vertical loads.

Breaking load capacity:

• Shear: 420 kN
• Tension: 500 kN
• Compression: 2000 kN
