Container Lashing equipment- Dovetail Bottom Twistlocks For Container Shipping

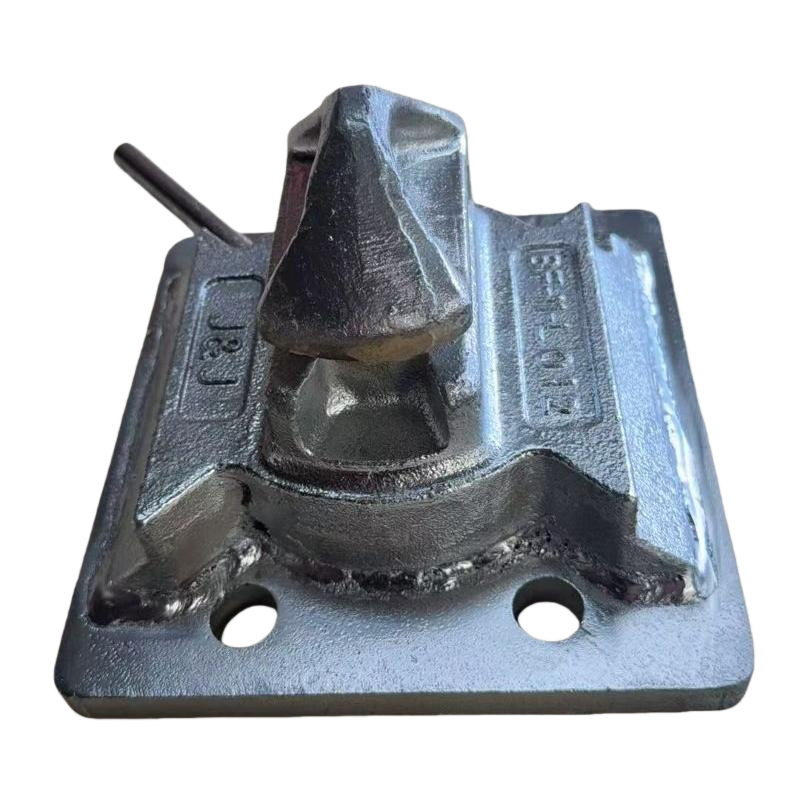

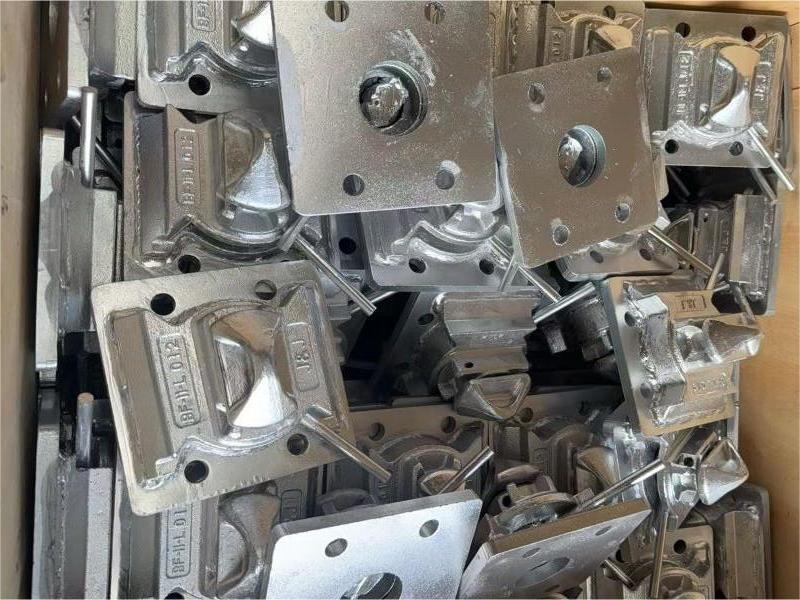

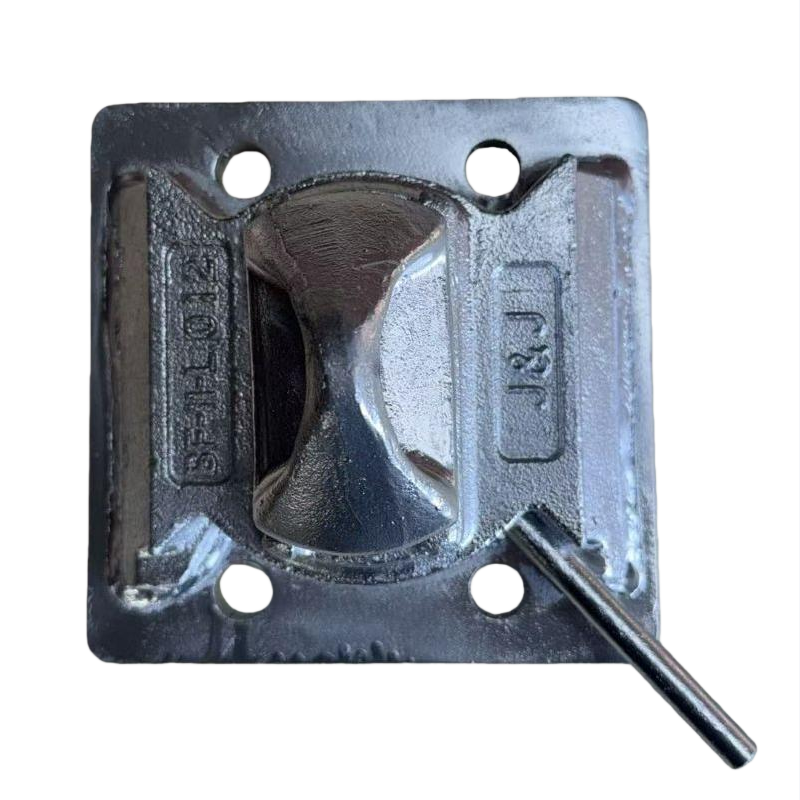

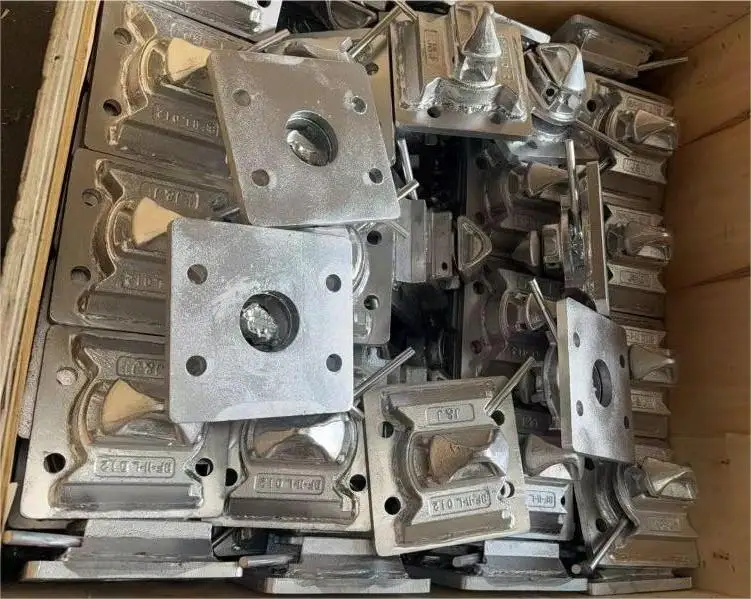

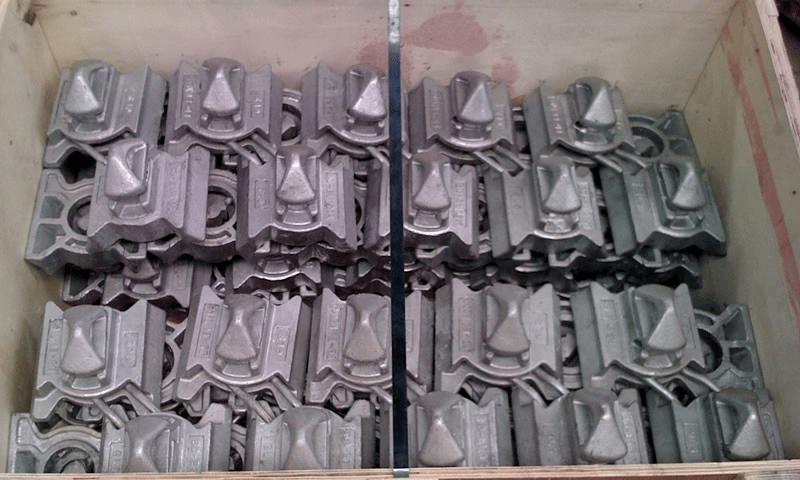

Dovetail Bottom Twistlock

Dovetail bottom twistlock is used with dovetail foundation to fix the bottom of container.
It is designed with a flat base that can be installed in a slipper frame or welded directly.
They are perfect for connecting shipping containers to any other structure.

Product Details:

1. Material:Forged steel

2. Surface treatment: Hot dip galvanized

3. Finish: Shop primer

4. Application: Container, shipping

5. Weight: 5.8KG, 6.4KG

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. All items are proves by major classification societies.

Twist Lock is a standardized rotating connector for securing shipping container. The trailer container twist lock main function is for locking a container into place on container ship,
semi-trailer truck or or railway container train; and for lifting of the containers by container cranes and side lifters.

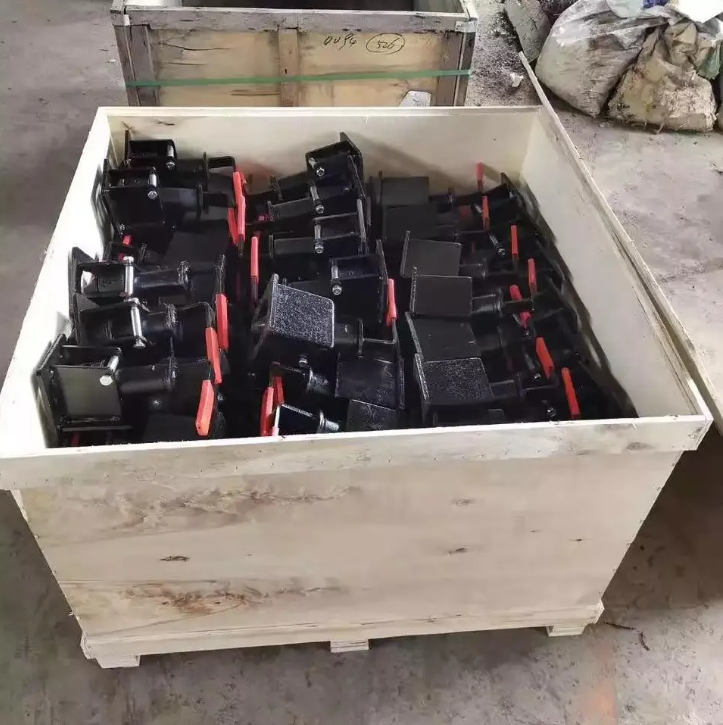

Dovetail Twist Lock for Shipping Containers

Materials:	Casting Steel/Forging Steel
Size:	As per your request or OEM standard
Color:	Red or black
Type:	Jost, York, BPW type etc.
Application:	truck, trailer container chassis
Certification:	ISO/TS16949
