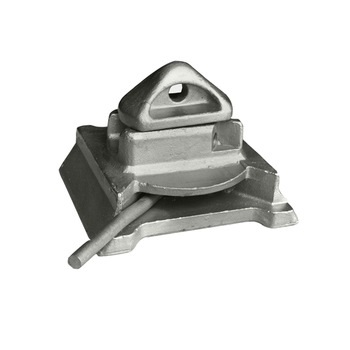

A Weld-On Twist Lock is a fundamental and critical securing component used in the intermodal transport and storage of shipping containers. It is permanently welded onto the chassis of a container trailer, flatbed truck, or railway car.
Its primary function is to engage mechanically with the standard Corner Castings (the large, square openings at all eight corners of a shipping container). Once engaged and twisted into the "locked" position, the twist lock securely fastens the container to the transport vehicle, preventing any movement during transit and ensuring safety and stability.
The "weld-on" style is valued for its durability, strength, and permanent attachment, making it the preferred choice for dedicated container carrying equipment.
Product Description
1.Container Corner Casting - ISO-Standardized Heavy-Duty Corner Fittings
Container Corner Castings are critical structural components installed at the eight corners of ISO shipping containers. These precision-engineered castings serve as anchor points for lifting, stacking, securing, and transporting containers via cranes, spreaders, twist locks, and lashing systems. Manufactured to comply with ISO 1161 specifications, they ensure global interoperability and safety in intermodal logistics operations.
Maritime Shipping: Anchor points for shipboard lashing systems.
Port Handling: Lifting and transferring containers between trucks, trains, and vessels.
Warehouse Storage: Stacking containers vertically in storage yards.
Intermodal Transport: Securing containers to chassis or railcars.
Product Parameters
2.Product Parameter of Container Corner Casting trailer container Weld On Style Twist Lock
| Parameter | Details |
|---|---|
| Standard | ISO 1161 (Series 1 freight containers) |
| Material | Grade C Steel / Ductile Iron (EN-GJS-400-18-LT) |
| Coating | Hot-Dip Galvanized (Minimum 85μm) or Zinc Spray |
| Aperture Size | Top/Bottom Castings: 178mm x 162mm x 40mm (L x W x D) |
| Load Capacity | Vertical: 30 tons per casting; Horizontal: 15 tons per casting |
| Certifications | ISO, CSC (Container Safety Convention), ABS, DNV-GL |
Unlocked Position: The locking head is aligned with the opening of the container's corner casting. The container can be lowered onto or lifted off the locks.
Locked Position: Once the container is seated on the locks, the head is rotated 90°. The head now rests securely inside the corner casting, locking the container in place.
Important Safety Note: Always ensure the twist lock is fully engaged in the "locked" position before transit. Regular inspection for wear, damage, or cracks is essential for safe operation.

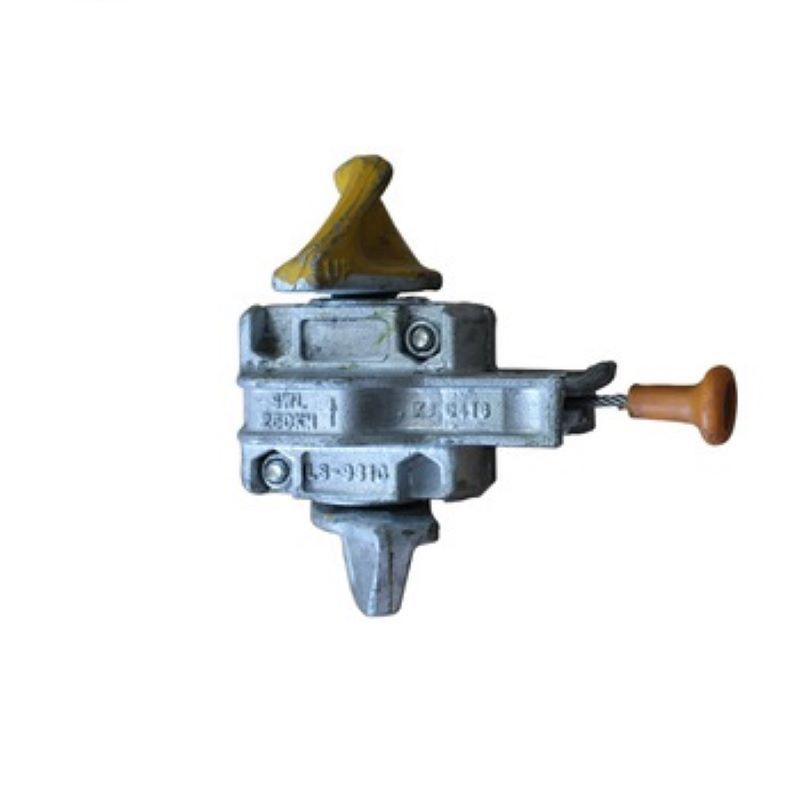

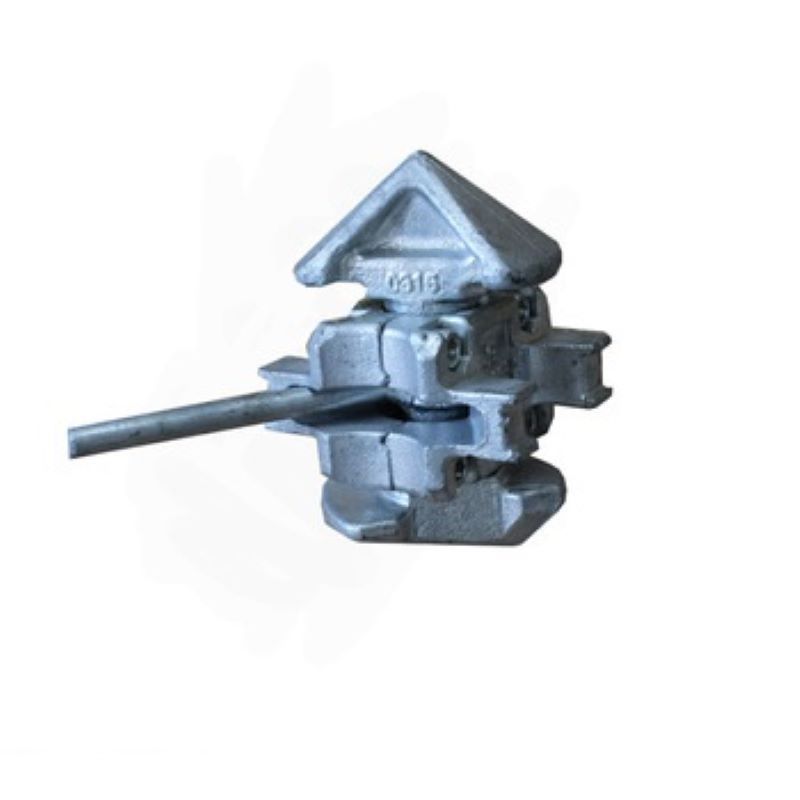

We also supply different kinds of trailer container twist lock for your choice;
