Product Details

Heavy duty 1000 mm double ball bearing full trailer turntable for sale

1,Style:double row and sing row bearing.
2,Type: UA, UB, Z types.
3,Long life span, high quality.
4,Certificate:ISO, and TS16949

Product Parameters

Single Ball/Casting turntable-A:



Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTS500-A01	500	500	392	376	55	32	10	16
LHTS685-A01	685	700	590	565	80	45	13	16
LHTS880-A01	880	895	779	754	80	60	13	16
LHTS1000-A01	1000	1015	885	860	80	76	14	22
LHTS1000-A02	1022	1013	879	856	90	85	14	22
LHTS1000-A03	1000	1015	885	860	90	84	14	22
LHTS1100-A01	1100	1115	985	960	90	98	15	22
LHTS1100-A02	1100	1111	983	949	90	98	15	22
LHTS1200-A01	1200	1211	1083	1050	90	110	15	22
LHTS1300-A01	1300	1315	1180	1146	90	118	16	22
LHTS1300-A02	1300	1315	1185	1160	90	118	16	22

Double Ball/Casting turntable-B:



Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTD650-B01	650	665	552	510	80	74	14	16/19
LHTD880-B01	880	895	780	740	80	80	14	16/19
LHTD1000-B01	988	1000	870	830	92	88	14	16/19
LHTD1096-B01	1096	1110	990	950	80	100	14	16/22
LHTD1100-B01	1095	1108	975	940	92	100	15	16/22
LHTD1200-B01	1195	1208	1076	1040	92	118	15	16/22
LHTD1200-B02	1198	1215	1075	1040	92	120	16	16/22

Single ball/casting turntable-C:



Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTS500-D01	500	437	379	310	52	25	10	16
LHTS650-D01	650	587	523	465	52	32	10	16
LHTS750-D01	750	687	620	565	52	36	10	16
LHTS850-D01	850	787	723	665	52	41	10	16
LHTS950-D01	950	888	820	752	56	45	12	16
LHTS950-D02	952	885	821	750	60	48	12	20
LHTS1050-D01	1050	987	923	865	52	53	12	16
LHTS1100-D01	1102	1027	923	854	56	61	12	20

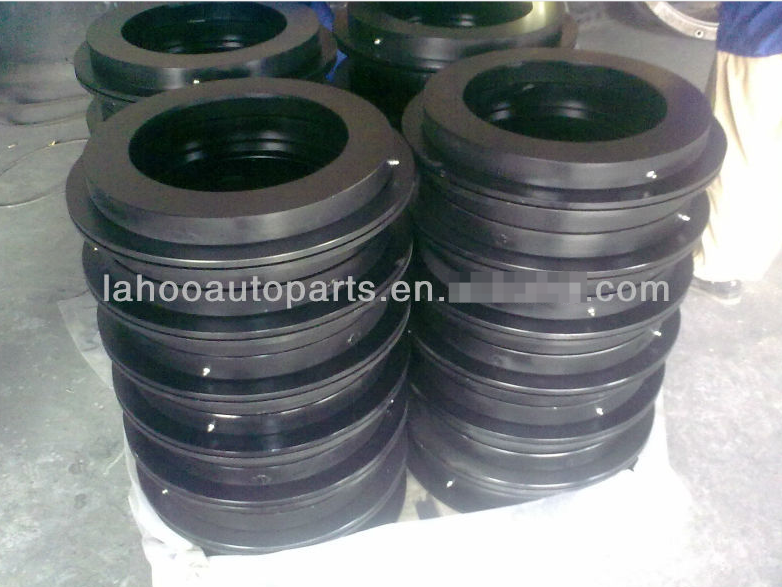

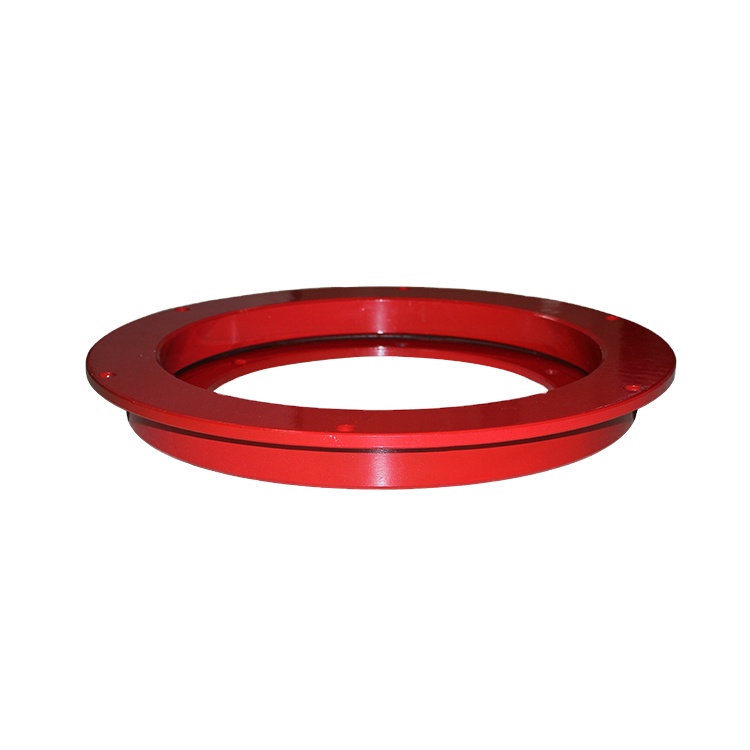

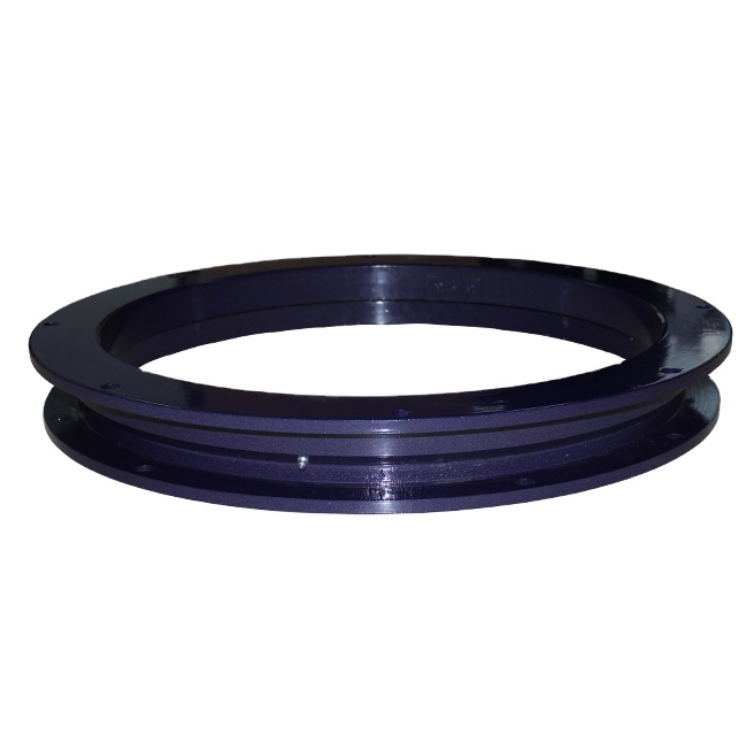

Detailed Photos
