1100mm Casting Iron Semi Trailer Ball Race Turntable Ball Bearing Trailer Turntable

1100mm Casting Iron Semi Trailer Ball Race Turntable Ball Bearing Trailer Turntable

Product Description



 Xiamen Lahoo can supply different types of turntable for truck, full trailer, semi trailer and farm vehicles.

Including ZA type, ZB type, UA, UB type, Single or double row ball turntable. And also OEM is available, cover JOST and BPW type turntable.

The 1000mm diameter Jost turntable slewing ring trailer ball bearing turntable is a critical component for heavy-duty semi-trailers, enabling smooth articulation between the trailer and tractor during turns. Designed for extreme load capacities and harsh operating conditions, it minimizes friction, enhances maneuverability, and prolongs the lifespan of the trailer's steering system.

Product Parameters



 UB Type Single Ball/Casting turntable:





Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTS500-A01	500	500	392	376	55	32	10	16
LHTS685-A01	685	700	590	565	80	45	13	16
LHTS880-A01	880	895	779	754	80	60	13	16
LHTS1000-A01	1000	1015	885	860	80	76	14	22
LHTS1000-A02	1022	1013	879	856	90	85	14	22
LHTS1000-A03	1000	1015	885	860	90	84	14	22
LHTS1100-A01	1100	1115	985	960	90	98	15	22
LHTS1100-A02	1100	1111	983	949	90	98	15	22
LHTS1200-A01	1200	1211	1083	1050	90	110	15	22
LHTS1300-A01	1300	1315	1180	1146	90	118	16	22
LHTS1300-A02	1300	1315	1185	1160	90	118	16	22





U Type Single Ball/Casting turntable:



Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTD650-B01	650	665	552	510	80	74	14	16/19
LHTD880-B01	880	895	780	740	80	80	14	16/19
LHTD1000-B01	988	1000	870	830	92	88	14	16/19
LHTD1096-B01	1096	1110	990	950	80	100	14	16/22
LHTD1100-B01	1095	1108	975	940	92	100	15	16/22
LHTD1200-B01	1195	1208	1076	1040	92	118	15	16/22
LHTD1200-B02	1198	1215	1075	1040	92	120	16	16/22

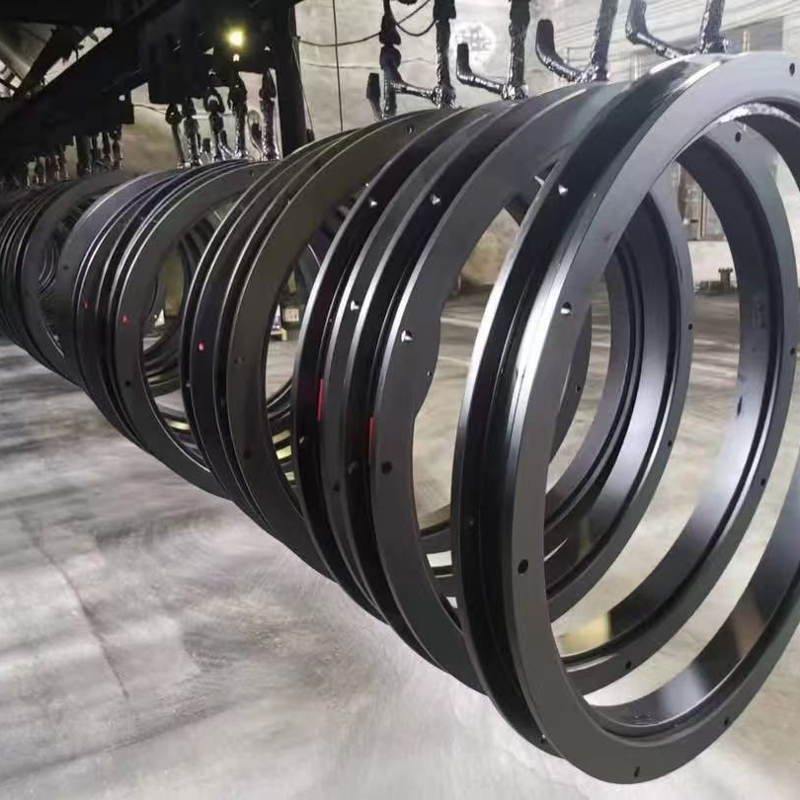

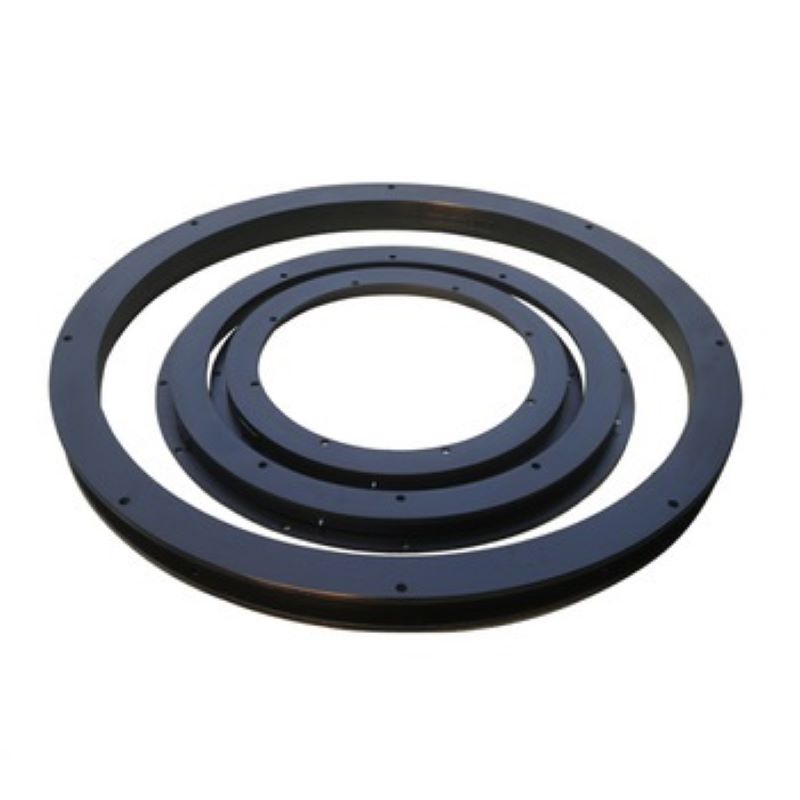

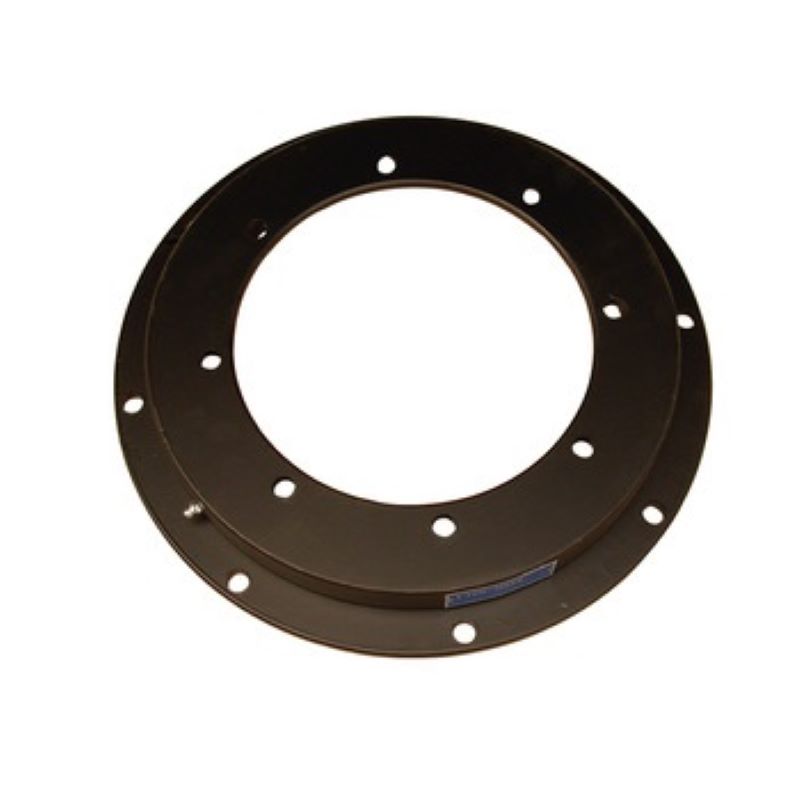

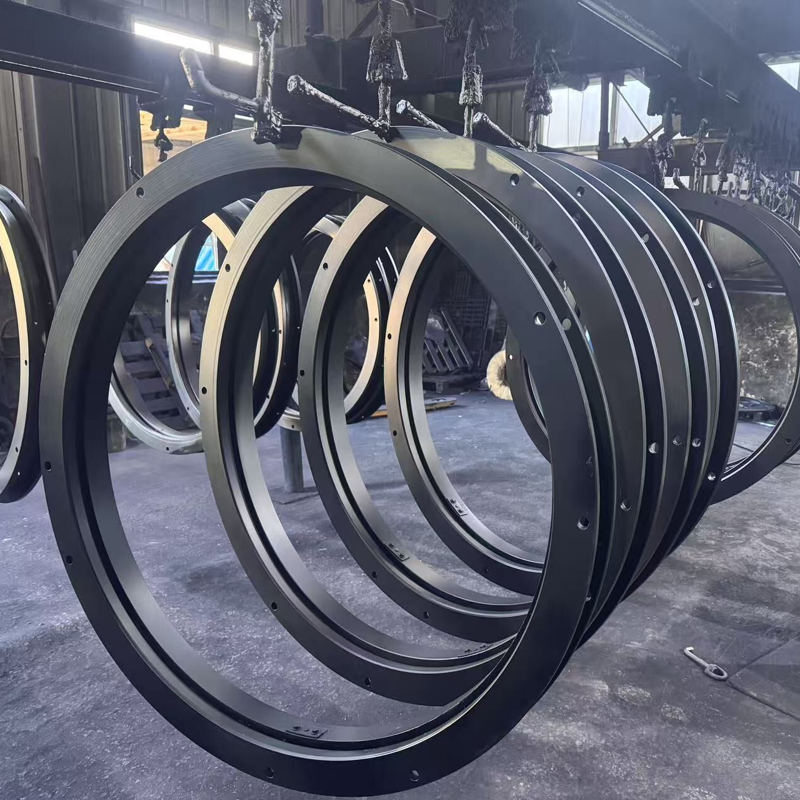

Detailed Photos
