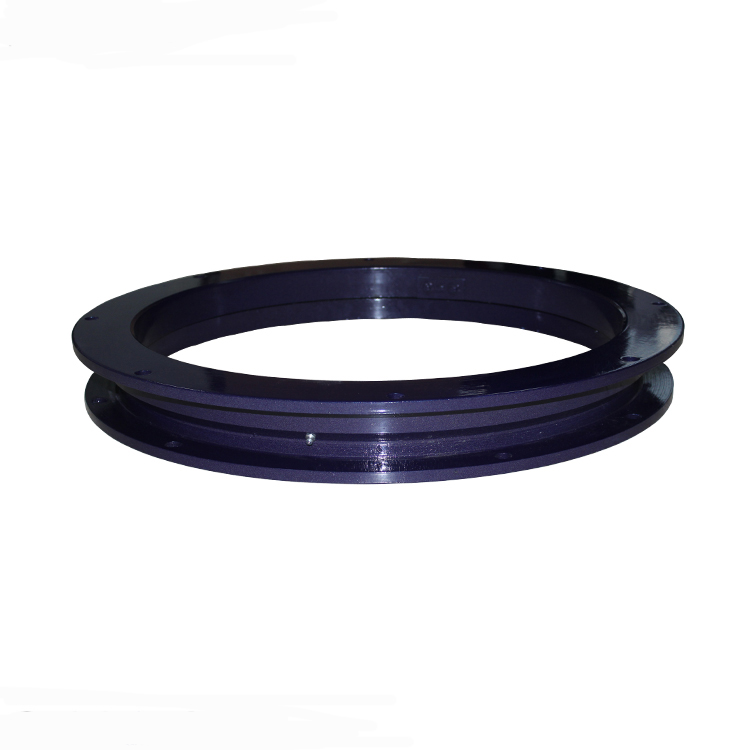

Heavy Duty Casting Steel Trailer Turntable 800mm Ball Bearing Double Track

Ball Race Bearing/Ball Bearing Truck Trailer TurntableTechnical Parameters:

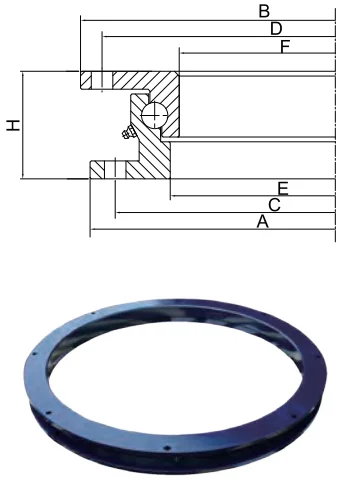

U Type Single Ball/Casting turntable





Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTS500-A01	500	500	392	376	55	32	10	16
LHTS685-A01	685	700	590	565	80	45	13	16
LHTS880-A01	880	895	779	754	80	60	13	16
LHTS1000-A01	1000	1015	885	860	80	76	14	22
LHTS1000-A02	1022	1013	879	856	90	85	14	22
LHTS1000-A03	1000	1015	885	860	90	84	14	22
LHTS1100-A01	1100	1115	985	960	90	98	15	22
LHTS1100-A02	1100	1111	983	949	90	98	15	22
LHTS1200-A01	1200	1211	1083	1050	90	110	15	22
LHTS1300-A01	1300	1315	1180	1146	90	118	16	22
LHTS1300-A02	1300	1315	1185	1160	90	118	16	22

U Type Double Ball/Casting turntable



Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTD650-B01	650	665	552	510	80	74	14	16/19
LHTD880-B01	880	895	780	740	80	80	14	16/19
LHTD1000-B01	988	1000	870	830	92	88	14	16/19
LHTD1096-B01	1096	1110	990	950	80	100	14	16/22
LHTD1100-B01	1095	1108	975	940	92	100	15	16/22
LHTD1200-B01	1195	1208	1076	1040	92	118	15	16/22
LHTD1200-B02	1198	1215	1075	1040	92	120	16	16/22

Z Type Double Ball/Casting turntable



Item No.	A	B	E	F	H	Weight	Ring Thickness	Ball Dia.
	mm	mm	mm	mm	mm	Kg	mm
LHTS500-D01	500	437	379	310	52	25	10	16
LHTS650-D01	650	587	523	465	52	32	10	16
LHTS750-D01	750	687	620	565	52	36	10	16
LHTS850-D01	850	787	723	665	52	41	10	16
LHTS950-D01	950	888	820	752	56	45	12	16
LHTS950-D02	952	885	821	750	60	48	12	20
LHTS1050-D01	1050	987	923	865	52	53	12	16
LHTS1100-D01	1102	1027	923	854	56	61	12	20

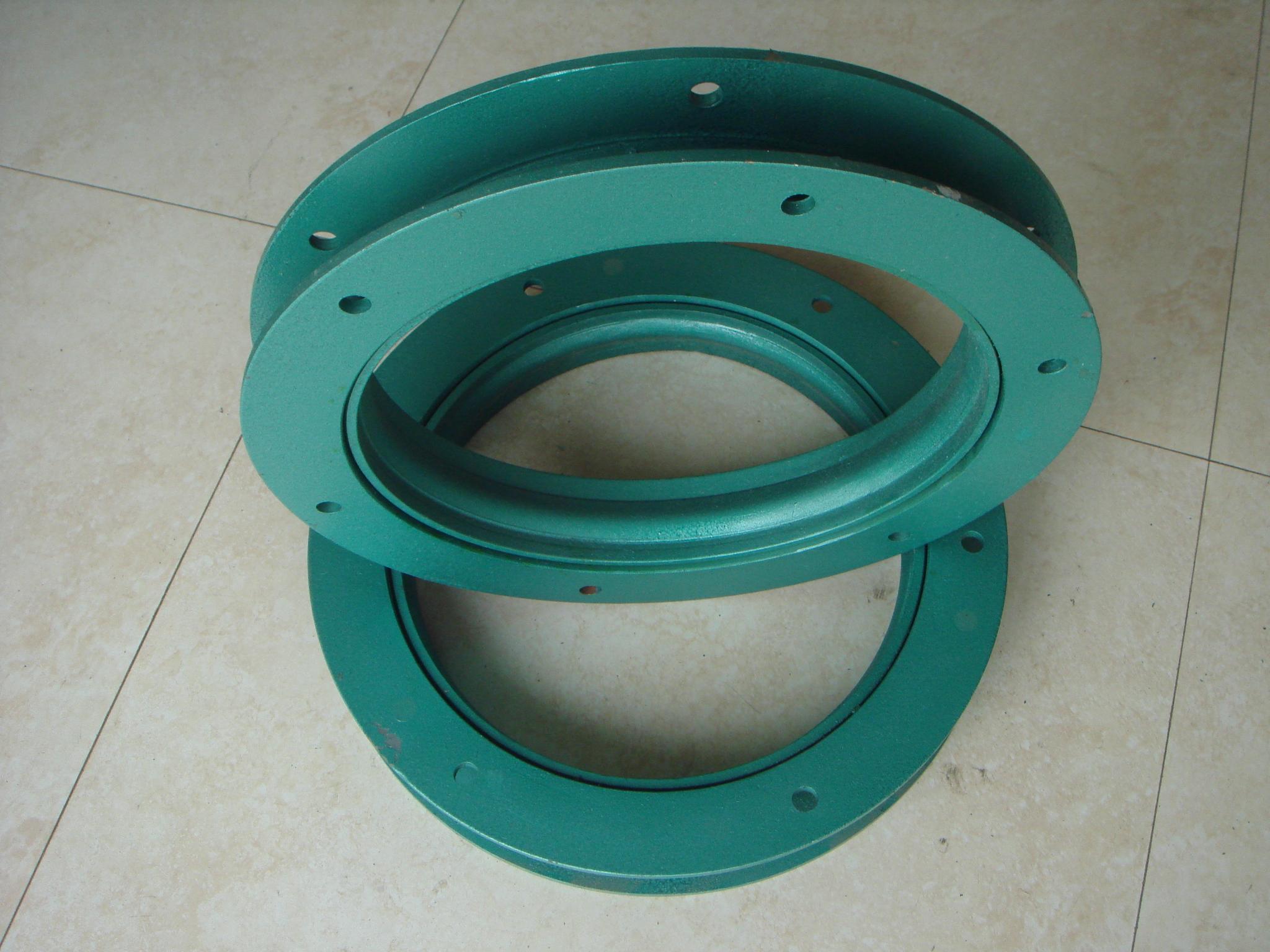

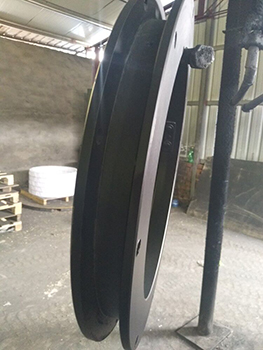

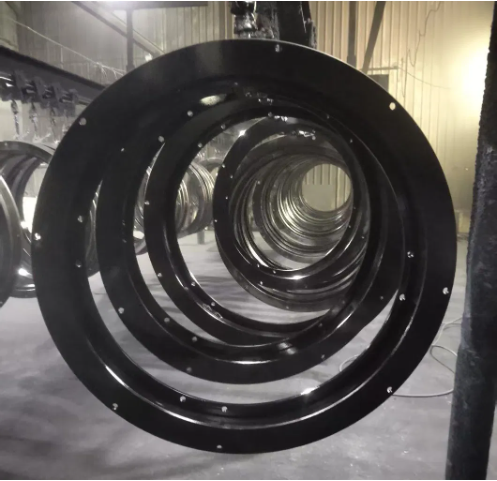

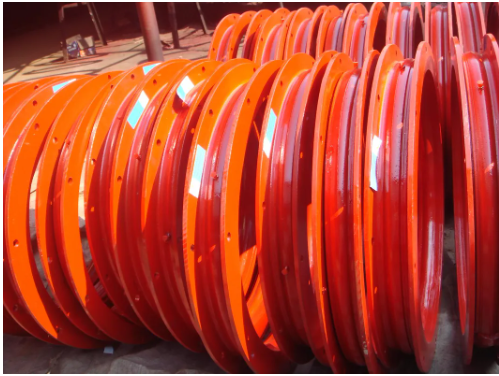

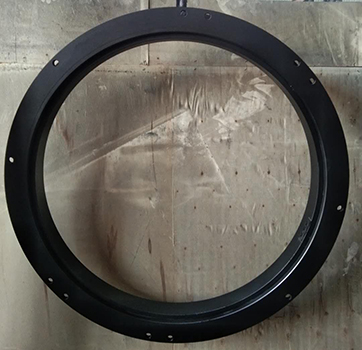

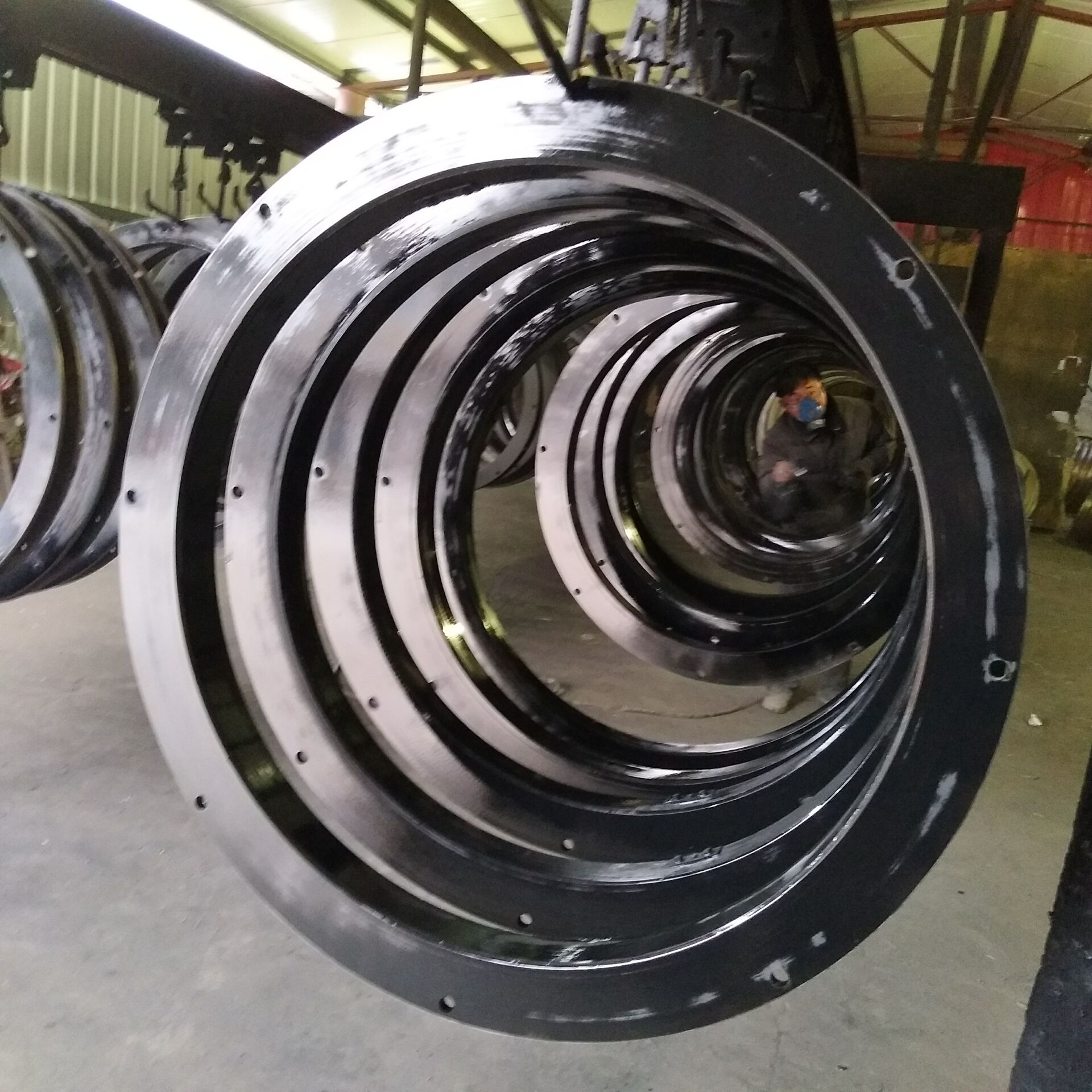

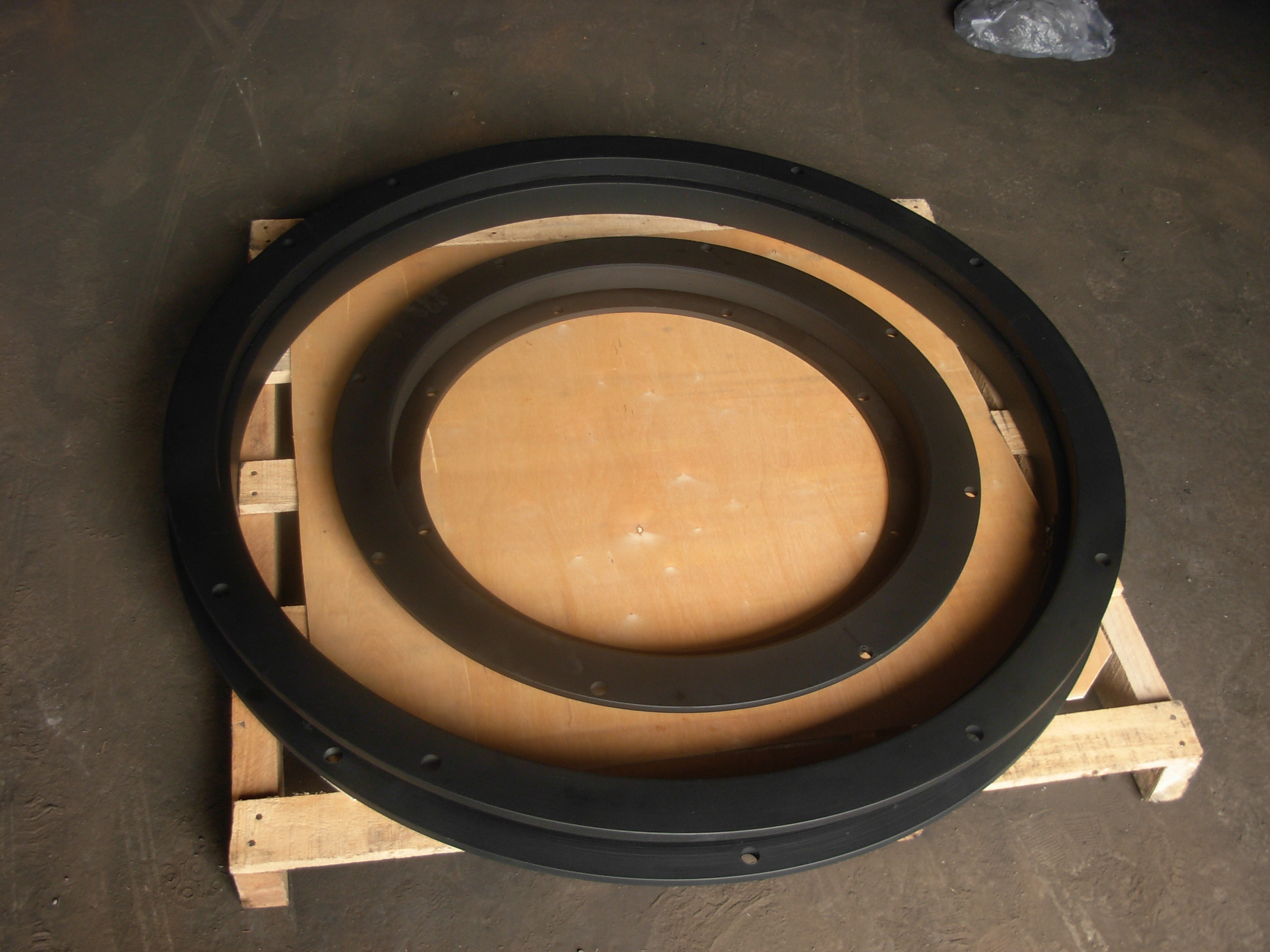

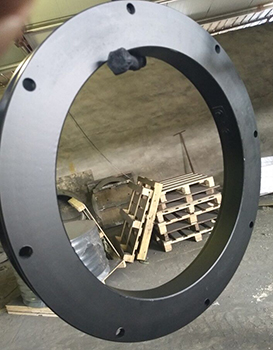

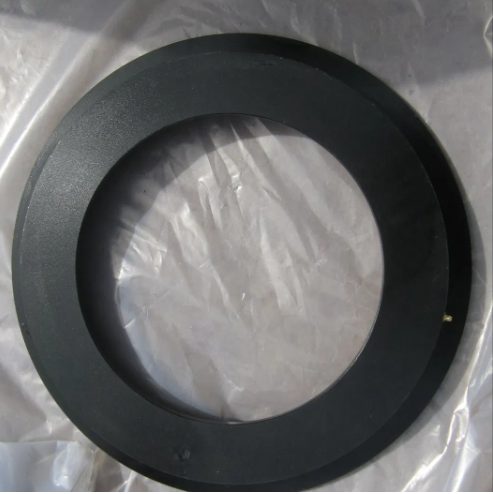

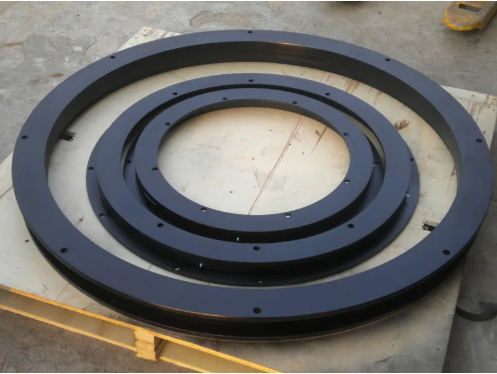

Detailed Photos

1. All enquiries will be valued and replied with 24 hours;
2. We will give you any professional suggest, according to different market and products for new customers;
3. Our Inspect Department will test each batch to ensure high quality, with material test & performance test;
4. Quick & efficient delivery to guarantee your inventory;
5. Good package to protect the products;
6. Your any feedback will be highly appreciate to make sure we can do better and better;
7. Accept OEM & ODM, our strong design team support custom products according to customer’s requirement;
8. Sample or small order is welcome;

1. Q:What's your best price for this product?

A: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want.The more quantity the better price.

2. Q:How about the quality of this product?

A: Our products are certified to ISO9001, international quality standards. We company have very strict Quality Control Systems.

3. Q:What's your MOQ?

A: 1pc for each model. We hope you can buy more to save more money.

4. Q:What's the delivery time?

A: For products that are in stock, we can ship it within 7 days after receiving your payment. For custom order, quantity within 24 tons, production time is 20-25 days after every details confirmed.

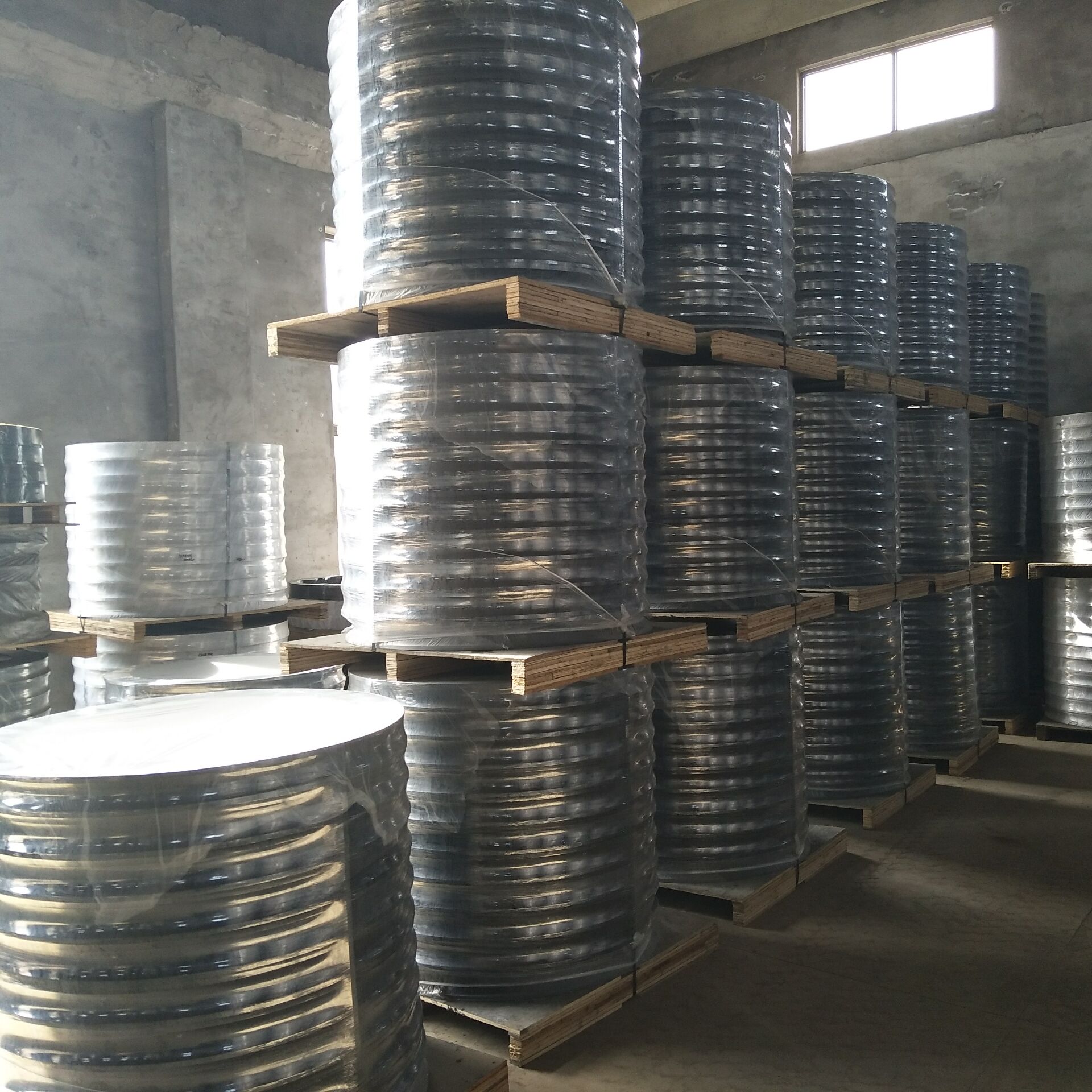

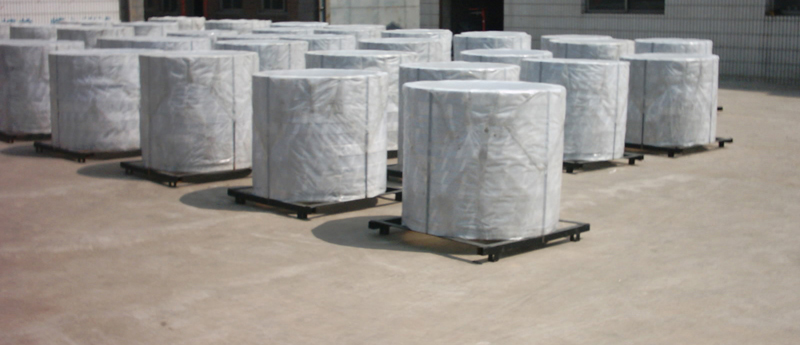

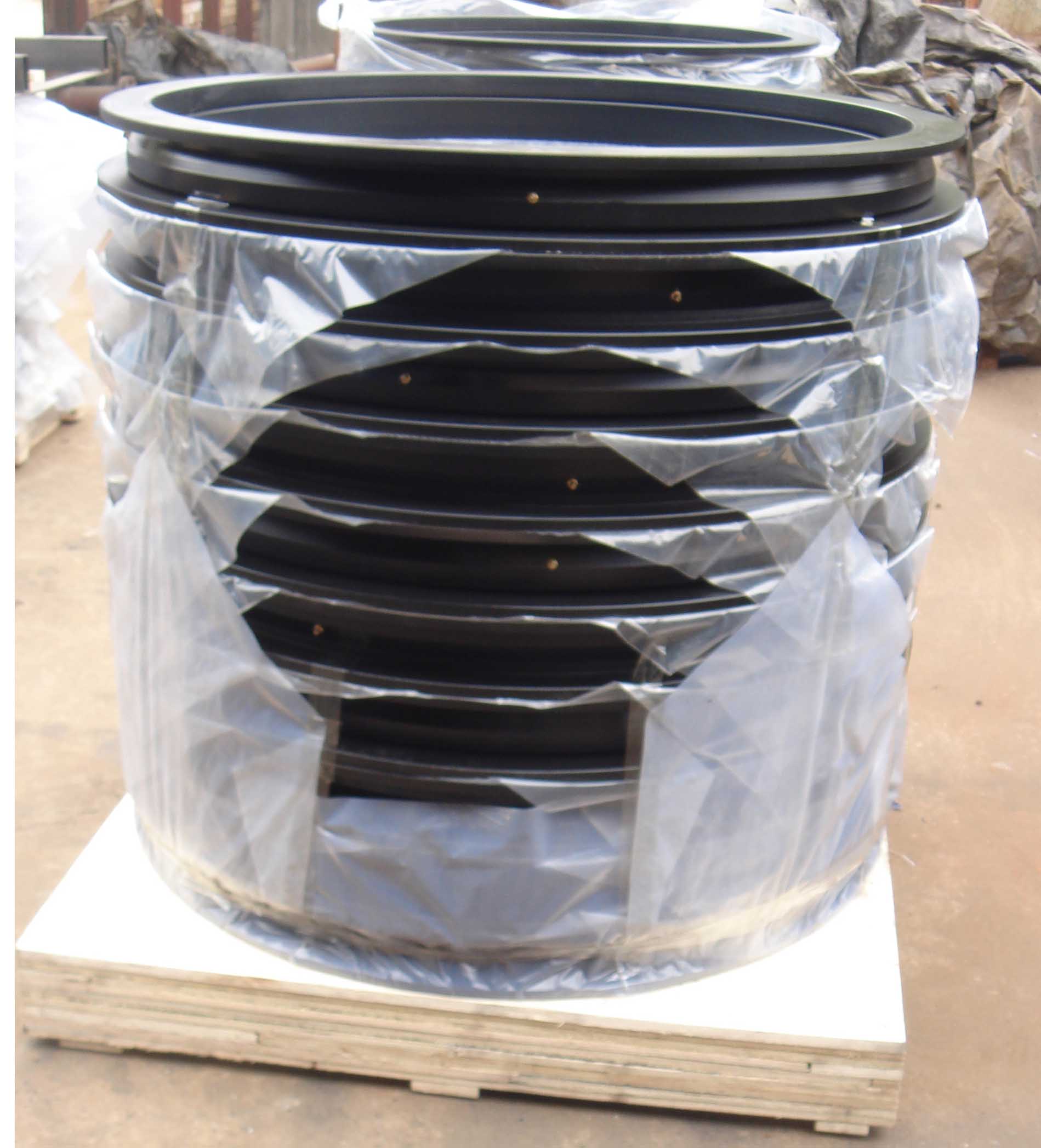

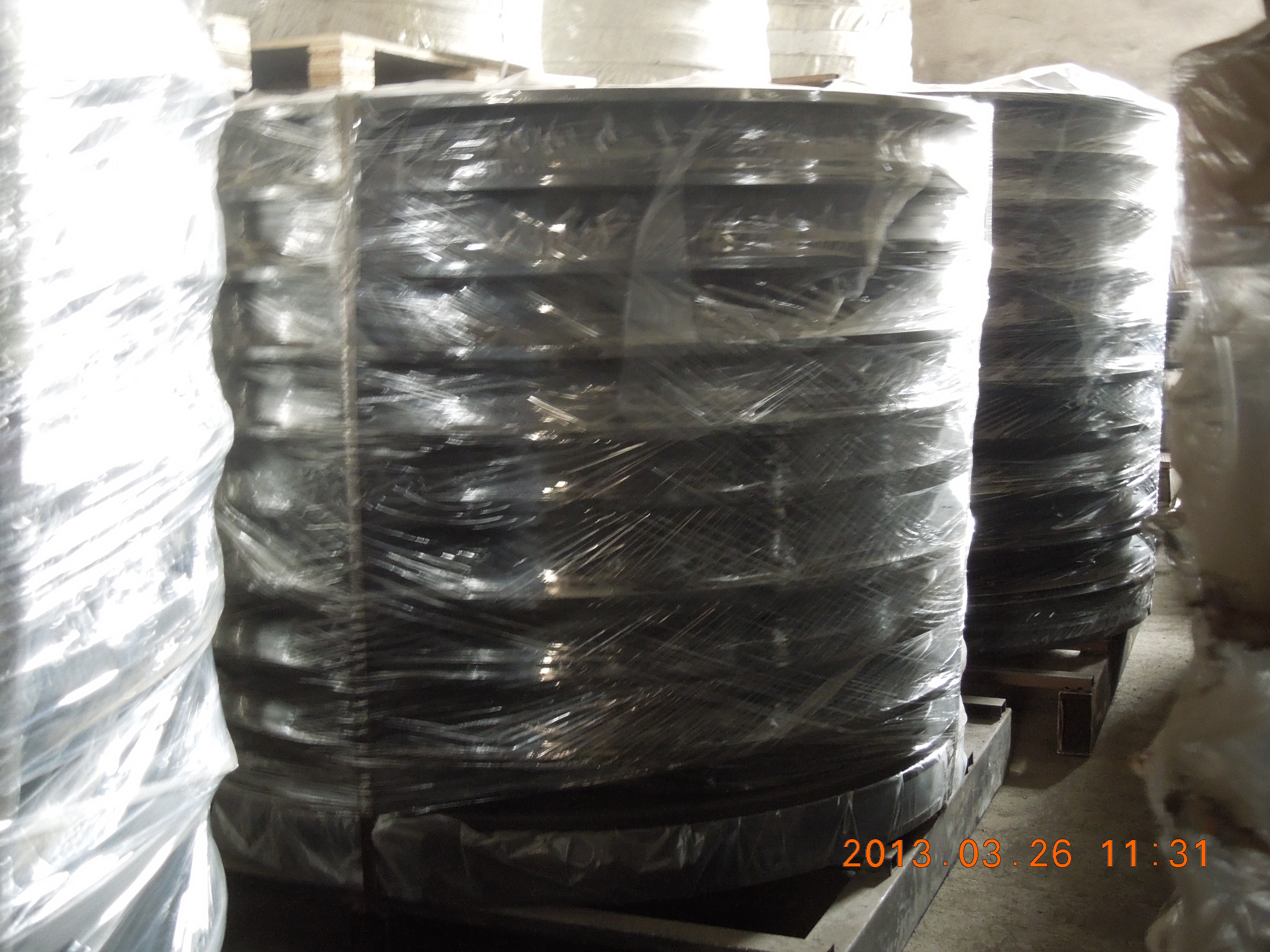

5. Q:What's your packing?

A:Our usual packing is pallet, we can also supply your packing according to your requirements.

6. Q:Can we custom our own logo or label on this product?

A: Yes, you can. we support logo print & stamping & label print, print will be free if the logo is not very complex.

7. Q:What about the warranty?

A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.

8. Q:What is the Payment Terms?

A: T/T,L/C,Western Union,Moneygram,Paypal.

9. Q:What is the shipment way?

A: By sea,by air or by express,it depends on how much of goods,by sea is the most economical way.

10.Q:Can you send me price as soon as possible?It is urgently!

A: In order to get the price fastly and accurately,it will be appreciated if you could provide the technical drawing or OE No.,
for custom goods,the actual goods sample will be better.
