A 5000 lbs Trailer Jack Stand, often integrating a hydraulic bottle jack, is a heavy-duty support system designed for the demanding needs of trailers, RVs, boats, and other large equipment. Its primary function is to provide a stable, secure, and elevated support once the trailer is disconnected from the towing vehicle, preventing the front end from dropping and ensuring safety during maintenance, loading, or stationary storage.

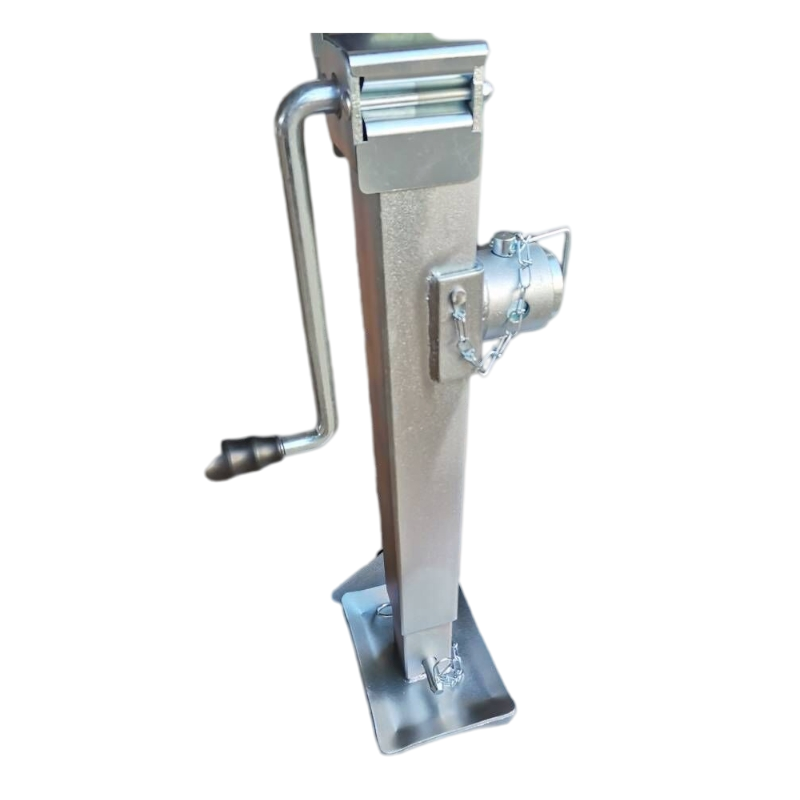

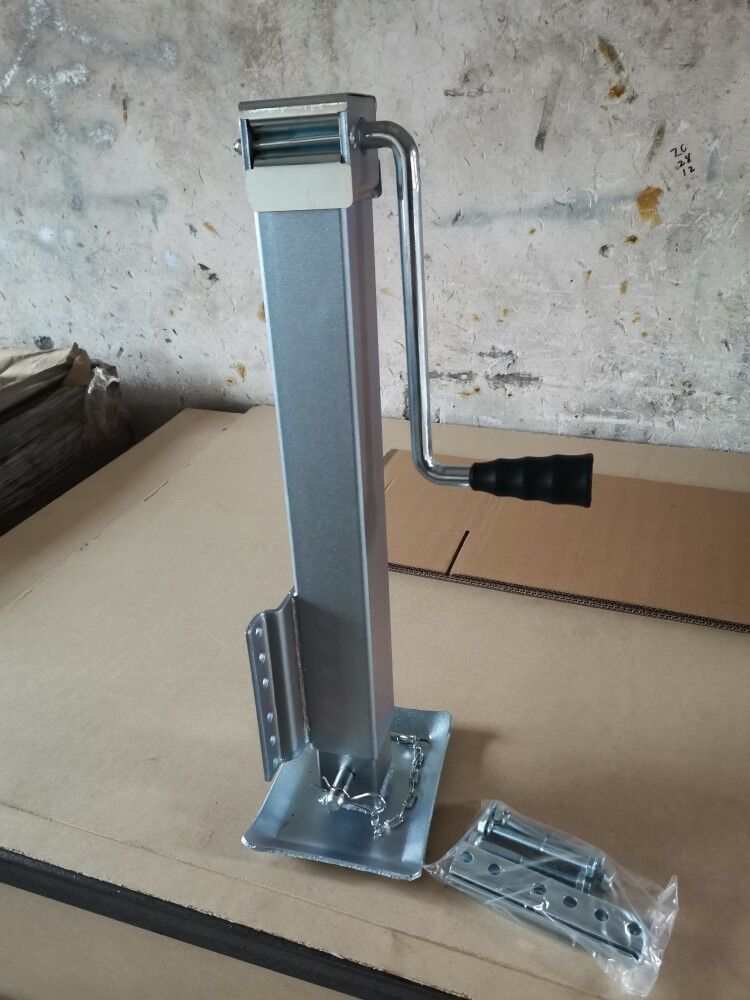

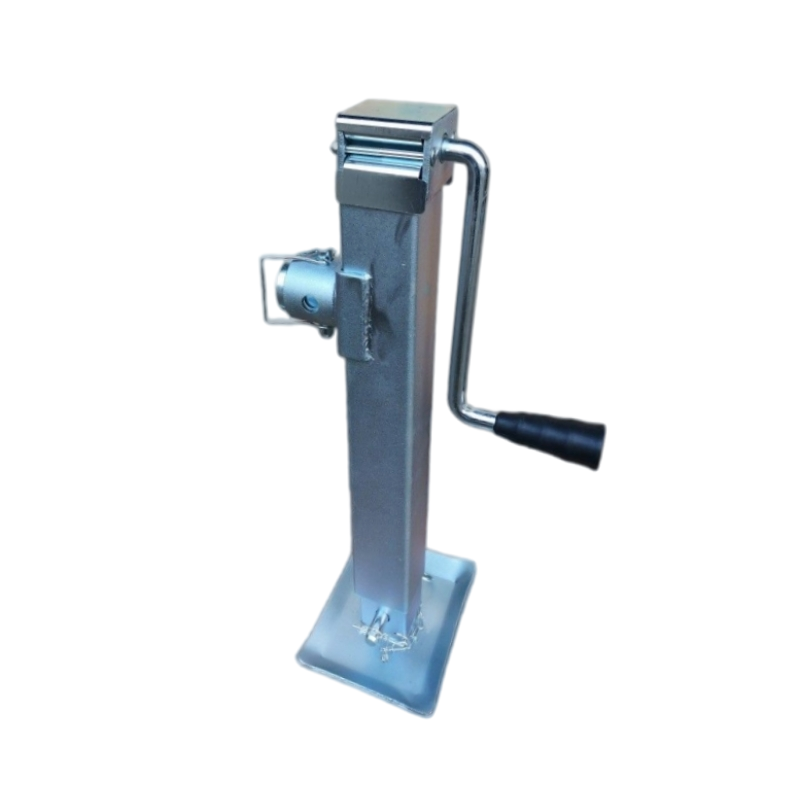

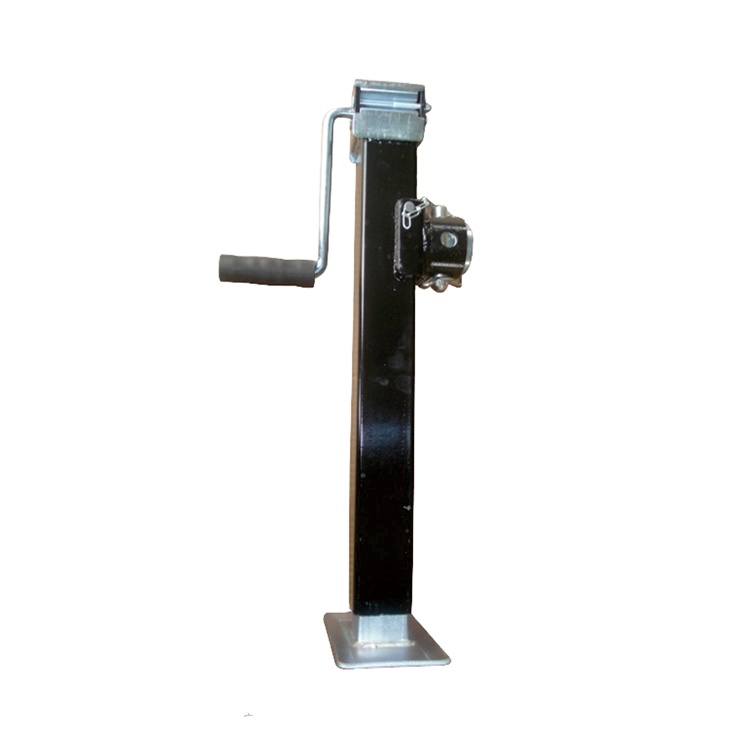

A compact yet powerful solution for stabilizing trailers, RVs, and utility vehicles, the Side Wind Trailer Jack combines lightweight design with robust load-bearing capacity. Engineered for easy deployment and side-mounting versatility, it is ideal for users prioritizing portability and durability in demanding outdoor environments.
Trailer stabilization: Secure boat trailers, cargo trailers, or horse trailers.
RV leveling: Adjust height on uneven campsites.
Mobile workshops: Stabilize utility trailers during equipment use.
Portability: Lightweight yet sturdy, easy to transport and install.
Space-saving: Side-mount design maximizes ground clearance and hitch accessibility.
Low maintenance: Pre-lubricated gears and corrosion-resistant materials.
Cost-effective: Affordable alternative to bulkier heavy-duty jacks.
1. Capacity: up to 5000Lbs
2. Travel: 15"
3. Finishing: Zinc plated
4. Certificate of ISO/TS16949
5. Competitive price and fast delivery
5000B Trailer Jack Square Tube Side Wind dimension size:
| Model | Capacity | Travel | Handle Type | Mounting Style | Packing | QTY/CTN | N.W | G.W | MEAS |
| LH-5000A | 5000LBS/2272KG | 15" | Top | A-Frame | Carton | 1 | 5 | 5.4 | 560*145*210 |
| LH-5000B | 5000LBS/2272KG | 15" | Side | Tube Mount Incl | Carton | 2 | 20 | 24 | 650*300*240 |
| LH-5000C | 5000LBS/2272KG | 15" | Side | Tube Mount Incl | Carton | 2 | 16 | 18 | 650*300*240 |
Alsoifferent type capacity jockey wheel,trailer jack and landing gear for multiple choice:
Detailed Photos
