The Top Wind A-Frame Trailer Jack is a heavy-duty, reliable solution for stabilizing and leveling your travel trailer, camper, or fifth wheel. Designed with a robust 2000 lbs lift capacity, it provides the strength needed for safe and secure lifting, lowering, and steady support during setup, maintenance, or storage. Its ergonomic crank handle and efficient gear system make lifting heavy loads remarkably smooth and straightforward. The integrated top wind feature allows for easy, tool-free angle adjustment to perfectly level your RV on any terrain, ensuring a stable and comfortable base for your adventures.
Here are the detailed technical specifications and key features:
| Parameter | Specification |
|---|---|
| Model / Type | A-Frame / Tongue Jack |
| Lift Capacity | 2000 lbs (907 kg) |
| Lifting Range | Typically 15.5 inches (394 mm) (e.g., 9.8" min to 25.3" max height) |
| Gear System | Heavy-Duty Steel Rack and Pinion |
| Operation | Manual Crank Handle |
| Mounting | Standard A-Frame bracket; Bolt-on installation |
| Mounting Hole Pattern | 3.5" x 3.5" (89mm x 89mm) - Please verify for your specific A-frame |
| Top Wind Feature | Yes - Allows for 180° swivel to level the trailer on uneven ground |
| Foot | Large, Reinforced Rubber Foot to prevent sinking and provide stability |
| Material / Construction | High-Strength Steel with a Durable Powder-Coated Finish |
| Primary Use | Leveling, Stabilizing, and Lifting Travel Trailers, Campers, and RV A-Frames |
Setup & Leveling: Easily lift the trailer tongue to attach or detach from the tow vehicle and level the RV side-to-side.
Stabilization: Eliminate sway and movement inside the camper when parked.
Maintenance: Safely support the trailer for tire changes, brake work, or other repairs.
This jack is a trusted companion for any RV owner seeking a blend of brute strength, user-friendly operation, and reliable performance.

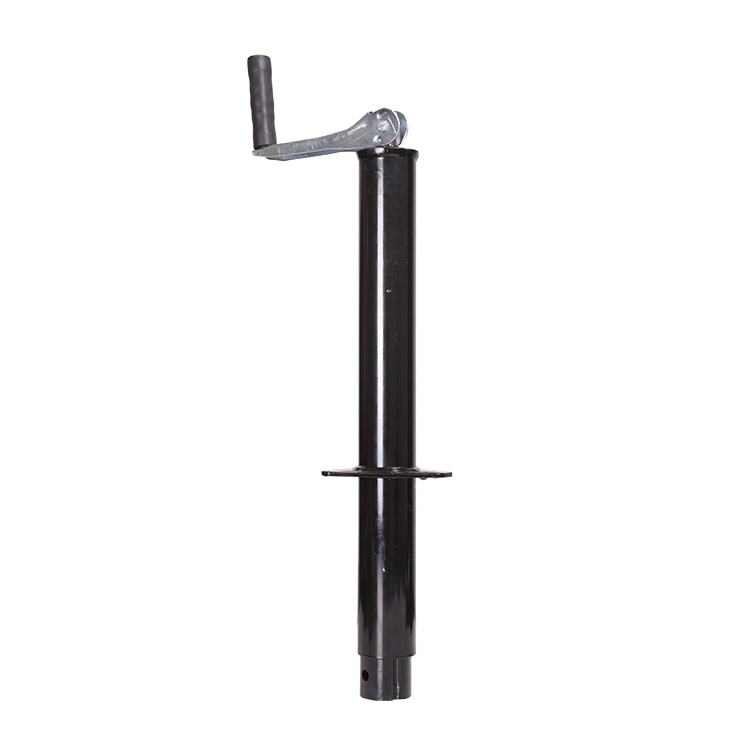

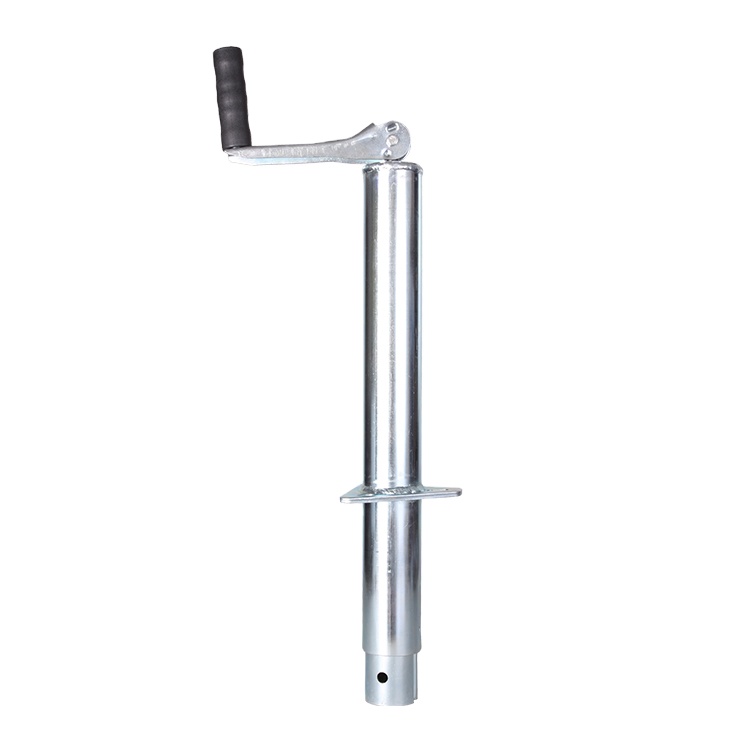

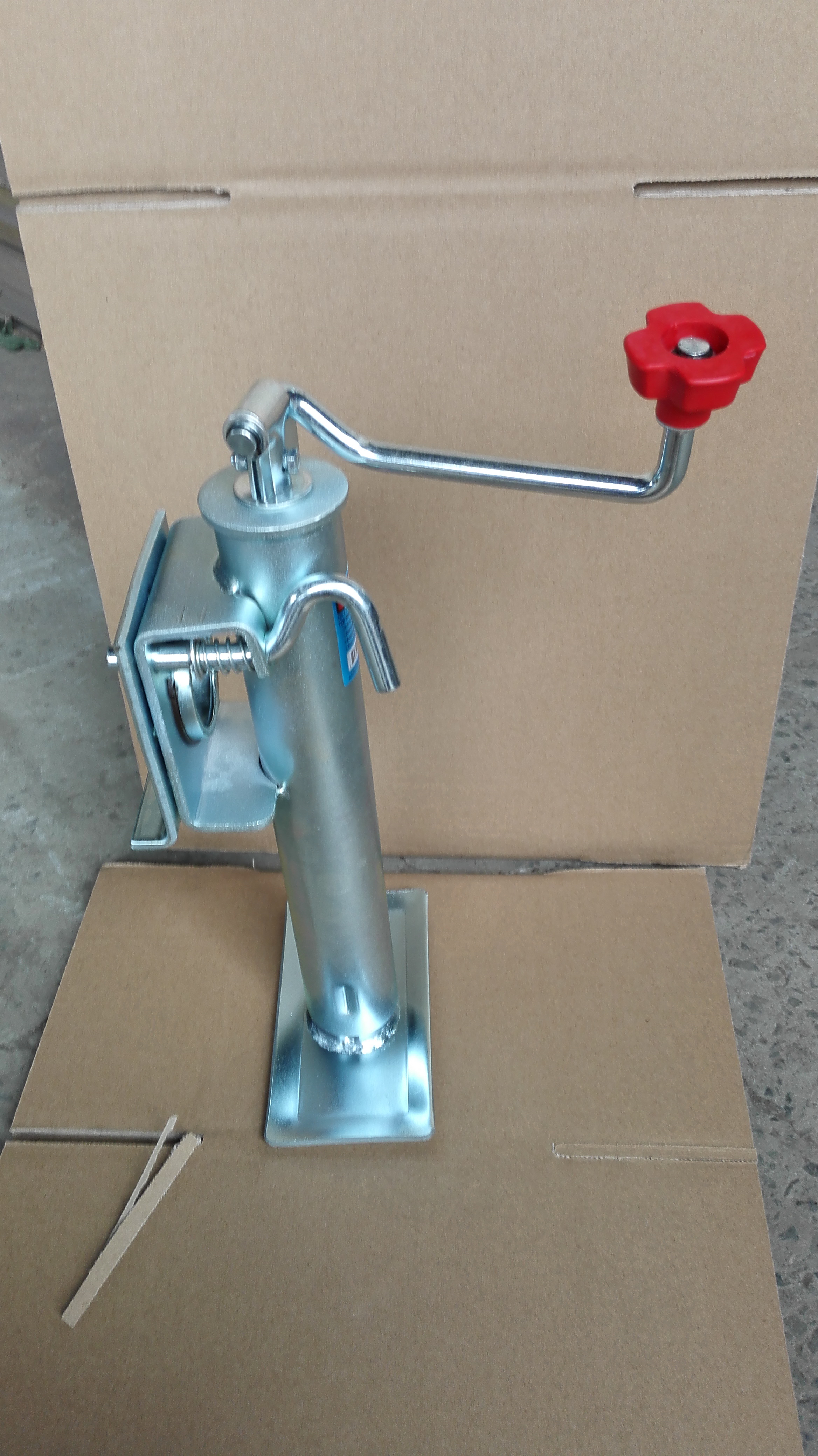

Detailed pictures:
