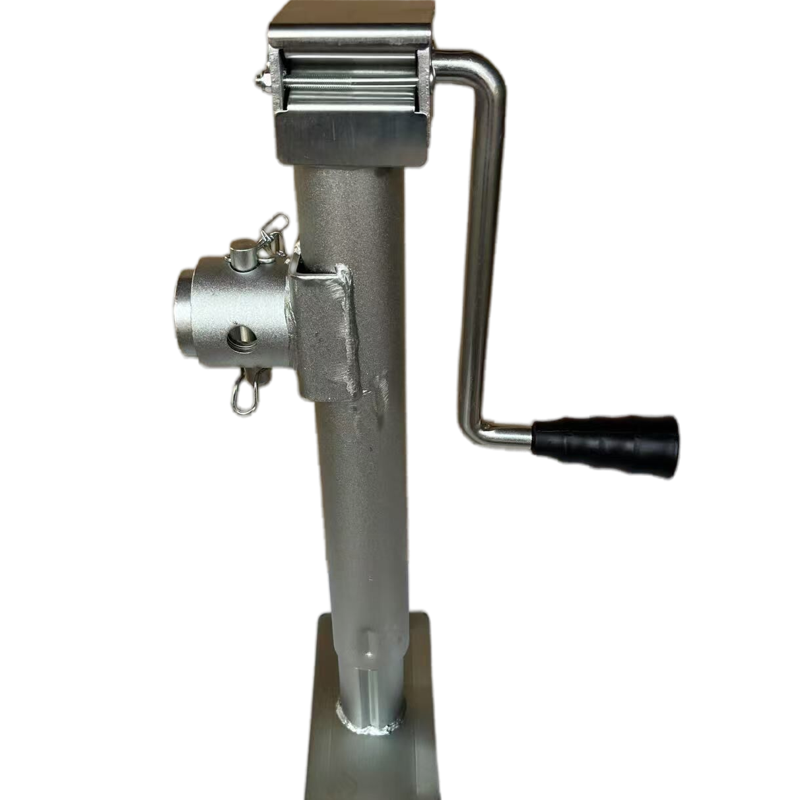

The 5000 Lb. Side Wind Ram Tubular Swivel Jack is a heavy-duty, manually operated lifting solution designed for permanent installation on trailers, RVs, industrial equipment, and stationary machinery. Its defining features are the side-mounted crank handle (Side Wind Ram) for easy operation in tight spaces and a full 360-degree swivel head that allows the footpad to adjust to uneven ground. The jack is supplied with a weld-on pipe mount, offering a secure and customizable installation onto any compatible steel tubing or frame.
This model is engineered for demanding applications where high lifting capacity, durability, and reliable load stability are paramount. The 10-inch vertical travel provides ample range for lifting equipment to the desired height for tire changes, maintenance, or stabilization.
5,000 lb. Load Capacity: Robust construction for handling heavy trailers and equipment.
Side-Wind Mechanism: The crank handle is positioned on the side of the jack body, offering superior ergonomics and clearance compared to top-wind models.
360° Swivel Head: The footpad rotates freely to maintain full contact on sloped or uneven surfaces, preventing slippage.
Tubular Steel Construction: Provides an optimal strength-to-weight ratio for durability.
Weld-on Pipe Mount: Enables a permanent, solid mounting solution for a custom fit. The jack can be easily detached if needed.
10" of Travel: A substantial lifting range to accommodate various ground clearances.
Safety Locking Pin: Includes a pin or mechanism to secure the jack at height for safe maintenance.
1. Capacity: up to 5000Lbs
2. Travel: 15"
3. Finishing: Zinc plated
4. Certificate of ISO/TS16949
5. Competitive price and fast delivery
5000B Trailer Jack Square Tube Side Wind dimension size:
| Model | Capacity | Travel | Handle Type | Mounting Style | Packing | QTY/CTN | N.W | G.W | MEAS |

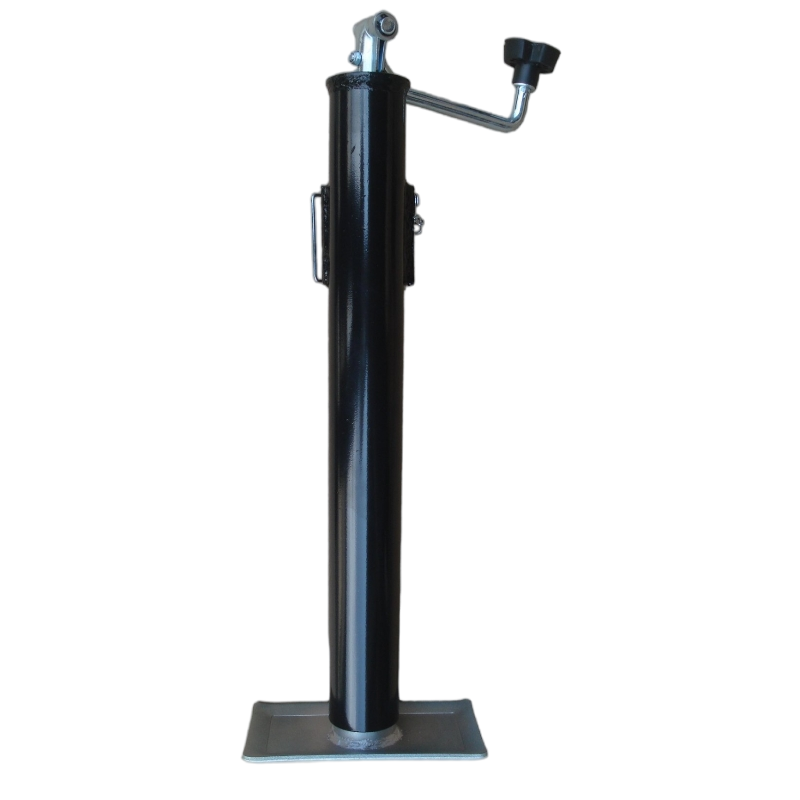

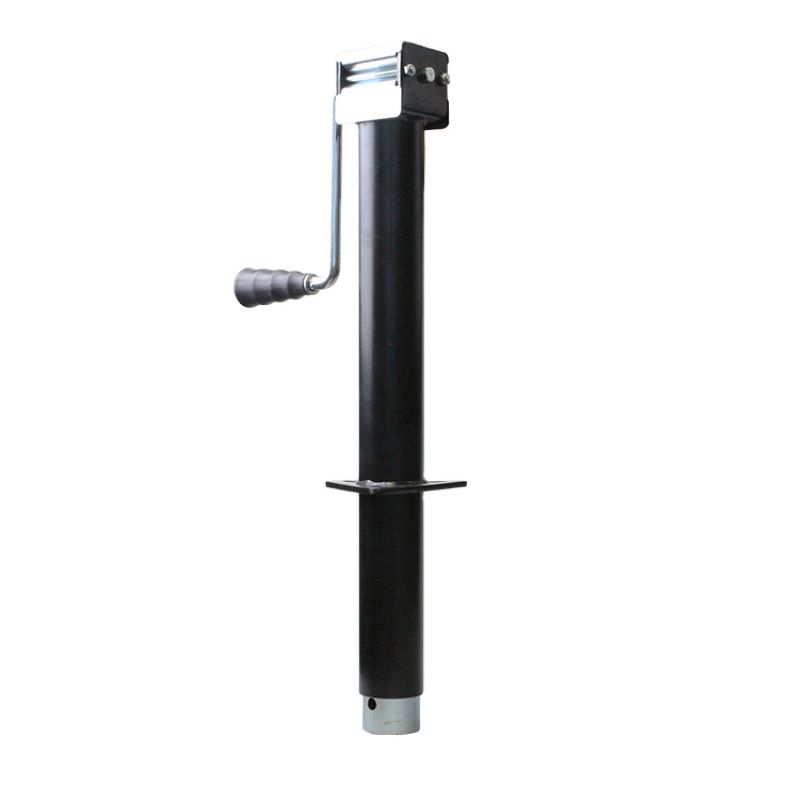

| LH-5000A | 5000LBS/2272KG | 15" | Top | A-Frame | Carton | 1 | 5 | 5.4 | 560*145*210 |
| LH-5000B | 5000LBS/2272KG | 15" | Side | Tube Mount Incl | Carton | 2 | 20 | 24 | 650*300*240 |
| LH-5000C | 5000LBS/2272KG | 15" | Side | Tube Mount Incl | Carton | 2 | 16 | 18 | 650*300*240 |
Alsoifferent type capacity jockey wheel,trailer jack and landing gear for multiple choice:
