A 1500 Lbs 10" Lift Heavy Duty Boat Trailer Swivel Jack with Dual Wheels is an essential piece of equipment designed to provide robust and mobile support for the tongue of a boat trailer. It serves two primary functions:
Static Support & Stabilization: When the trailer is disconnected from the towing vehicle, this jack firmly supports the trailer's weight, preventing the tongue from dropping to the ground. This allows for safe and stable parking, loading, and maintenance.
Maneuverability: The integrated dual-wheel system and swivel feature allow the operator to easily move the trailer by hand for precise positioning in tight spaces, such as a garage or boat ramp parking lot.

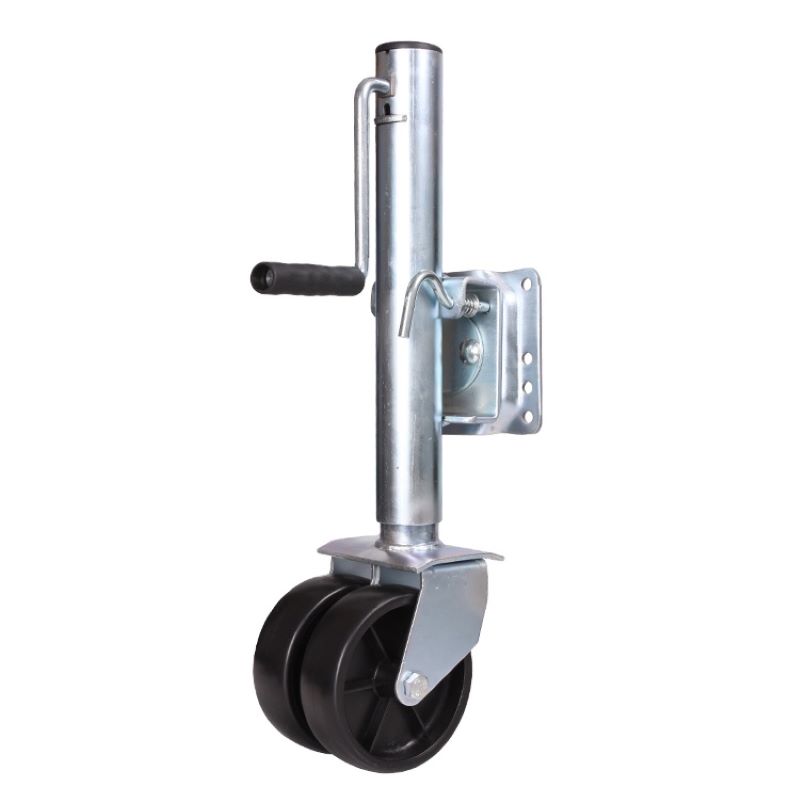

1500 Lbs 10" Lift Heavy Duty Boat Trailer Swivel Jack with Dual Wheels
1.Product Introduction of the 1500 lbs Swivel Trailer Jack 10" Lift Heavy Duty Boat Trailer Jack with Dual Wheels
The 1500 lb Trailer Jack with Swivel Wheel trailer lifting capacity 1500lbs, durable zinc plated coating make good protection for the jockey wheel; double swivel 360 degree rubber wheel make easy & stable using.
2.Specification and Application of the 1500 lbs Swivel Trailer Jack 10" Lift Heavy Duty Boat Trailer Jack with Dual Wheels
Capacity: 1500lbs/682Kg;
Lifting:10'';
Operating Type: side wind;
Finishing: Galvanized;
Mounting Style: bolt on mount;
Packing: Plastic bag, blank carton packed;
1500 lb Bolt on Swivel Trailer Jack to is always on the front of a boat trailer or camper trailer to support the trailers lift , level or adjust, makes more easy and safe.
3.Production Details of the 1500lbs Max Payload caravan and boat trailer jockey wheel
| Parameter | Specification / Description |
|---|---|
| Product Name | Heavy Duty Boat Trailer Swivel Jack with Dual Wheels |
| Maximum Load Capacity (WLL) | 1500 lbs (This is the safe Working Load Limit) |
| Lifting Range | 10 inches (Typically from a minimum height to a maximum height, e.g., 15" to 25") |
| Gear Type | Heavy-Duty Mechanical Rack and Pinion / Geared System |
| Operation | Manual Crank Handle |
| Wheel Type | Dual Wheels (often made from solid rubber or polyurethane) |
| Wheel Size | Common sizes: 10 x 2.5 inches or 10 x 3 inches |
| Swivel Feature | 360-degree swivel with a lock pin or lever to lock the wheels in a straight position for towing. |
| Mounting Type | Standard A-Frame mounting bracket. Typically bolts onto the trailer's tongue. |
| Shaft Type | Round or Square, designed to fit standard trailer couplers. |
| Material & Finish | Heavy-Gauge Steel construction with a Durable Powder Coat or Galvanized finish for rust and corrosion resistance. |
| Primary Applications | Heavy-duty boat trailers, utility trailers, and equipment trailers. |
Also different type capacity jockey wheel,trailer jack and landing gear for multiple choice:
