Our 2-Ton Agricultural Trailer Stub Axle Assembly is a robust, ready-to-install component engineered for durability and reliability in demanding farm environments. Designed specifically for medium-duty trailers used in hauling crops, feed, equipment, and other materials, this complete assembly simplifies maintenance and replacement, ensuring your trailer remains operational with minimal downtime.
This axle stub is a complete hub and spindle unit that bolts directly onto your trailer's chassis, eliminating the need for complex pressing or welding of individual parts. It is the ideal solution for builders and farmers seeking a high-quality, pre-assembled axle solution.

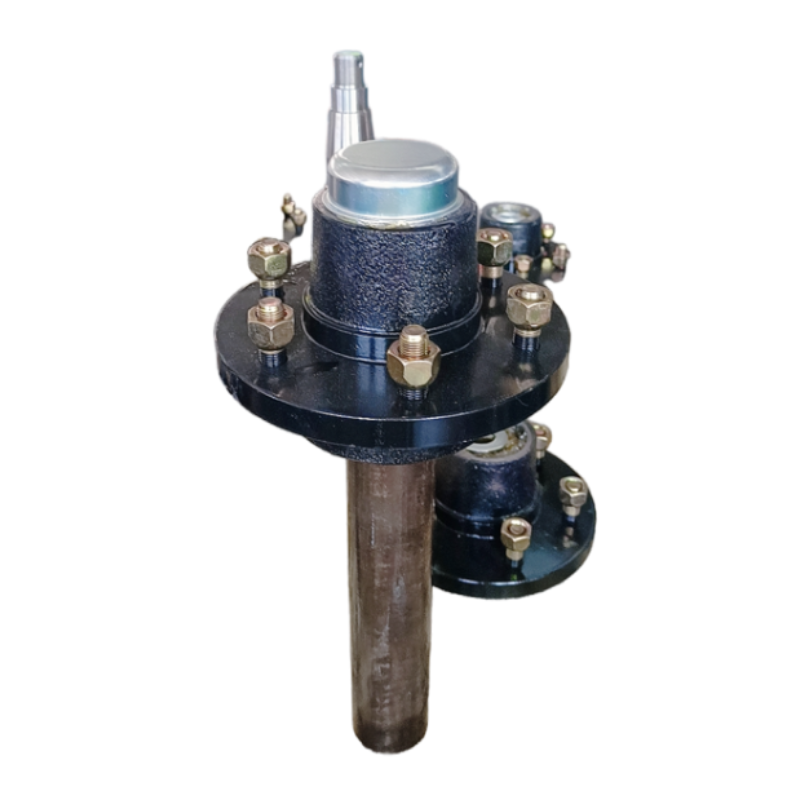

2 ton Agricultural Trailer Stub Axle Assembly
Product DescriptionXiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
1) Full axles&stub axles for agricultural equipment.
2) Track length can be met as per your request.
3) With or without brake is optional.
4) Capacity options: From 1T to 8T.
5) Axle Beam: from 40mm to 80mm, Round or Square is optional.
6) Finish: Black Painting, Galvanized.
7) Axle Factory Certificate: ISO/TS16949.
Key Features & Benefits:
High Load Capacity: Rated for a dynamic load of 2,000 kg (approximately 4,400 lbs) per assembly, making it suitable for a Gross Trailer Mass (GTM) of 2 tons.
Complete & Pre-Assembled: Arrives as a fully assembled unit with stub axle, hub, bearings, seals, and studs. This saves significant time and labor during installation.
Precision Machined from High-Grade Steel: Forged and machined from high-tensile carbon steel, ensuring superior strength, shock resistance, and a long service life.
Excellent Sealing: Features a high-quality rubber seal to effectively keep out dirt, dust, and moisture, while retaining grease for optimal bearing performance and longevity.
Pre-Greased Bearings: Comes pre-lubricated with high-temperature grease, reducing initial setup time and providing immediate protection.
Hot-Dip Galvanized Finish: Offers exceptional corrosion resistance, protecting the assembly from rust caused by weather, fertilizers, and other corrosive agents common in agricultural settings.
Universal Compatibility: Designed to fit a wide range of 2-ton agricultural trailer models and is compatible with standard 4, 5, or 6-stud wheels.
Technical Specifications & Parameters:
| Parameter | Specification |
|---|---|
| Model Name | AG-2T-StubAxle |
| Rated Load Capacity | 2,000 kg (4,400 lbs) per assembly |
| Stub Axle Material | High-Tensile Carbon Steel (Grade C1045/1045) |
| Spindle Diameter | 1-1/16" (or as specified for standard 2-ton bearings) |
| Bolt Hole Circle (PCD) | 4/5/6-Stud patterns available (e.g., 4x100mm, 5x114.3mm, 6x139.7mm) [Please specify required PCD] |
| Bearing Type | Tapered Roller Bearings (Standard: LM67048/LM67010) |
| Seal Type | Integrated Rubber Lip Seal |
| Hub Pilot Diameter | Standard for truck/agricultural wheels (e.g., 110mm) |
| Stud Thread Size | M12 x 1.25 or M14 x 1.5 (Depending on configuration) |
| Surface Treatment | Hot-Dip Galvanized (HDG) |
| Warranty | 12 Months against manufacturing defects |
What's Included in the Box:
1 x Stub Axle Spindle
1 x Hub
2 x Tapered Roller Bearings (Inner & Outer)
1 x Bearing Seal
4/5/6 x Wheel Studs (as per PCD)
1 x Castle Nut and Cotter Pin
Installation Note:
This is a direct bolt-on assembly. Ensure the mounting surface on your trailer is clean, flat, and structurally sound. Torque the mounting bolts and wheel nuts to the manufacturer's specified values. Always perform a final check for secure installation before use.
Ordering Information:
For ordering, please specify your required Bolt Pattern (PCD) and Stud Thread Size. For custom requirements or bulk orders, please contact our sales team for a competitive quote.

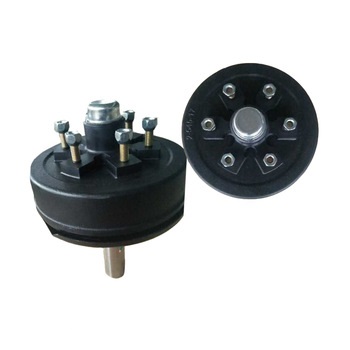

Detailed Photos
