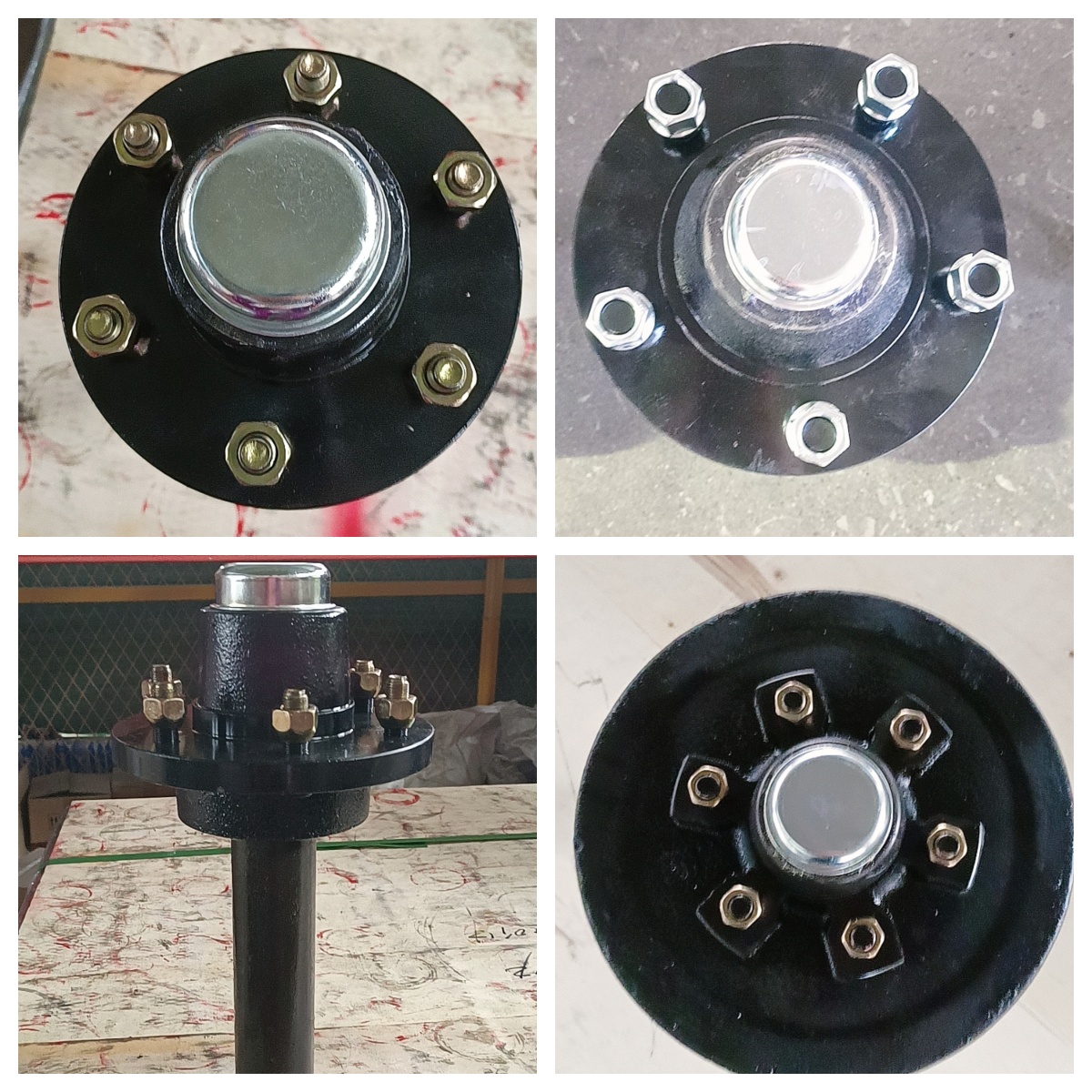

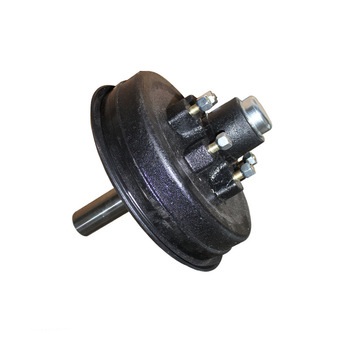

This product is a Light-Duty Stub Spindle designed specifically for the demanding yet small-scale needs of agricultural and all-terrain vehicle (ATV) trailers. These axles are the critical linkage component that connects the trailer's wheels and hubs to the axle beam, enabling smooth rotation and reliable load-bearing.
Built for robustness and simplicity, this stub axle is ideal for utility trailers used in farming, homesteading, hunting, and landscaping applications. It is commonly used on small single-axle trailers that transport equipment, feed, firewood, or small livestock. Its design prioritizes strength-to-weight ratio and compatibility with standard, easy-to-source bearing and hub assemblies.
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
1) Full axles&stub axles for agricultural equipment.
2) Track length can be met as per your request.
2) With or without brake is optional.
3) Capacity options: From 1T to 8T.
4) Axle Beam: from 40mm to 80mm, Round or Square is optional.
5) Finish: Black Painting, Galvanized.
6) Axle Factory Certificate: ISO/TS16949.
Product Parameters
| Parameter | Specification | Notes |
|---|---|---|
| Application | Light-Duty Agricultural/ATV Trailers | Ideal for utility, landscaping, and small farm trailers. |
| Load Capacity (per spindle) | 1,200 - 1,500 lbs (545 - 680 kg) | Gross trailer weight (GTW) should be calculated accordingly. Always include a safety margin. |
| Spindle Type | Straight, "A" Style Stub Spindle | A common and cost-effective design for light-duty applications. |
| Spindle Length | 4.5" - 5.5" (114 - 140 mm) | Measured from the weld step to the end of the threads. |
| Spindle Diameter (Bearing Surfaces) | 1.0" - 1.2" (25.4 - 30.5 mm) | Must match the inner race of the standard tapered roller bearings (e.g., L44643/L44610). |
| Spindle Threads | 9/16"-18 UNF or 5/8"-18 UNF | Standard fine thread for securing the castle nut and cotter pin. |
| Kingpin Angle | 0° (Fixed Spindle) | Standard for non-steering axles. The trailer's pivot is at the hitch. |
| Material | High-Carbon Steel (e.g., 1045/1050) or Alloy Steel (e.g., 4140) | Heat-treated for enhanced strength and durability. 4140 is preferred for higher stress. |
| Finish | Painted (Black/OEM Color) or Zinc Plated | Provides corrosion resistance for outdoor and agricultural environments. |
| Required Companion Parts | • Tapered Roller Bearing Kit • 4- or 5-Bolt Hub & Drum • Castle Nut & Cotter Pin • Grease Cap & Dust Seal |
Compatibility with these components is essential. |
| Common Bolt Pattern (Hub) | 4 on 4" (4x101.6 mm) or 5 on 4.5" (5x114.3 mm) | Must match the trailer's wheels. |
Rugged & Reliable: Manufactured from quality steel to withstand the bumps and shocks of off-road and farm use.
Easy Maintenance: Uses standard, readily available bearing and seal kits, making field service straightforward.
Cost-Effective: Provides the essential strength needed for light-duty applications without unnecessary weight or complexity.
Versatile: The perfect solution for building or repairing small trailers for a wide range of agricultural and recreational tasks.
