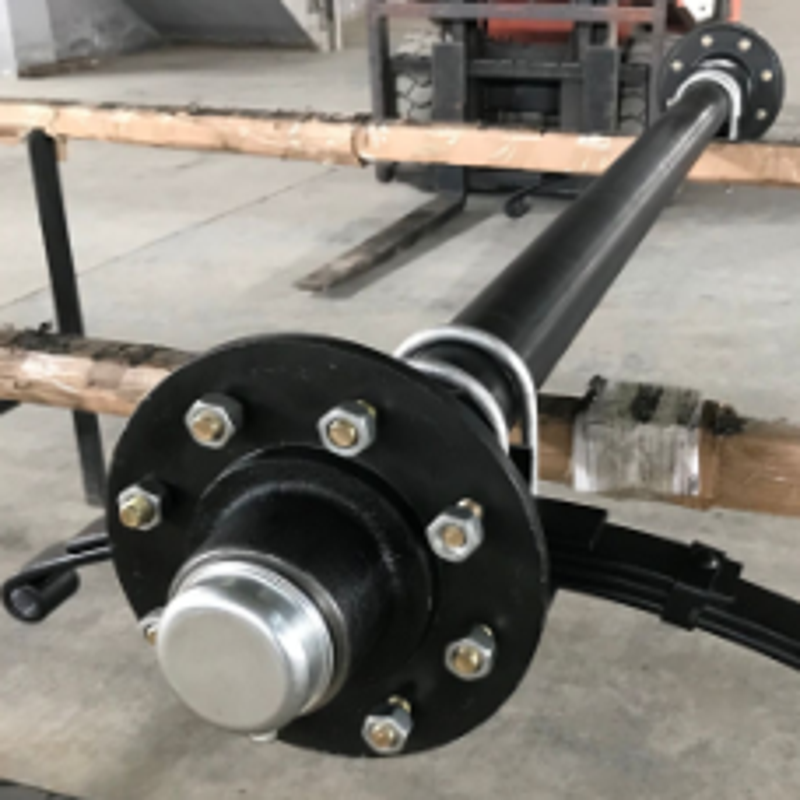

The Heavy Duty 7000lbs Left/Right Trailer Brake 12 Electric Brake Axle is designed for durability and versatility, ideal for small to medium utility trailers, boat trailers, cargo haulers, and agricultural equipment. Available in both braked and non-braked configurations, this axle ensures reliable performance under loads up to 5,200 lbs. Constructed from high-strength steel and featuring a robust leaf spring suspension system, it guarantees stability, corrosion resistance, and easy installation. The optional electric or drum brake system enhances safety for heavier loads or steep terrain applications.
Key Features:
High Load Capacity: Rated for 5,200 lbs, suitable for light-duty applications.
Dual Configuration: Choose between braked (safety-compliant) or non-braked versions.
Leaf Spring Design: Ensures smooth load distribution and shock absorption.
Corrosion Protection: Painted or galvanized finish options for extended lifespan.
Wide Compatibility: Adaptable to 14"-15" wheels and common hub bolt patterns.
Product Parameters
| Specification | Details |
|---|---|
| Load Capacity | 5,200 lbs (Single Axle) |
| Axle Type | Straight, Drop, or Custom Camber (Optional) |
| Spring Type | Multi-Leaf Spring (3-5 Leaves, Heat-Treated Steel) |
| Hub Bolt Pattern | 5×4.5", 5×5", 6×5.5", or Custom (Upon Request) |
| Axle Tube Diameter | 2.5" OD, 0.25" Wall Thickness (High-Strength Carbon Steel) |
| Bearing Size | #104 (L44649) or #105 (L68149) |

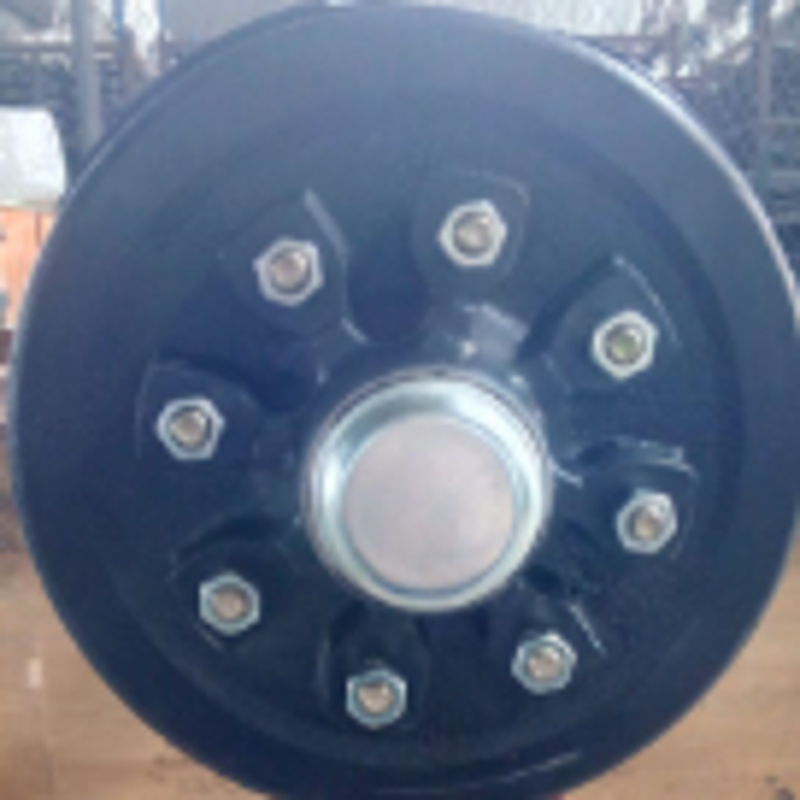

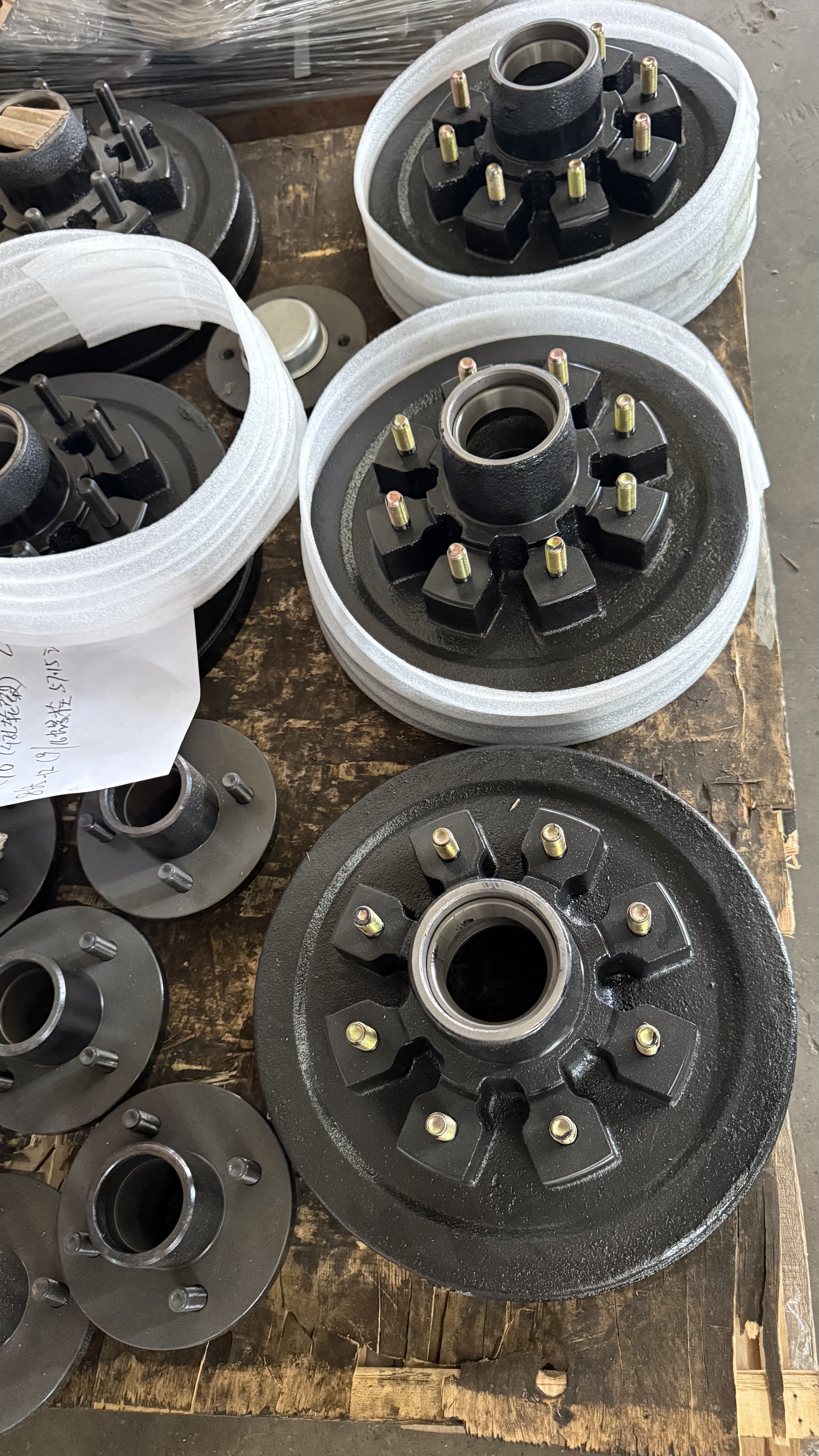

| Brake Options | None / Electric Brake (12" Drum) / Hydraulic Drum Brake |
| Surface Treatment | Painted (Black/Red) or Hot-Dip Galvanized |
| Wheel Compatibility | 14" or 15" Wheels (Hub-Centric) |
| Spring Center Distance | 34", 36", or Customizable (Standard) |

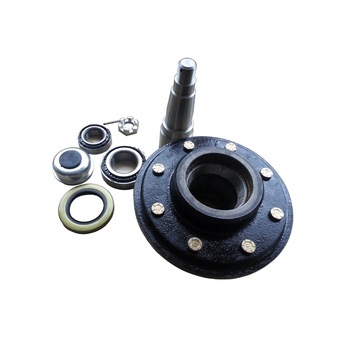

| Optional Accessories | U-Bolt Kits, Hub Assemblies, Brake Wiring Kits, Spindles |
| Applications | Utility Trailers, Boat Trailers, Landscape Equipment, Small Cargo Haulers |
| Certifications | DOT/SAE Compliant (Braked Version) |
| Package Dimensions | 78" (Length) × 12" (Width) × 8" (Height) / Weight: ~85 lbs (Unassembled) |
Agrucultural Axle Specification
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Brake lever position(mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| L2 | D1×D2 | Inner/Outer | ||||||
| LHAH01-AG01 | 1 | 1600 | ◊ 40 | no | no | 4×M14×Φ130×84 | 30205-20207 | 35 |
| LHAH01-AG02 | 1.5 | 1600 | ◊ 45/ο45 | no | no | 6×1/2″×Φ139.7 | LM68149/10 LM12749/10 | |
| LHAH02-AG01 | 2 | 1600 | ◊ 50/ο50 | no | no | 6×1/2″×Φ139.7 | 25580/20 15123/15245 | |
| LHAD03-AG01B | 3 | 1600 | ◊ 50 | 470 | 255×60 | 6×M18×Φ205×160 | 30206-30209 | 65 |
| LHAH05-AG01 | 5 | 1600 | ◊ 60 | no | no | 6×M18×Φ205×160 | 30207-30211 | 60 |
| LHAD05-AG01B | 5 | 1600 | ◊ 60 | 470 | 255×60 | 6×M18×Φ205×160 | 30208-30211 | 100 |
| LHAH06-AG01 | 6 | 1600 | ◊ 70 | no | no | 6×M18×Φ205×160 | 30208-30213 | 85 |
| LHAD06-AG01B | 6 | 1600 | ◊ 70 | 470 | 300×60 | 6×M18×Φ205×160 | 30208-30213 | 120 |
