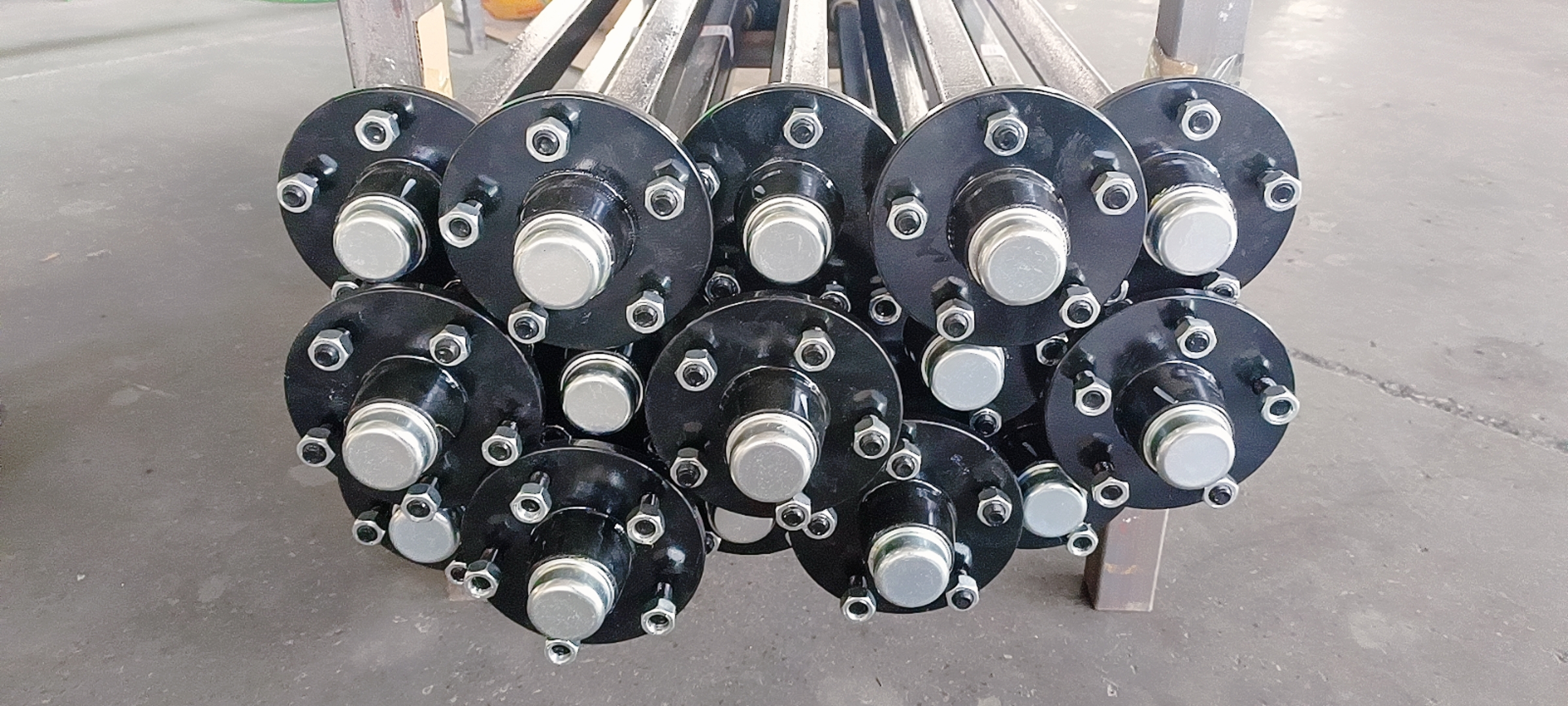

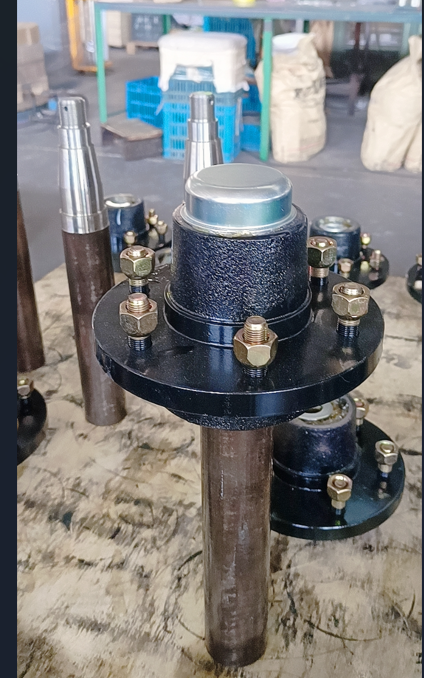

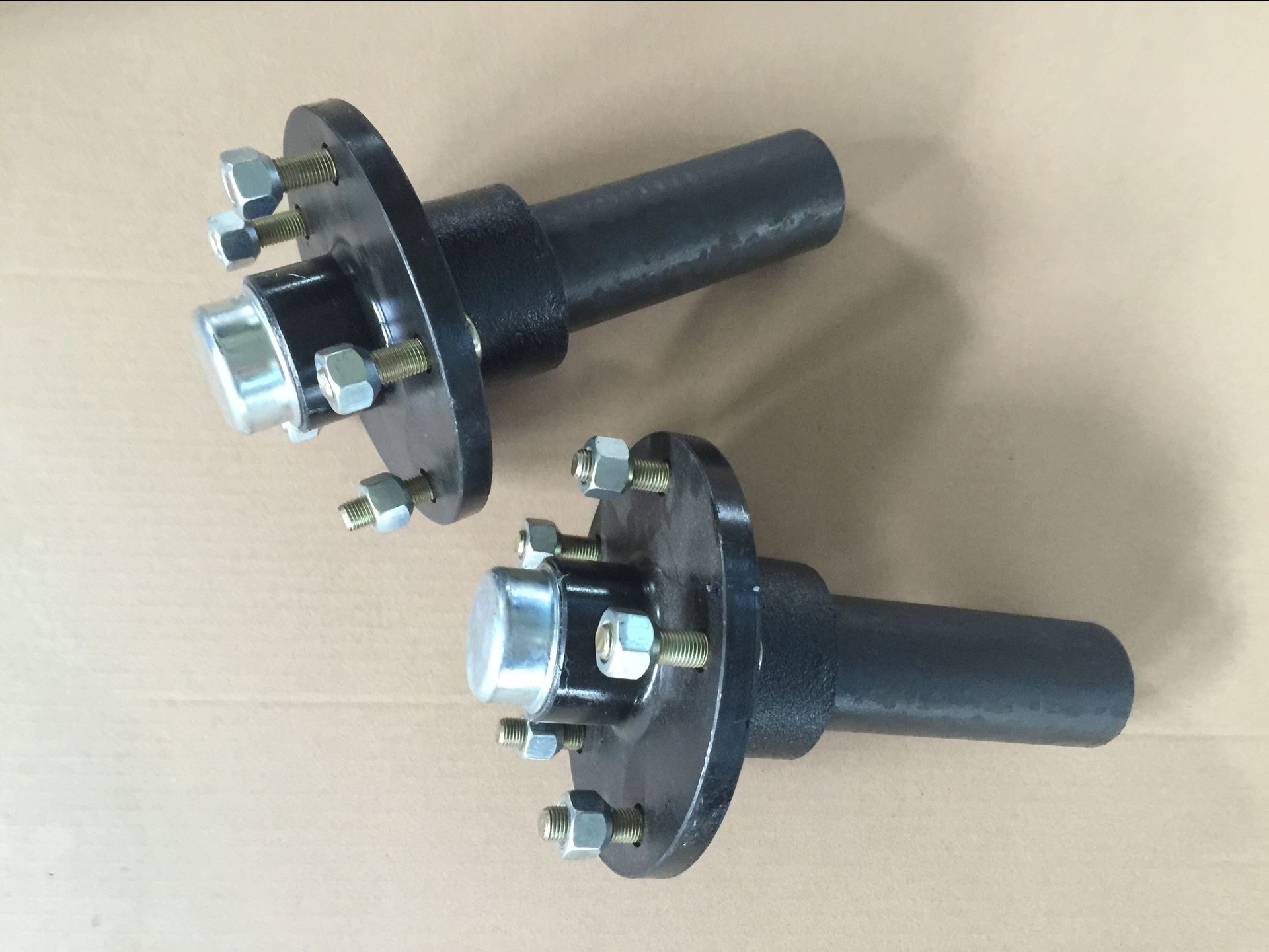

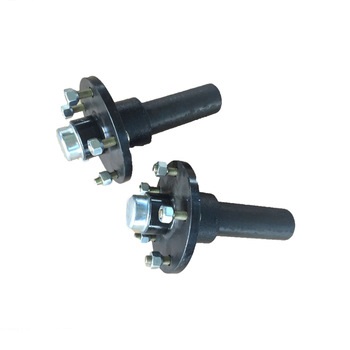

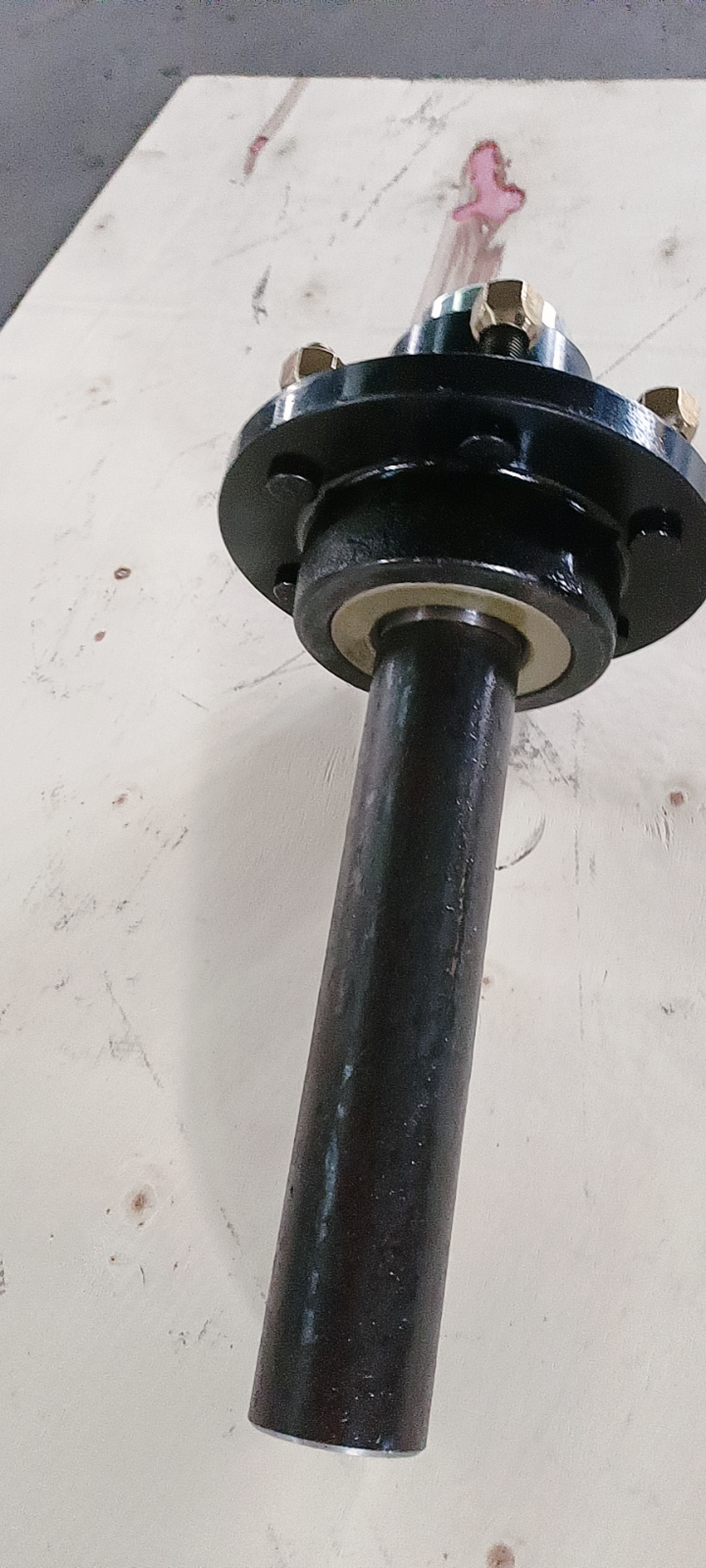

This product is a complete, ready-to-install Idler Hub Assembly and Axle Kit designed for single-axle trailers with a 2500-lb (approx. 1134 kg) Gross Axle Weight Rating (GAWR). As an "idler" or "non-driven" hub, it is specifically intended for the non-brake axle on a tandem trailer setup or for simple, single-axle utility trailers that do not require braking.

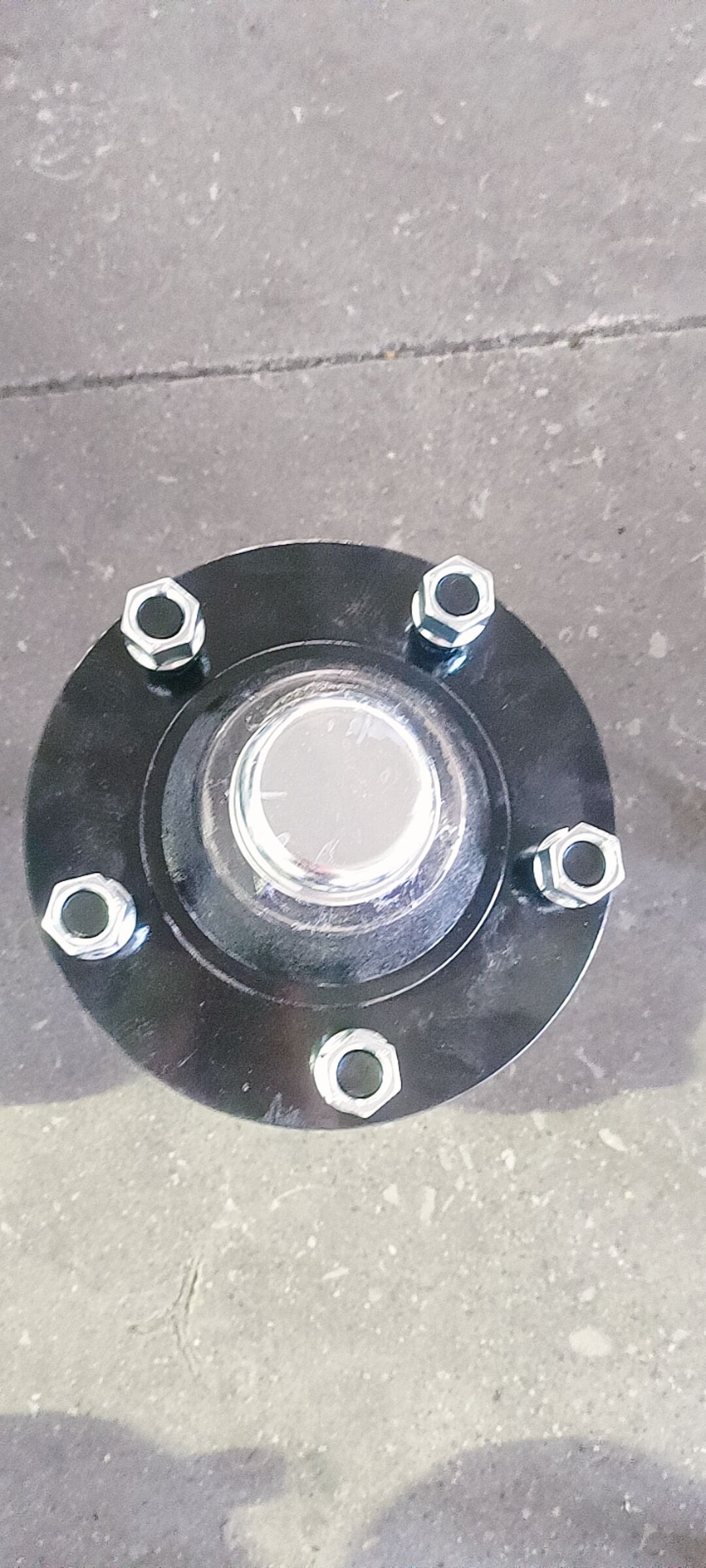

The core of this assembly is the 5-bolt wheel stud pattern with a 4.5-inch Pitch Circle Diameter (PCD), a common standard for many small to mid-size utility trailers, boat trailers, and equipment trailers. This kit typically includes all necessary components to mount a wheel and tire onto a straight trailer axle tube, providing a reliable and durable solution for medium-duty applications.
Complete Kit: Includes hub, bearing, seal, and mounting hardware for easy installation.
Common Bolt Pattern: 5 on 4.5" bolt pattern fits a wide range of standard trailer wheels.
Idler Function: Ideal for the non-brake axle in tandem configurations or for non-braked trailers.
Durability: Designed for a 2500-lb axle rating, ensuring robust performance for its class.
Primary Applications: Utility trailers, boat trailers, small equipment trailers, and landscaping trailers.
| Parameter | Specification | Notes |
|---|---|---|
| Gross Axle Weight Rating (GAWR) | 2500 lbs (1134 kg) | The maximum weight the axle is designed to carry. |
| Hub Type | Idler (Non-Brake) | For free-rolling wheels without a braking system. |
| Wheel Bolt Pattern (PCD) | 5 on 4.5 inches (5 x 114.3 mm) | Fits wheels with a 5-lug pattern and a 4.5-inch circle diameter. |
| Axle Spindle Type | 1-1/16" (1.0625") | A common spindle size for this weight class. |
| Bearing & Seal | Pre-assembled with standard tapered roller bearings (e.g., LM67010/LM67048) and companion seal. | Ensures long life and minimal maintenance. |
| Hub Pilot Diameter | Typically 3.25" | The centering surface for the trailer wheel. |
| Lug Nut Style | Acorn Seat (Tapered) | Requires corresponding acorn-style lug nuts on the wheel. |
| Kit Inclusions | Hub, Bearings (Inner & Outer), Race, Seal, Cotter Pin, Castle Nut, Dust Cap, Grease. | A complete assembly package. May vary by manufacturer. |
