The 2-ton agricultural trailer stub axle assembly is a heavy-duty, complete axle solution designed for robust performance in demanding farming and hauling applications. It forms the core of a trailer's running gear, providing a reliable connection between the wheels and the trailer frame to safely carry loads up to 2 metric tonnes (approximately 4,400 lbs).

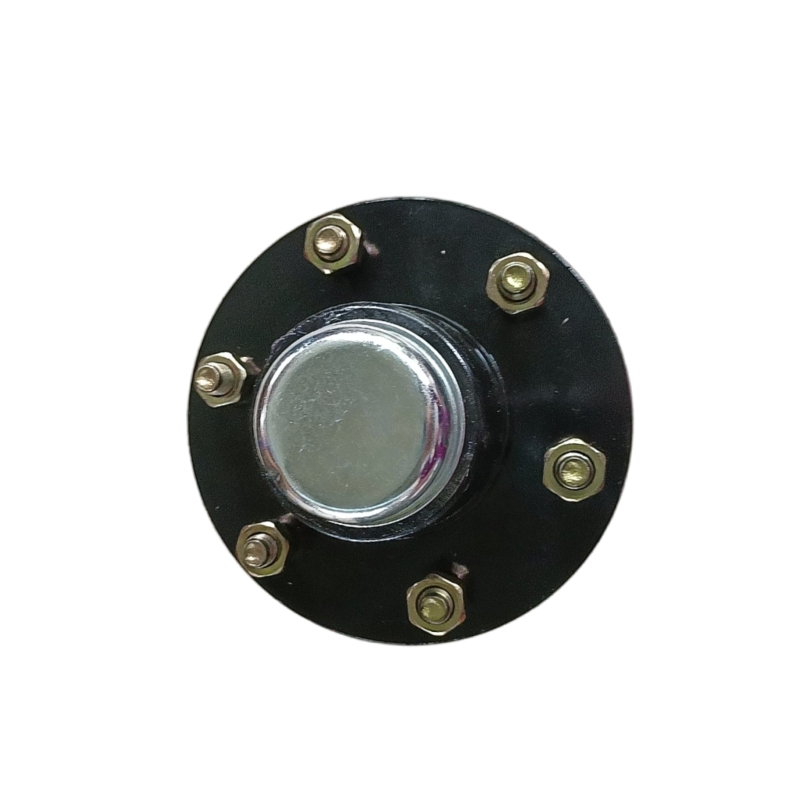

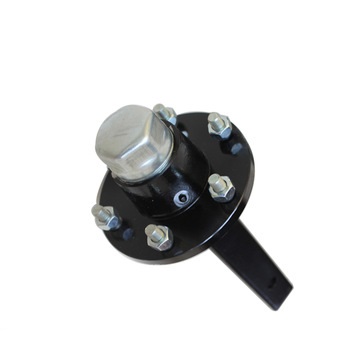

2 ton Agricultural Trailer Stub Axle Assembly
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
1) Full axles&stub axles for agricultural equipment.
2) Track length can be met as per your request.

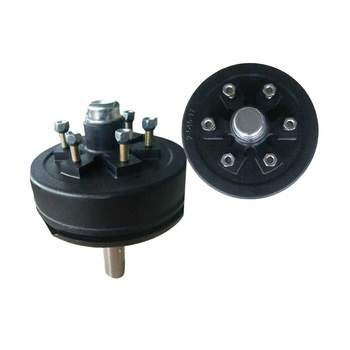

3) With or without brake is optional.
4) Capacity options: From 1T to 8T.
5) Axle Beam: from 40mm to 80mm, Round or Square is optional.
6) Finish: Black Painting, Galvanized.
7) Axle Factory Certificate: ISO/TS16949.
Product Parameters
Stub Axle Specification:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| LHSA01-AG01 | 1 | 200 | ◊40 | 4×M14×Φ130×84 | 30205-20207 | 15 |
| LHSA03-AG01 | 3 | 200 | ◊50 | 6×M18×Φ250×160 | 30206-30209 | 20 |
| LHSA05-AG01 | 5 | 200 | ◊60 | 6×M18×Φ250×160 | 30207-30211 | 32 |
| LHSA06-AG01 | 6 | 200 | ◊70 | 6×M18×Φ250×160 | 30208-30213 | 43 |
| LHSA08-AG01 | 8 | 300 | ◊80 | 8×M18×Φ250×160 | 32211-30215 | 65 |
Agrucultural Axle Specification
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Brake lever position(mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| L2 | D1×D2 | Inner/Outer | ||||||
| LHAH01-AG01 | 1 | 1600 | ◊ 40 | no | no | 4×M14×Φ130×84 | 30205-20207 | 35 |
| LHAH01-AG02 | 1.5 | 1600 | ◊ 45/ο45 | no | no | 6×1/2″×Φ139.7 | LM68149/10 LM12749/10 | |
| LHAH02-AG01 | 2 | 1600 | ◊ 50/ο50 | no | no | 6×1/2″×Φ139.7 | 25580/20 15123/15245 | |
| LHAD03-AG01B | 3 | 1600 | ◊ 50 | 470 | 255×60 | 6×M18×Φ205×160 | 30206-30209 | 65 |
| LHAH05-AG01 | 5 | 1600 | ◊ 60 | no | no | 6×M18×Φ205×160 | 30207-30211 | 60 |
| LHAD05-AG01B | 5 | 1600 | ◊ 60 | 470 | 255×60 | 6×M18×Φ205×160 | 30208-30211 | 100 |
| LHAH06-AG01 | 6 | 1600 | ◊ 70 | no | no | 6×M18×Φ205×160 | 30208-30213 | 85 |
| LHAD06-AG01B | 6 | 1600 | ◊ 70 | 470 | 300×60 | 6×M18×Φ205×160 | 30208-30213 | 120 |
