This product is a high-performance trailer axle engineered to meet the rigorous standards of modern heavy-duty transport. Designed as a "BPW German Type" axle, it embodies the renowned quality, precision, and reliability associated with leading German engineering in the commercial vehicle industry.
With a massive axle load capacity of 13,000 kg (approximately 28,660 lbs), this axle is built to handle the most demanding applications in semi-trailer operations. It is manufactured with high-strength materials and undergoes strict quality control to ensure exceptional durability, fatigue resistance, and operational safety. Key features often include a high-quality, maintenance-free hub system, efficient drum brake assembly, and a robust spindle and beam design.

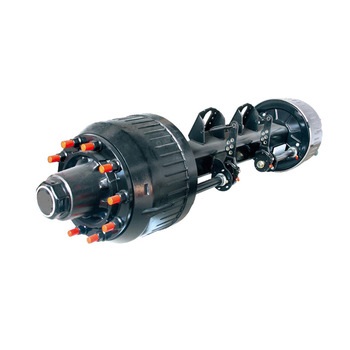

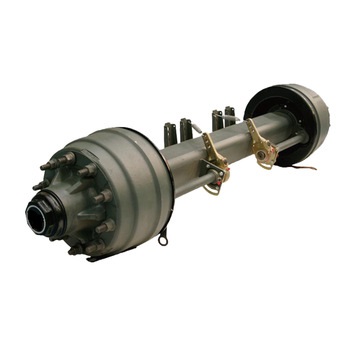

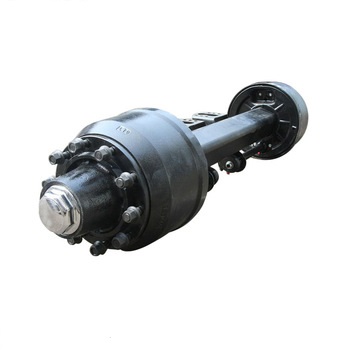

High Quality Axle Load 13000kg BPW German Type Trailer Axle For Semi Trailer
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
1.Product Introduction of the High Quality Axle Load 13000kg BPW German Type Trailer Axle For Semi Trailer
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
Product Parameters:
2.Product Parameter of the High Quality Axle Load 13000kg BPW German Type Trailer Axle For Semi Trailer:
| Parameter | Specification |
|---|---|
| Product Type | Trailer Axle for Semi-Trailer |
| Design Standard | BPW German Type / Design |
| Axle Load Capacity | 13,000 kg (28,660 lbs) |
| Application | Heavy-Duty Semi-Trailers (e.g., flatbeds, curtain-siders, logistics, container transport) |
| Beam Type | Rectangular or I-Section (for high strength-to-weight ratio) |
| Spindle / Stub | Forged, high-strength steel, heat-treated for superior durability |
| Hub & Bearing | Maintenance-free or low-maintenance unit with pre-adjusted bearings. |
| Brake System | Type: Cam Drum Brake Brake Drum Size: Typically 16.5" x 7" or 16.5" x 8" (419.1mm x 177.8/203.2mm) Compatibility: Standard S-cam type, compatible with common foundation brakes. |
| Wheel Mounting | 10-stud hub-piloted disc wheel mounting. Common Stud Size: M22 x 1.5 (e.g., 10-Hole on 335mm or 11.25-inch Bolt Circle - Must be confirmed with supplier). |
| Finish / Protection | Shot-blasted and primed, or optionally painted/epoxy coated for corrosion resistance. |
| Key Features | - Heavy-Duty Capacity: Designed for maximum legal loads and harsh operating conditions. - Proven Design: Based on the reliable and efficient BPW axle geometry. - High-Quality Components: Ensures long service life and reliability. - Interchangeability: Designed to be a direct replacement for axles of similar specification. |
Important Note: For procurement and installation, it is critical to confirm the exact specifications with the supplier, including track width (e.g., 1,850mm, 2,040mm, etc.), spring center distance, brake chamber type, and the precise wheel fixing details (P.C.D. and stud size).
