1. BPW Trailer Axles – The European Benchmark for Innovation & Safety
Synonymous with premium quality and cutting-edge engineering, German-made BPW axles set the standard for performance and longevity.
Key Features:
Rated Capacities: Available in 12T, 14T, and 16T configurations.
Precision Hub System: The maintenance-friendly unit uses a sealed, pre-adjusted bearing system for extended service intervals.
Advanced Corrosion Protection: Multi-stage cathodic dip coating and paint process ensure maximum durability against rust and weathering.
Telematics Readiness: Often compatible with BPW's idem telematics for real-time temperature and load monitoring.
2. Fuwa Trailer Axles – The Global Leader in Value & Reliability
As one of the world's largest axle manufacturers, Chinese brand Fuwa offers an exceptional balance of robust performance, proven reliability, and outstanding value.
Key Features:
Rated Capacities: Widely available in 12T, 13T, 14T, 16T, and other specifications to suit various regional standards.
Proven Hub & Spindle Design: A simple, robust, and serviceable design known for its strength and ease of maintenance.
Cost-Effectiveness: Provides exceptional strength and reliability at a highly competitive price point.
Trailer axle suspension heavy beam thickness 12, 14, 16t BPW Fuhua trailer axle
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.

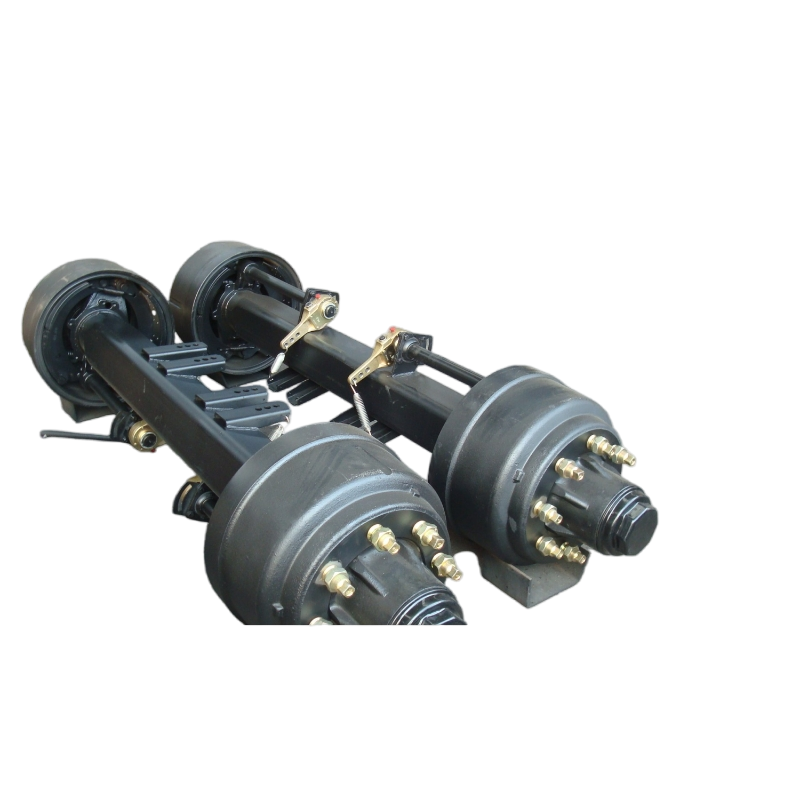

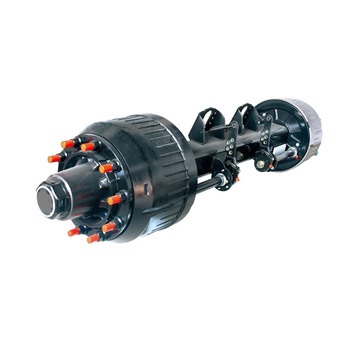

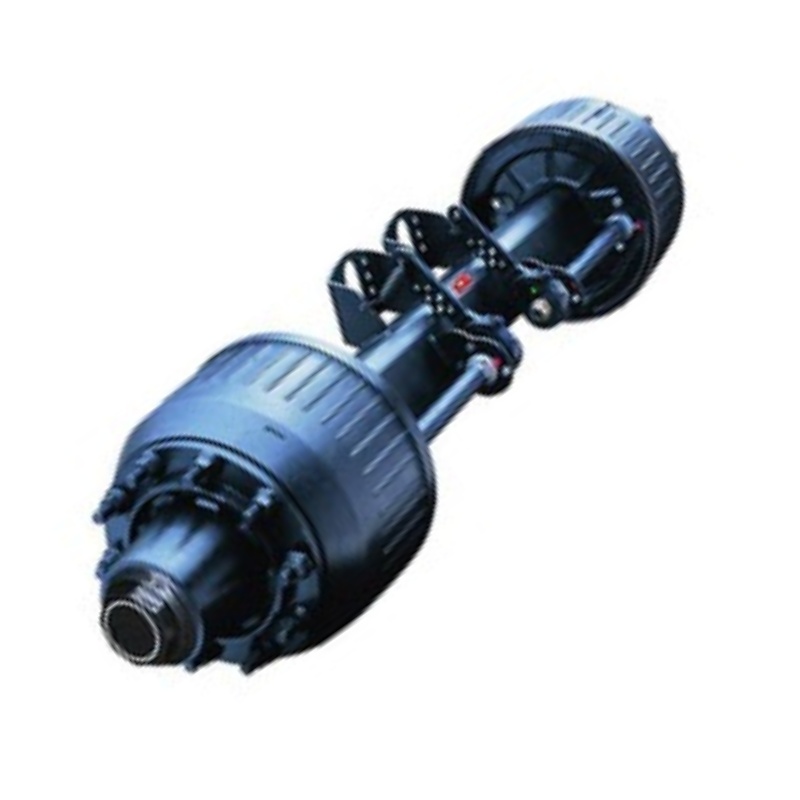

1.Product Introduction of the Trailer axle suspension heavy beam thickness 12, 14, 16t BPW Fuhua trailer axle
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
Product Parameters
2.Product Parameter of the Trailer axle suspension heavy beam thickness 12, 14, 16t BPW Fuhua trailer axle
| (Parameter) | (Specification) |
|---|---|
| (Series) | American Series 13T Inboard Axle |
| (Track Length) | 1840 mm |
| (Beam Size) | 150mm (Square 150mm) |
| (Brake) | 420×180 mm |
| (Wheel Fixing) | 10-M22×1.5 ISO ,10 |
| (PCD) | 335 mm |
| (Bearing) | HM518445/10 |
| (Wheel Rim) | 7.50V-20 |
Remark: Other track length and ABS & automatic slack adjuster is available.
