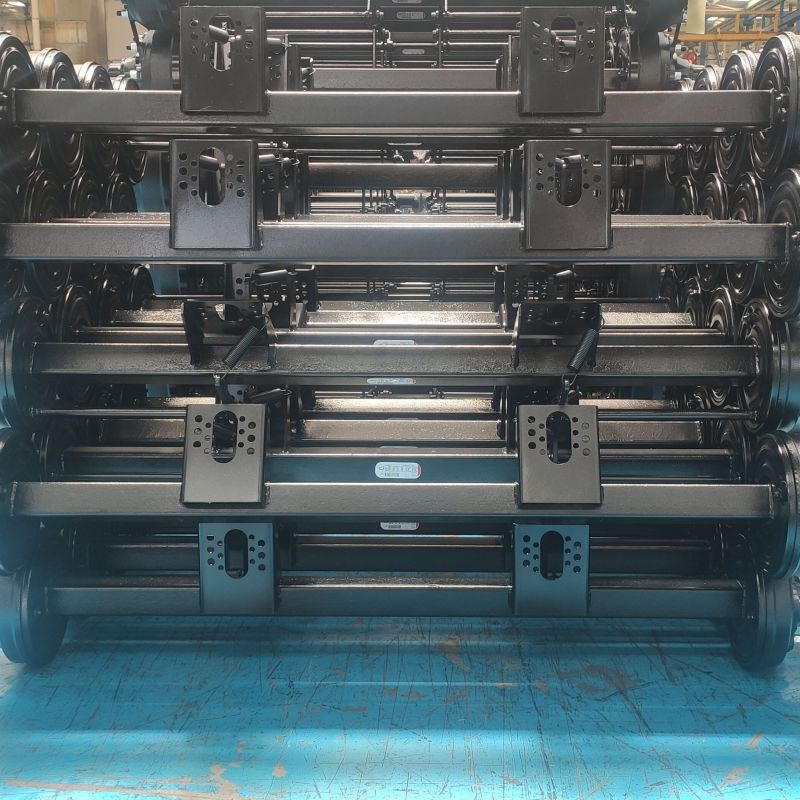

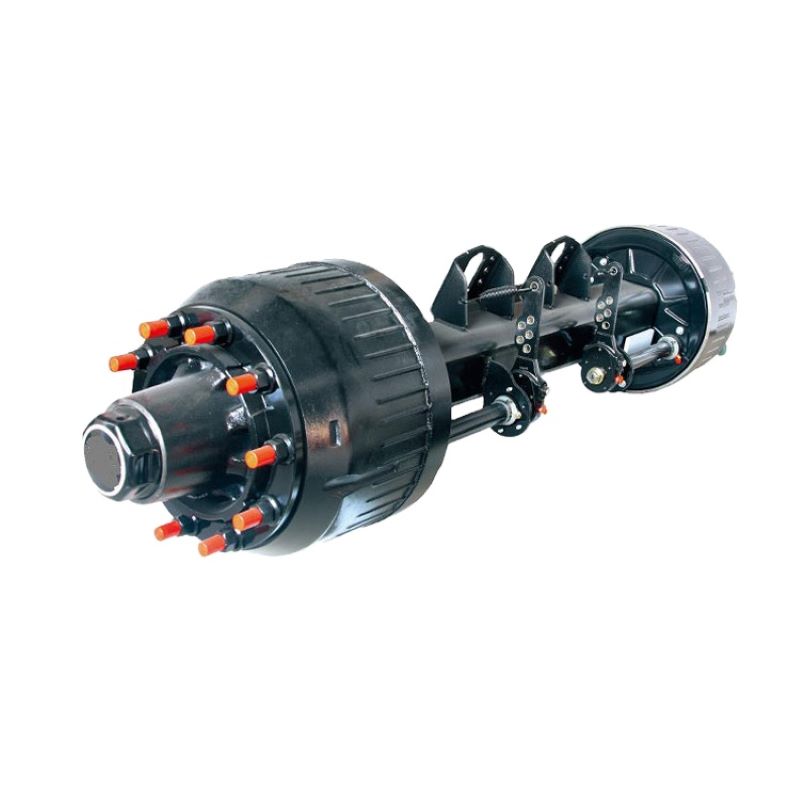

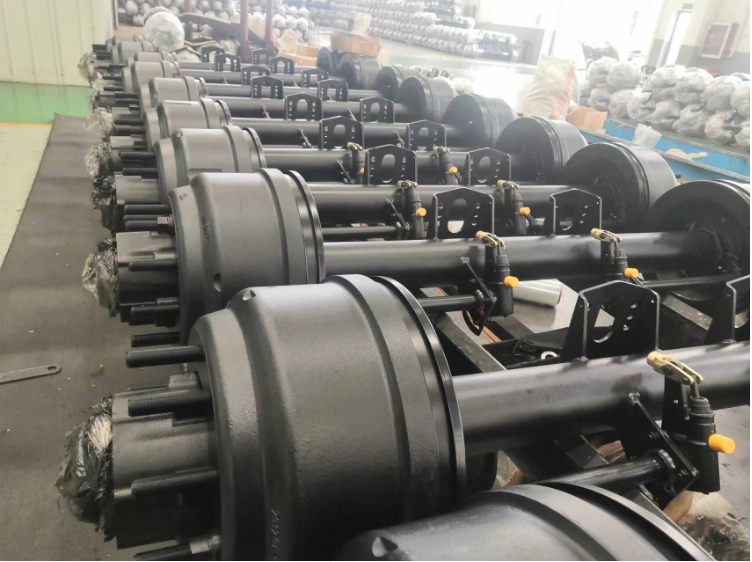

13 Ton Semi Trailer Axle Double Chamber Sring - Brake Axle with ABS

1. Capacity: 10-20T;
2. Application: Tractors, Small Trailer & Agricultural Trailer & Boat trailer;
3. Optional Track Length Available;
4. Optional ABS and Automatic Slack Adjuster Available;
5. Optional S-cam Length;

Get Instant QuoteContact Us

Product Details

Capacity (Ton)	Track (mm)	Axle Beam (mm)	Center Distance of Chamber (mm)	Brake Spec. (mm)	Wheel Fixing (mm)	Bearing	Weight (Kg)
	L2		L3		D1×D2	Inner/Outer
LHAD10-E01	1840	127	422	420x180	10xM22x335x281	33118/33213	360
LHAD12-E01	1840	150	422	420x180	10xM22x335x281	33118/33213	360
LHAD12-E02	1840	150	377	420x180	10xM22x335x281	33118/33213	360
LHAD14-E01	1840	150	429	420x200	10xM22x335x281	33119/33215	360
LHAD16-E01	1850	150	243	420x200	10xM22x335x281	32222/32314	360
LHAD18-E01	1850	150	263	420x200	10xM22x335x281	32222/32314	360
LHAD08-A01	1840	127/150	455	S420x150	8xM20x285x221	33215/33213	320
LHAD11-A01	1960	127/150	670	S420x190	10xM22x285.75221	218248/218248	347
LHAD13-A01	1840	127/150	388	S420x180	10xM22x335x281	HM518445/10	362
LHAD10-A02	1840	127/150	388	S420x180	8xM20x285x281	HM518445/10	365
LHAD14-A01	1840	127/150	348	S420x180	10xM22x285221	HM518445/10	408
LHAD15-A01	1850	127/150	396	S420x180	10xM22x285281	HM518445/10	382
LHAD16-A01	1850	127/150	354	S420x180	10xM22x285281	HM220149/10	425
LHAD20-A01	1850	150	354	S420x220	10xM22x285281	32222/HM518445/10	460
The track can be met according to customers' request.
