Both the 13 Ton Fuwa Axle and the American-style Round/Square Tube Axle are critical chassis components for semi-trailers, designed to bear the trailer's load and facilitate braking. However, they represent different design philosophies, originating from distinct market needs and engineering standards.
Key Features & Specifications:
Load Capacity: 13 Metric Tons (approx. 28,660 lbs) per axle.
Beam Type: Typically a Forged I-Beam or Double I-Beam. This design provides exceptional strength and resistance to bending and torsional stress.
Spindle: A large, robust spindle designed to handle heavy loads and harsh road conditions.
Braking System: Usually compatible with CAM Brake systems. This is a simple, powerful, and mechanically reliable system, though slightly less efficient than disc brakes.
Hub & Drum: Often uses a one-piece cast brake drum and a large hub assembly.
Bearings: Utilizes large, heavy-duty tapered roller bearings.
13 Ton Fuwa Axle Semi Trailer Axle & America Roulnd Tube Square Tube Axle

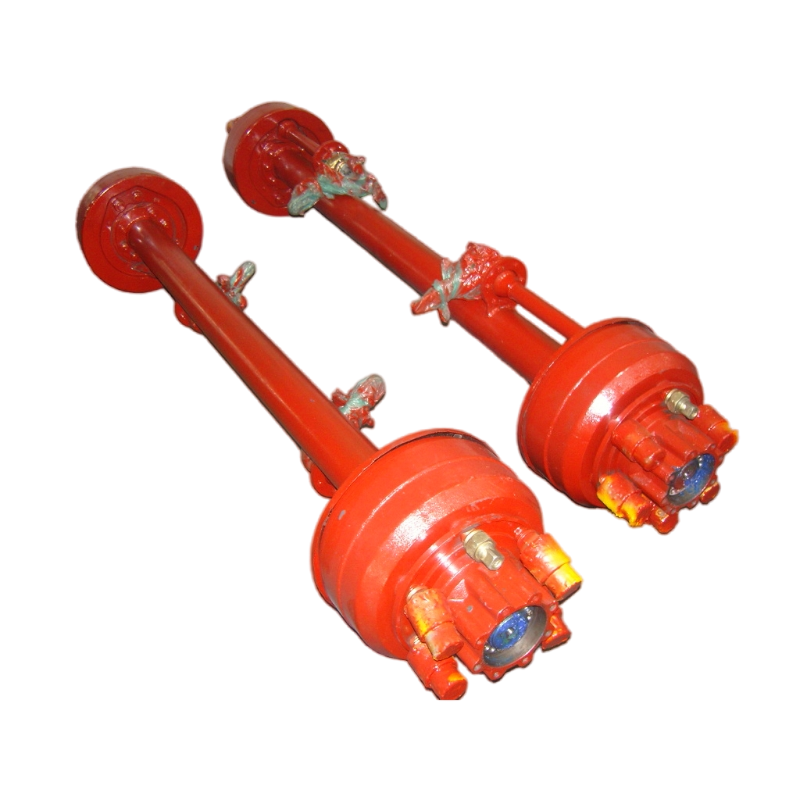

Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.

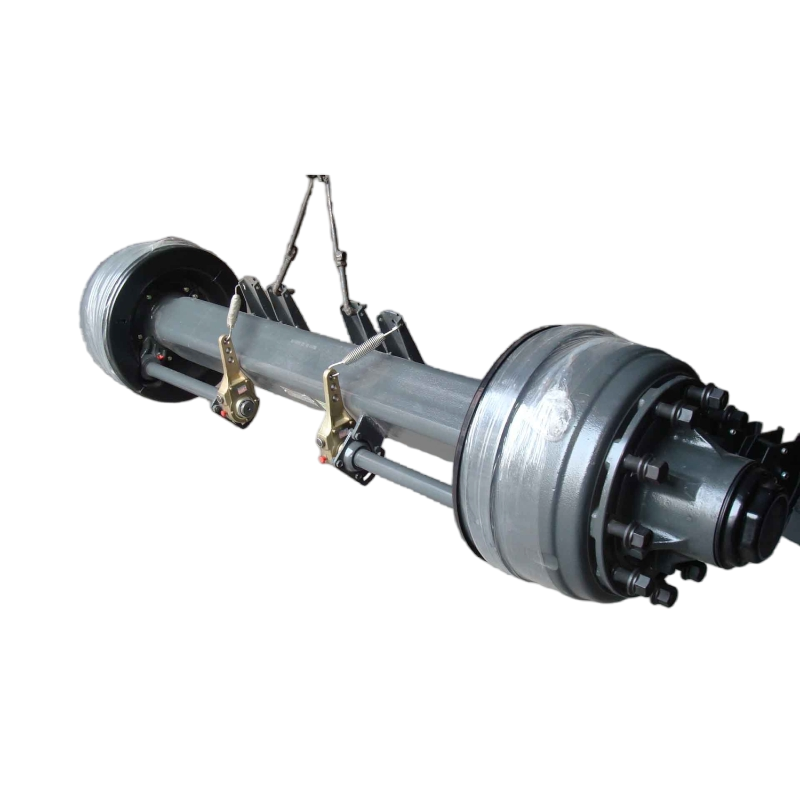

1.Product Introduction of the 13 Ton Fuwa Axle Semi Trailer Axle & America Roulnd Tube Square Tube Axle
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
Product Parameters
2.Product Parameter of the 13 Ton Fuwa Axle Semi Trailer Axle & America Roulnd Tube Square Tube Axle
| (Parameter) | (Specification) |
|---|---|
| (Series) | American Series 13T Inboard Axle |
| (Track Length) | 1840 mm |
| (Beam Size) | 150mm (Square 150mm) |
| (Brake) | 420×180 mm |
| (Wheel Fixing) | 10-M22×1.5 ISO ,10 |
| (PCD) | 335 mm |
| (Bearing) | HM518445/10 |
| (Wheel Rim) | 7.50V-20 |
Remark: Other track length and ABS & automatic slack adjuster is available.
