1.Product Introduction of the 10 Bolts Double Wheel Hub Trailer Axle
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
Semi Trailer Axle Fuwa Type -12 Ton 14 Ton 16 Ton Heavy Duty Trailer Axle
1.Product Introduction of the 10 Bolts Double Wheel Hub Trailer Axle
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
2.Product Parameter of the 10 Bolts Double Wheel Hub Trailer Axle
American series 13T inboard axle:
1) Track length: 1840mm;
2) Beam size: Square 150mm;
3) Brake: 420*180mm;
4) Wheel fixing: 10-M22*1.5 ISO, 10 holes;
5) PCD: 335mm;
6) Bearing: HM518445/10;
7) Recommended wheel rim: 7.50V-20
German Drum Series Axle & America Drum Series Axle for your choose:
| Model | Max.capacity (T) |
Track(mm) | Brake(mm) | Axle beam | P.C.D(mm) | Total length (mm) |
| Lahoo-10.5 | 10.5 | 1820 | 420x180 | φ127 | 285.75 | 2165 |
| Lahoo-13 | 13 | 1840 | 420x180 | 150x150 | 285.75 | 2185 |
| Lahoo-15 | 15 | 1850 | 420x180 | 150x150 | 335 | 2185 |
| Lahoo-16 | 16 | 1850 | 420x220 | 150x150 | 335 | 2185 |
| Lahoo-14 | 14 | 1840 | 420x200 | 150x150 | 281 | 2175 |
Remark: Other track length and ABS & automatic slack adjuster is available.

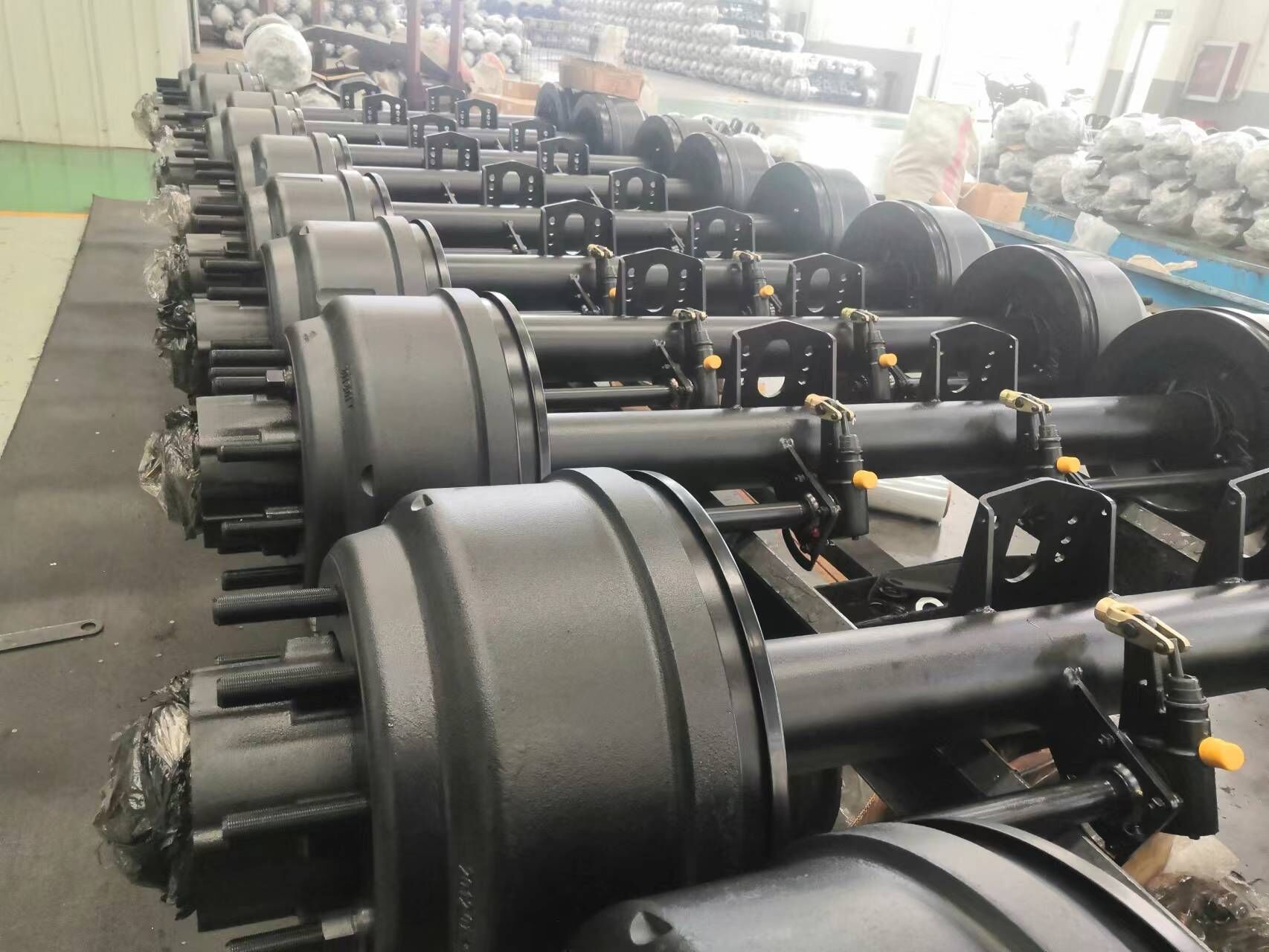

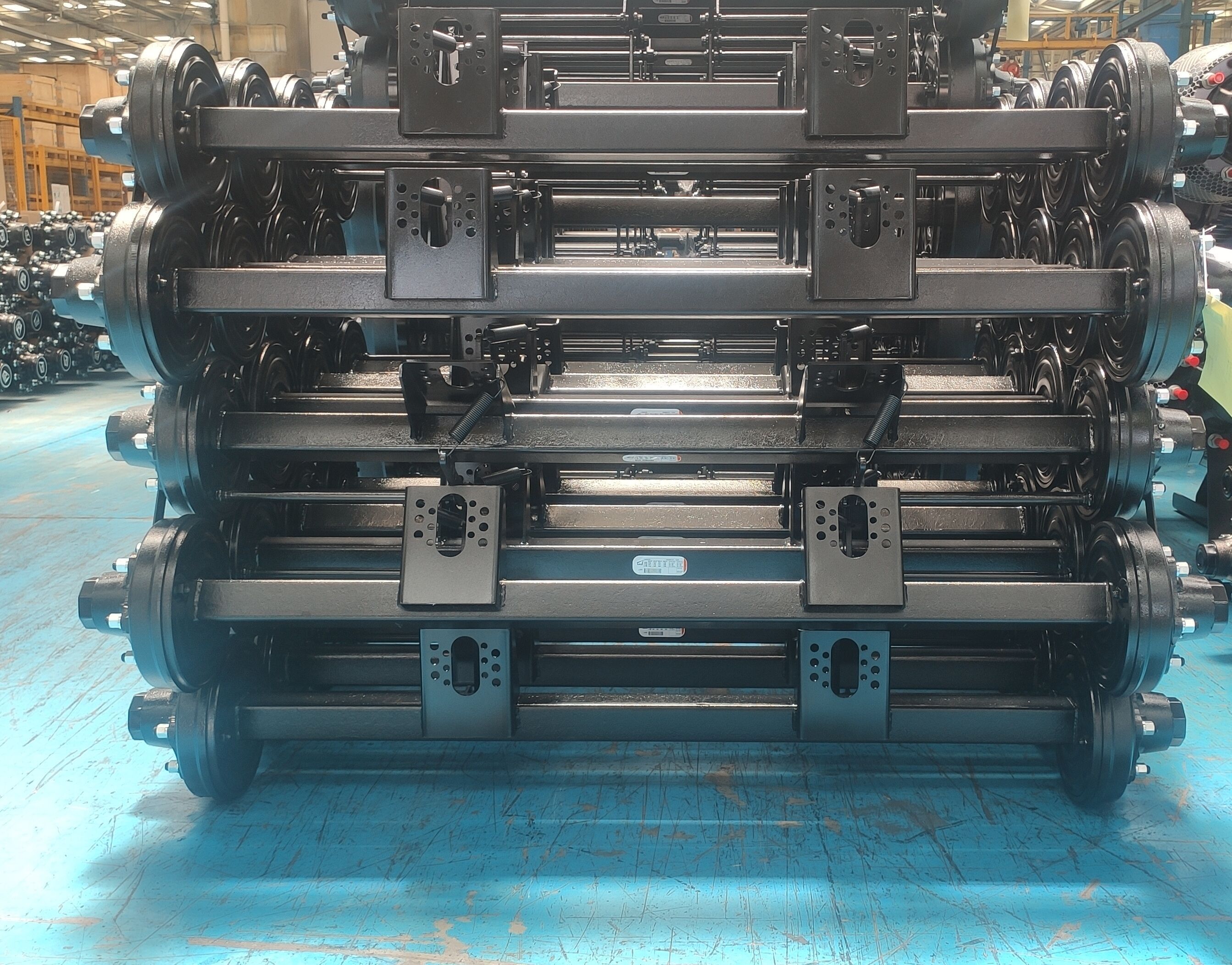

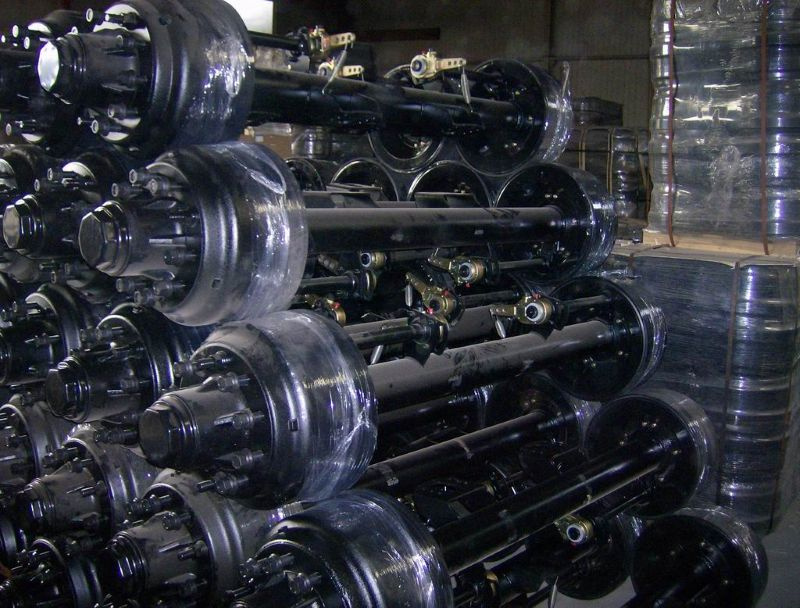

Detailed Photos
