Fuwa Landing Gear, also known as container support legs or container jacks, is a heavy-duty lifting and stabilization system designed specifically for handling shipping containers. These robust legs are commonly mounted on container chassis (trailers) or used as standalone support equipment to safely raise, lower, and secure containers during transport, loading, unloading, and storage operations.
A Semi Trailer Landing Gear and Container Lifting Jack are critical components in the transportation and logistics industry, designed to ensure the safe handling, stabilization, and lifting of semi-trailers and shipping containers. Below is a detailed overview of their functions, types, and applications:
The landing gear (also called landing legs or trailer legs) is a mechanical support system mounted on the front end of a semi-trailer. Its primary purpose is to stabilize the trailer when it is disconnected from the tractor unit.
1. Gear box inside and gear box outside with JOST, FUWA & Holland type for semi trailer.
2. The main capacity includes 9 ton, 11 ton, 25 ton, 28 ton, 30 ton, etc. Also 3 ton adn 6 ton landing gears are available.
3. Competitive price and hight quality.
4. Certificate: ISO/TS 16949
5. Delivery time: Within 20 days after receipt of TT deposit or LC.
Product Parameters
Gearbox inside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lifting Speed/turn | Weight (Kg) | Remarks | |
| max. | min. | ||||||
| LHLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| LHLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| LHLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 |
single-side operation |
Gearbox outside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lifting Speed/turn | Weight (Kg) | Remarks | |
| max. | min. | ||||||
| LHLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| LHLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
|
LHLO-30 |
14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| LHLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |

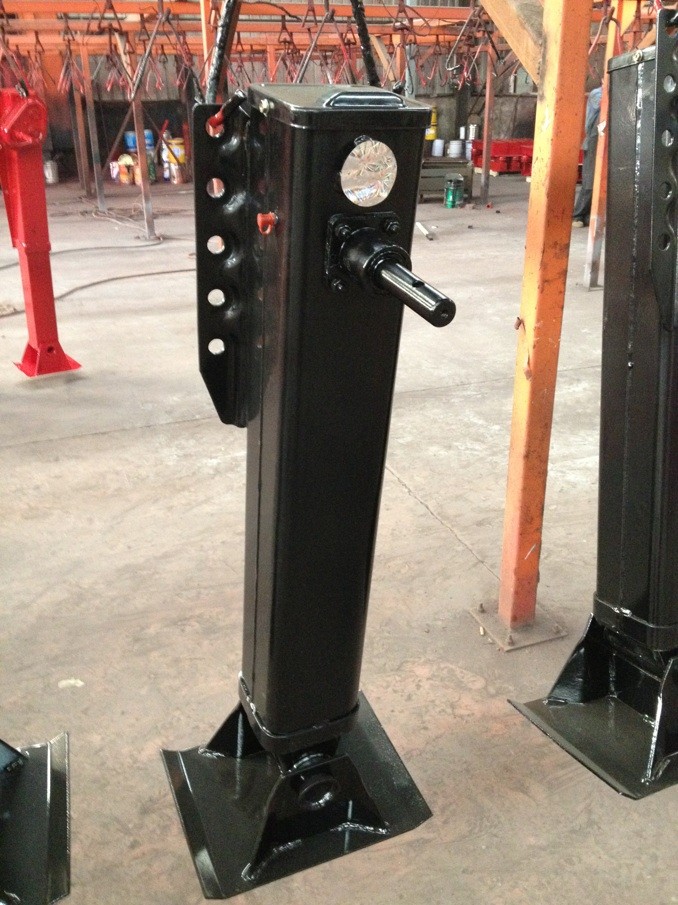

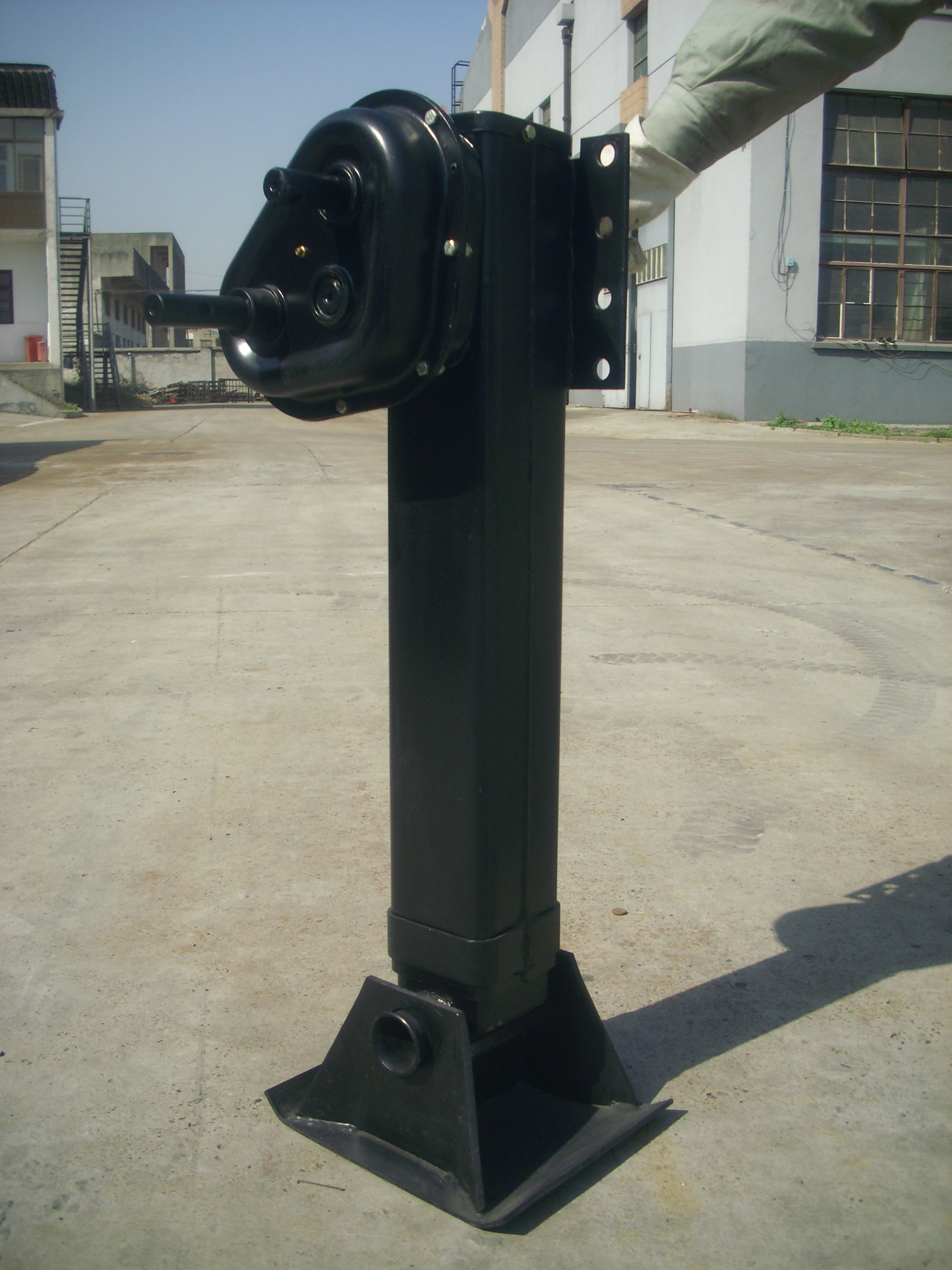

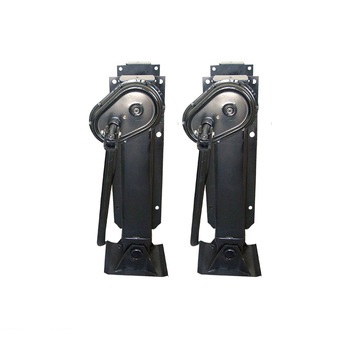

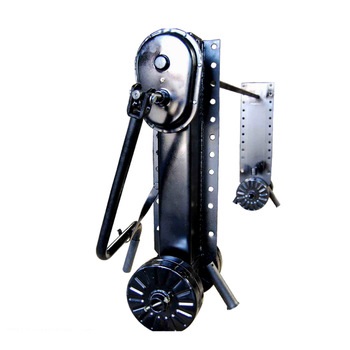

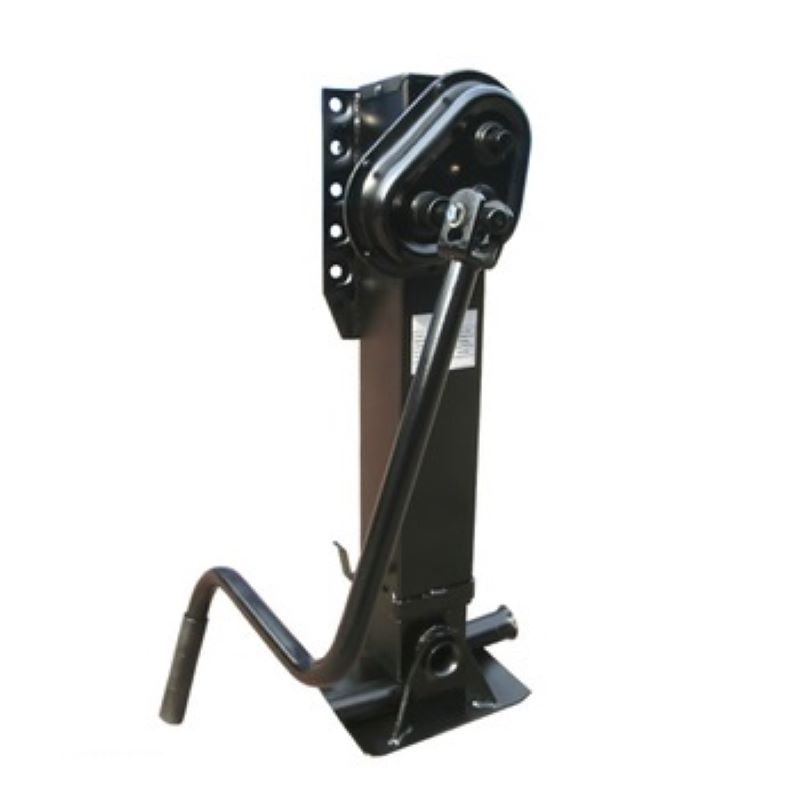

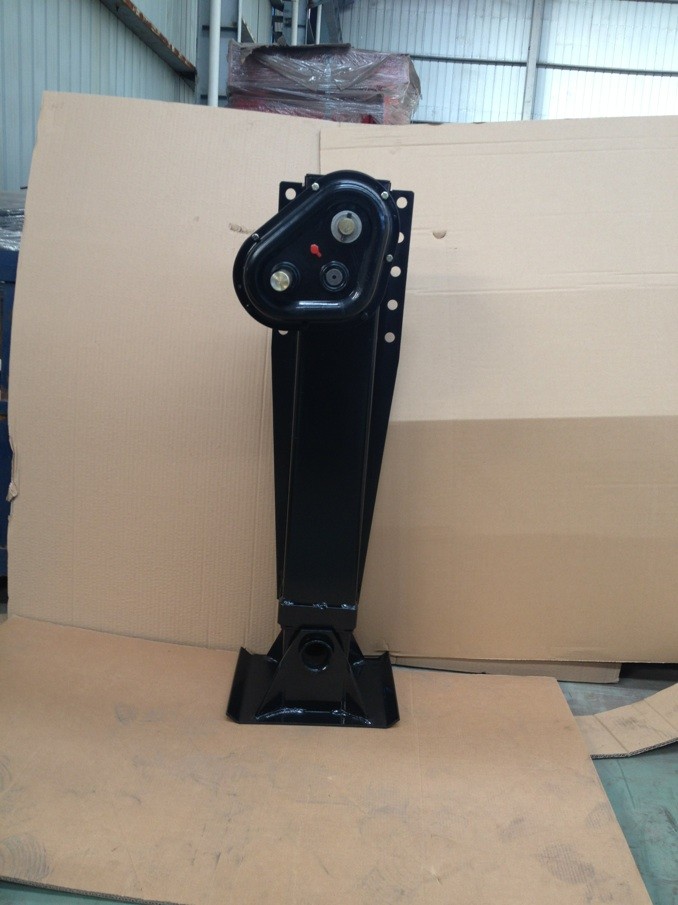

Detailed Photos：
