These 28-ton capacity 19" Fuwa landing gear legs are designed as a reliable and efficient solution for heavy-duty trailer support and lifting operations. Engineered with standard double-speed hydraulic actuation, they enable faster and more controlled raising and lowering of trailers, significantly improving operational efficiency in loading, unloading, and parking scenarios.
A Semi Trailer Landing Gear and Container Lifting Jack are critical components in the transportation and logistics industry, designed to ensure the safe handling, stabilization, and lifting of semi-trailers and shipping containers. Below is a detailed overview of their functions, types, and applications:
The landing gear (also called landing legs or trailer legs) is a mechanical support system mounted on the front end of a semi-trailer. Its primary purpose is to stabilize the trailer when it is disconnected from the tractor unit.
1. Gear box inside and gear box outside with JOST, FUWA & Holland type for semi trailer.
2. The main capacity includes 9 ton, 11 ton, 25 ton, 28 ton, 30 ton, etc. Also 3 ton adn 6 ton landing gears are available.
3. Competitive price and hight quality.
4. Certificate: ISO/TS 16949
5. Delivery time: Within 20 days after receipt of TT deposit or LC.
Product Parameters
Gearbox inside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lifting Speed/turn | Weight (Kg) | Remarks | |
| max. | min. | ||||||
| LHLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| LHLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| LHLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 |
single-side operation |
Gearbox outside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lifting Speed/turn | Weight (Kg) | Remarks | |
| max. | min. | ||||||
| LHLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| LHLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
|
LHLO-30 |
14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| LHLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |

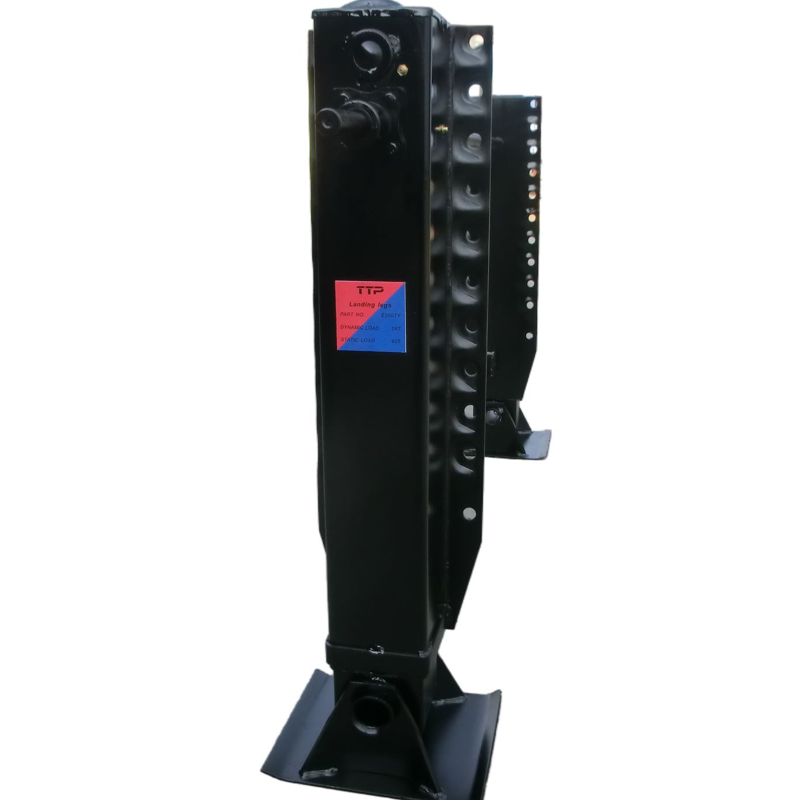

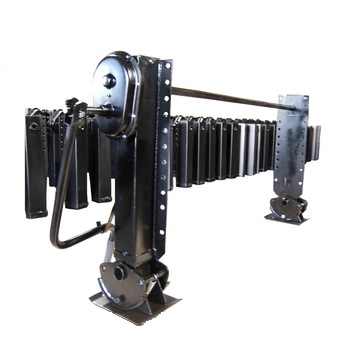

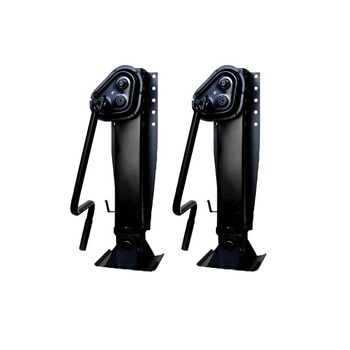

Detailed Photos：
