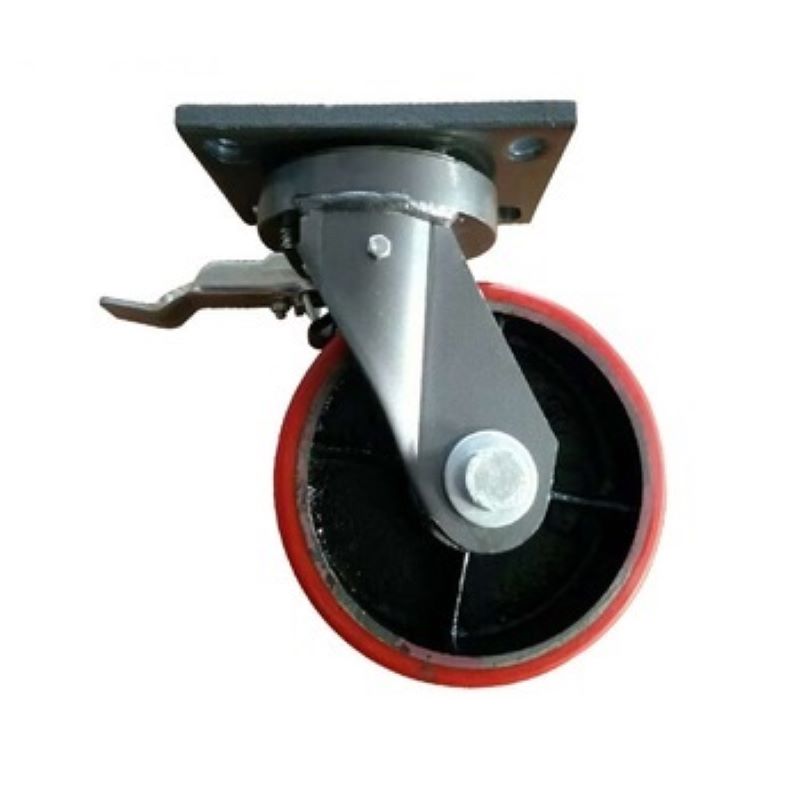

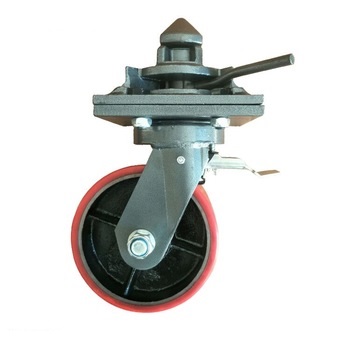

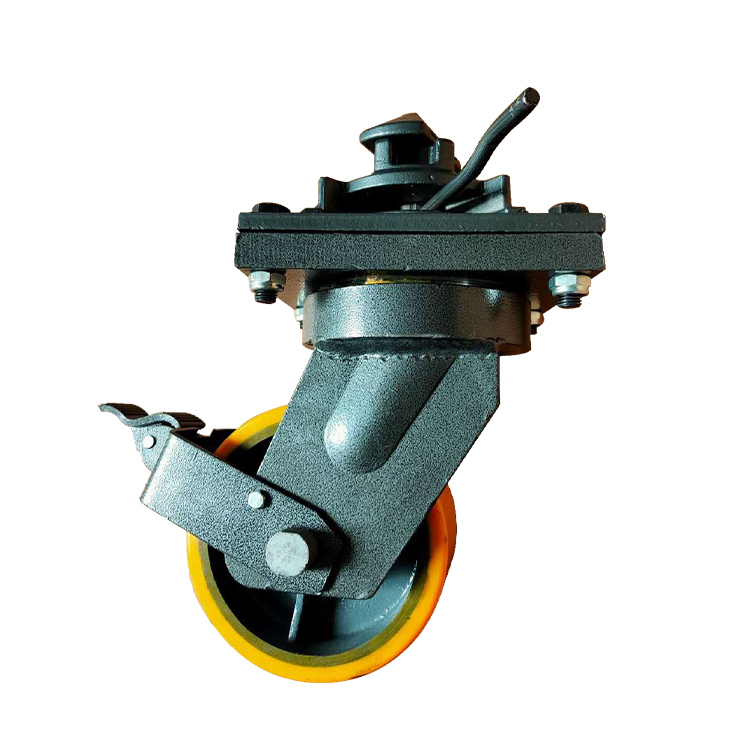

This Heavy-Duty 3-Ton Swivel Caster is engineered specifically for the demanding task of mobilizing and positioning ISO Shipping Containers, storage containers, and other super-heavy equipment. Designed to meet rigorous industrial standards, it provides a robust and reliable solution for workshops, logistics yards, construction sites, and freight terminals.
These heavy-duty swivel caster wheels combine industrial-grade strength with precision control, making them indispensable for safely transporting mega-loads. The integrated braking system guarantees stability during loading/unloading or long-term storage, while the rugged build minimizes downtime in demanding workflows.
Shipping container mobility: Move ISO containers, modular offices, or storage units.
Industrial machinery: Transport heavy equipment in factories or workshops.
Aerospace/automotive: Position large components or assembly lines.
Construction sites: Relocate temporary structures or materials.
| Category | Specifications |
|---|---|
| Load Capacity | 3,000 kg (6,614 lbs) per wheel - Engineered to handle extreme weights for heavy containers or machinery. |
| Material & Construction | - Wheel: High-strength polyurethane (PU), nylon, or forged steel treads for durability and floor protection. - Hub/Bracket: Reinforced cast steel or hot-forged carbon steel with anti-corrosion coating. - Swivel Mechanism: Precision ball bearings or tapered roller bearings for smooth 360° rotation. |
| Brake System | - Dual-function brake: Combines wheel lock (prevents rolling) and swivel lock (fixes direction). - Pedal-operated brake: Heavy-duty steel brake lever for easy engagement and release. |
| Wheel Size | - Diameter: 200 mm (8"), 250 mm (10"), or customizable. - Width: 50-100 mm (2-4"), depending on load requirements. |
| Mounting Plate | - Standard plate size: 150 x 150 mm (6" x 6") or 200 x 200 mm (8" x 8"). - Bolt holes: 4-hole or 8-hole pattern with M12/M16 bolts for secure attachment. |
| Temperature Resistance | Operates in -30°C to +80°C (-22°F to +176°F), suitable for harsh environments. |
| Floor Compatibility | Works on concrete, asphalt, steel decks, or uneven surfaces (for wheels with shock-absorbing treads). |
We also supply different kinds of trailer container twist lock for your choice;
