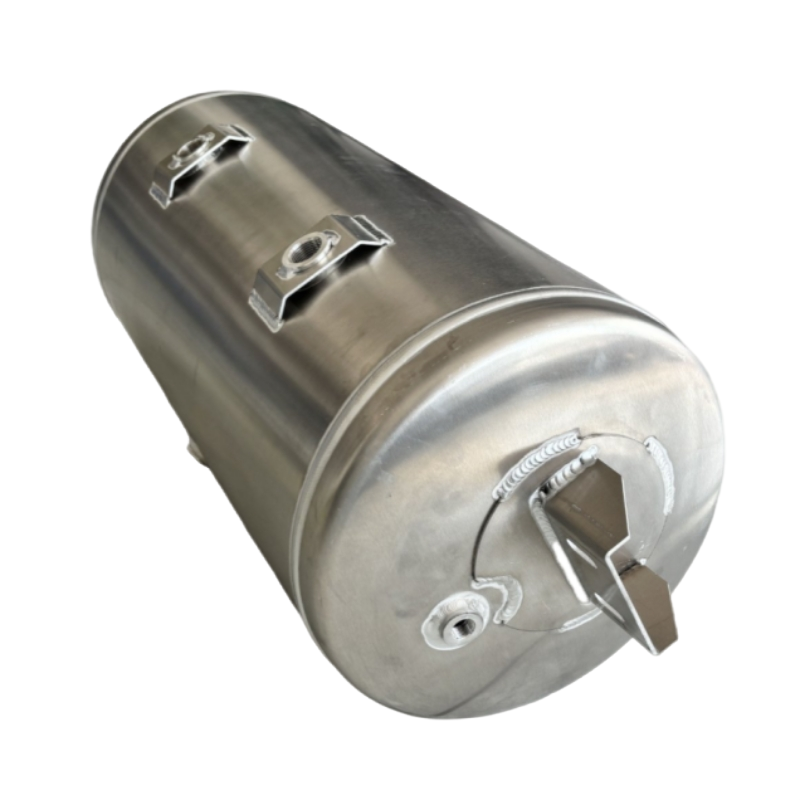

This heavy-duty, portable aluminum air tank is an essential component for powerful air horn systems and various pneumatic applications. With a substantial capacity of 9.2 gallons (35 liters), it serves as a reliable reservoir of compressed air, ensuring your air horns produce loud, immediate, and consistent blasts.
Constructed from high-grade aluminum, the tank is significantly lighter and more resistant to corrosion than steel tanks, making it ideal for automotive, marine, and off-road use. It features a universal 1/4" NPT port for easy connection to your air compressor, air horns, and other air accessories. The integrated pressure gauge allows for real-time monitoring of air pressure, while the safety release valve ensures over-pressure protection.
9.2 gallon/35L Air Horn Air Pressure Horn Aluminum Pressure Storage Air Tank
LAHOO is a professional compressed air purification equipment manufacturer based in China. Since inception, we are dedicated to providing our global customers with high quality, excellent design, leading technology. At least 200PSI, can also 100Bar, if needed. Accept custom air tank.
1. Material: Aluminum/Steel/Stainless Steel available
2. Port size: Port Size: 1/4"NPT, 3/8"NPT, 1/2"NPT
3. Surface finish: Painted/Polishing/Anodizing
4. Max. working pressure: 200 PSI
5. Max. working temperature: -10-60ºC
6. OEM service and customized service are available
7. Certificate:ISO/TS16949
9.2 gallon/35L Air Horn Air Pressure Horn Aluminum Pressure Storage Air Tank Specification size:
Specifications Table
| Parameter | Specification |
|---|---|
| Model / Type | Air Horn / Utility Air Tank |
| Capacity | 9.2 Gallons / 35 Liters |
| Material | High-Strength Aluminum Alloy |
| Max. Working Pressure (PSI) | 150 PSI |
| Burst Pressure (PSI) | Typically 450-600 PSI (Approx. 3x Working Pressure) |
| Port Thread | 1/4" NPT (National Pipe Taper) |
| Mounting Bracket | Included (for secure installation) |
| Pressure Gauge | Included (for pressure monitoring) |
| Safety Relief Valve | Included (automatic over-pressure release) |
| Key Features | Lightweight, Corrosion-Resistant, Portable, High Capacity |
| Primary Applications | Truck/Bus Air Horns, Automotive Pneumatic Systems, Off-Road Vehicles, Boats, Portable Air Supply for Inflation & Small Tools |
