Air Lift 5 Gallon Polish Aluminum Alloy Air Tank

Airlift 5 Gallon Polish Aluminum Alloy Air Tank

High-quality air compressor systems rely on robust components like converter dolly parts, air reservoirs (air tanks), and related accessories to ensure efficient, safe, and reliable operation. These parts are critical for industrial, automotive, and mobile applications, including trailer air brake systems, pneumatic tools, and HVAC operations. Below is a detailed overview of their design, functionality, and advantages:

Get Instant QuoteContact Us

Product Details

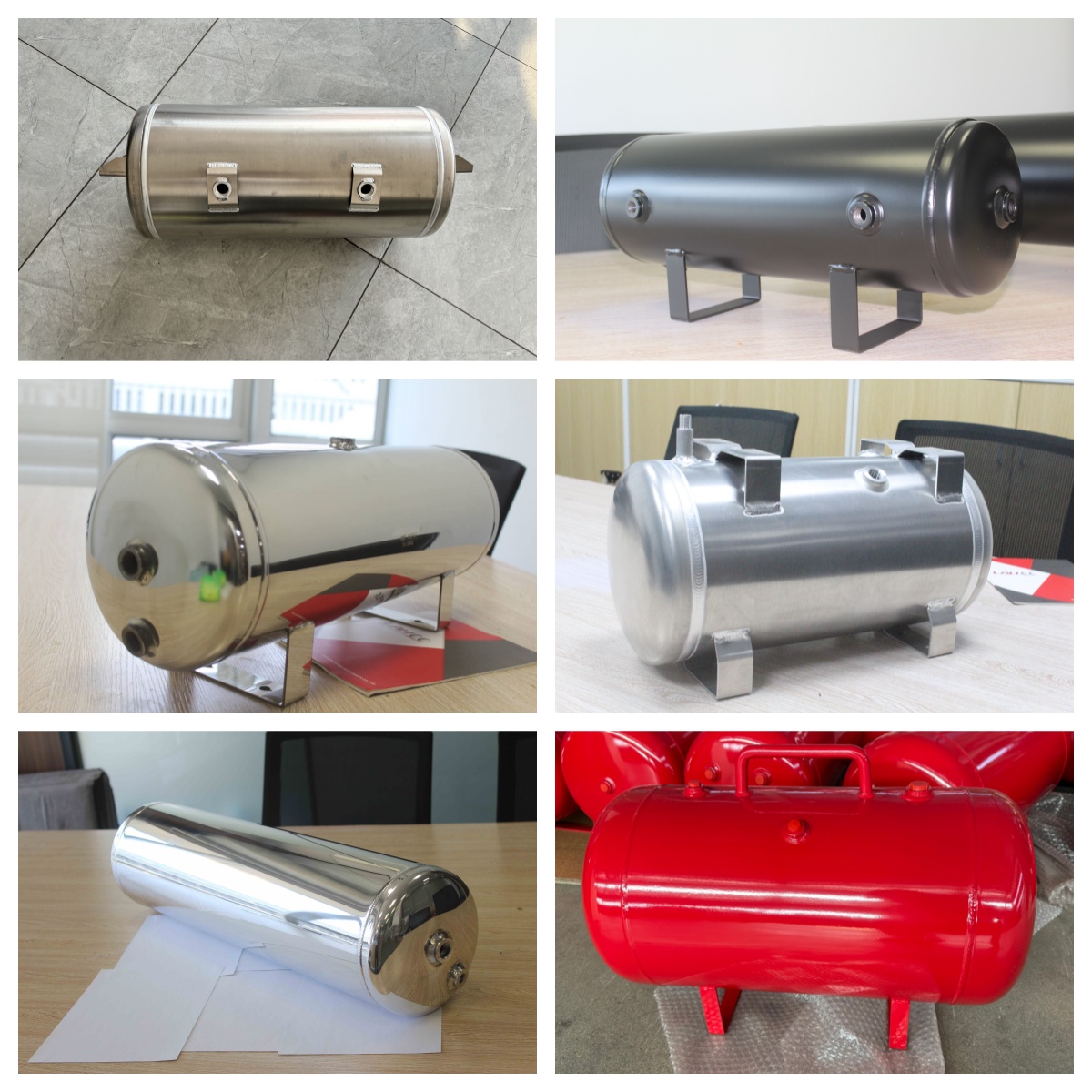

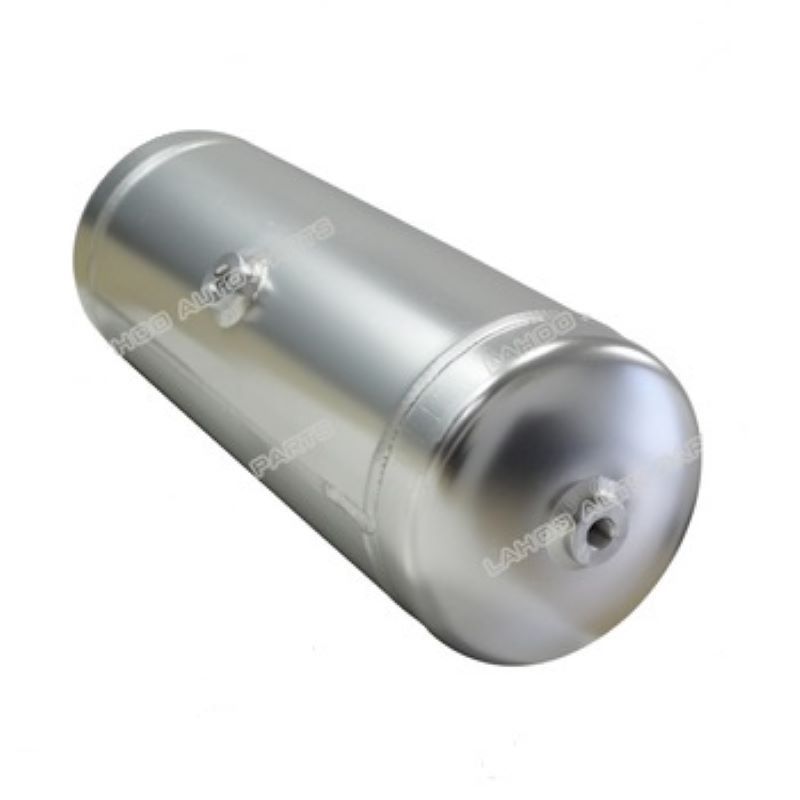

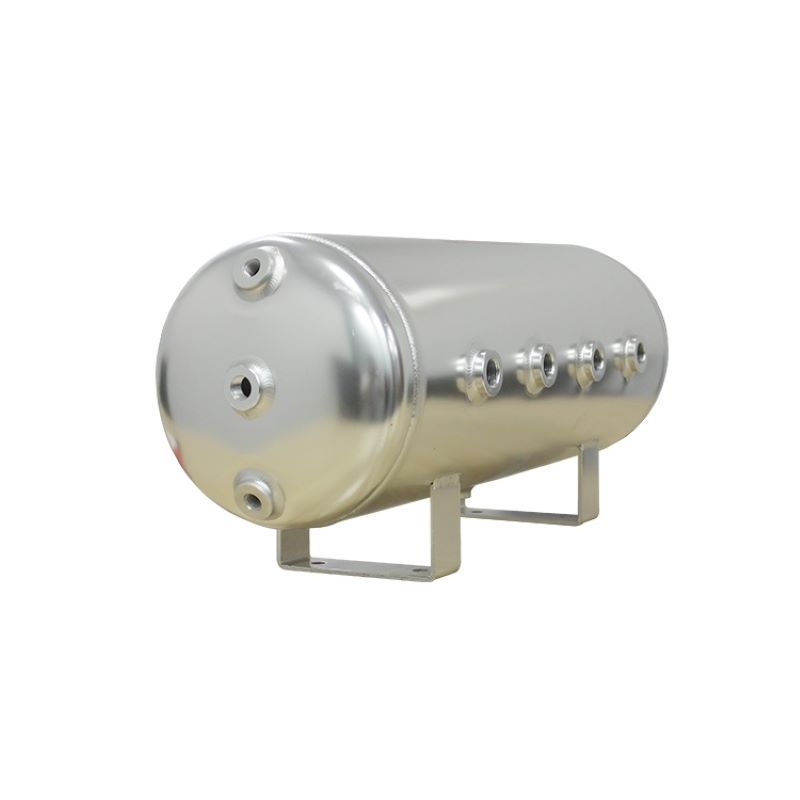

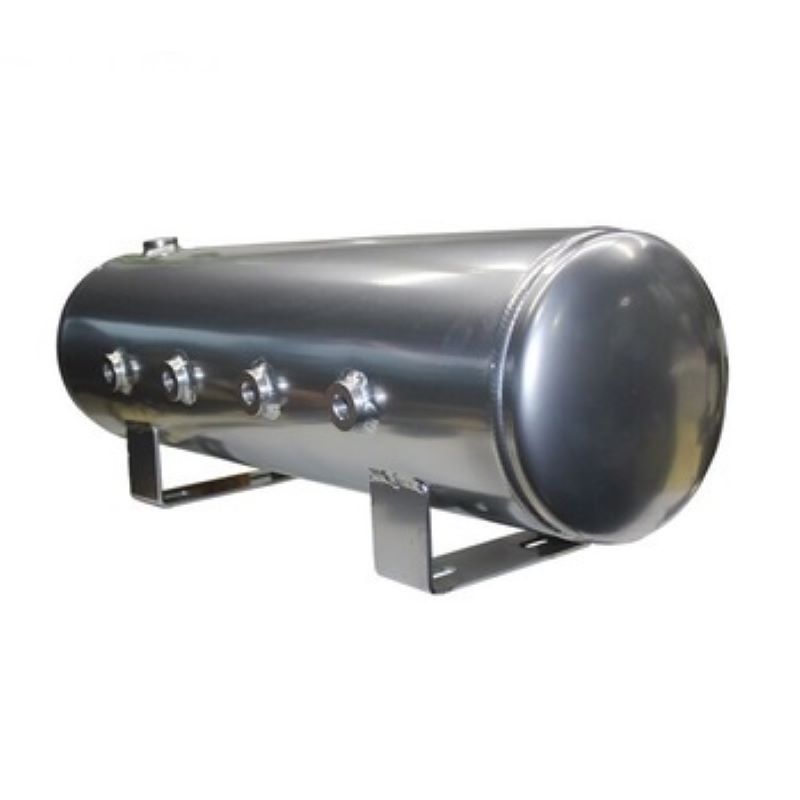

Airlift 5 Gallon Polish Aluminum Alloy Air Tank

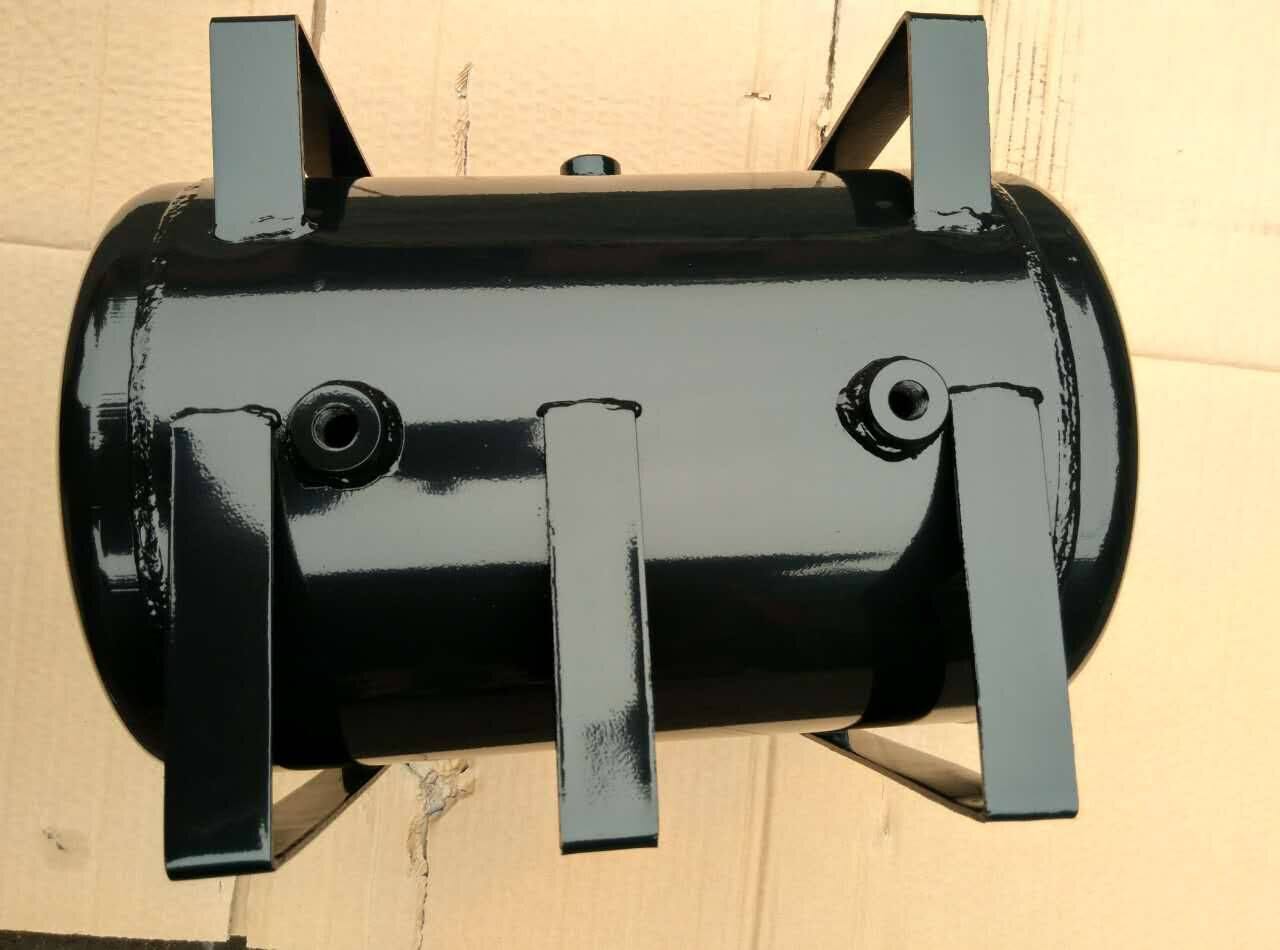

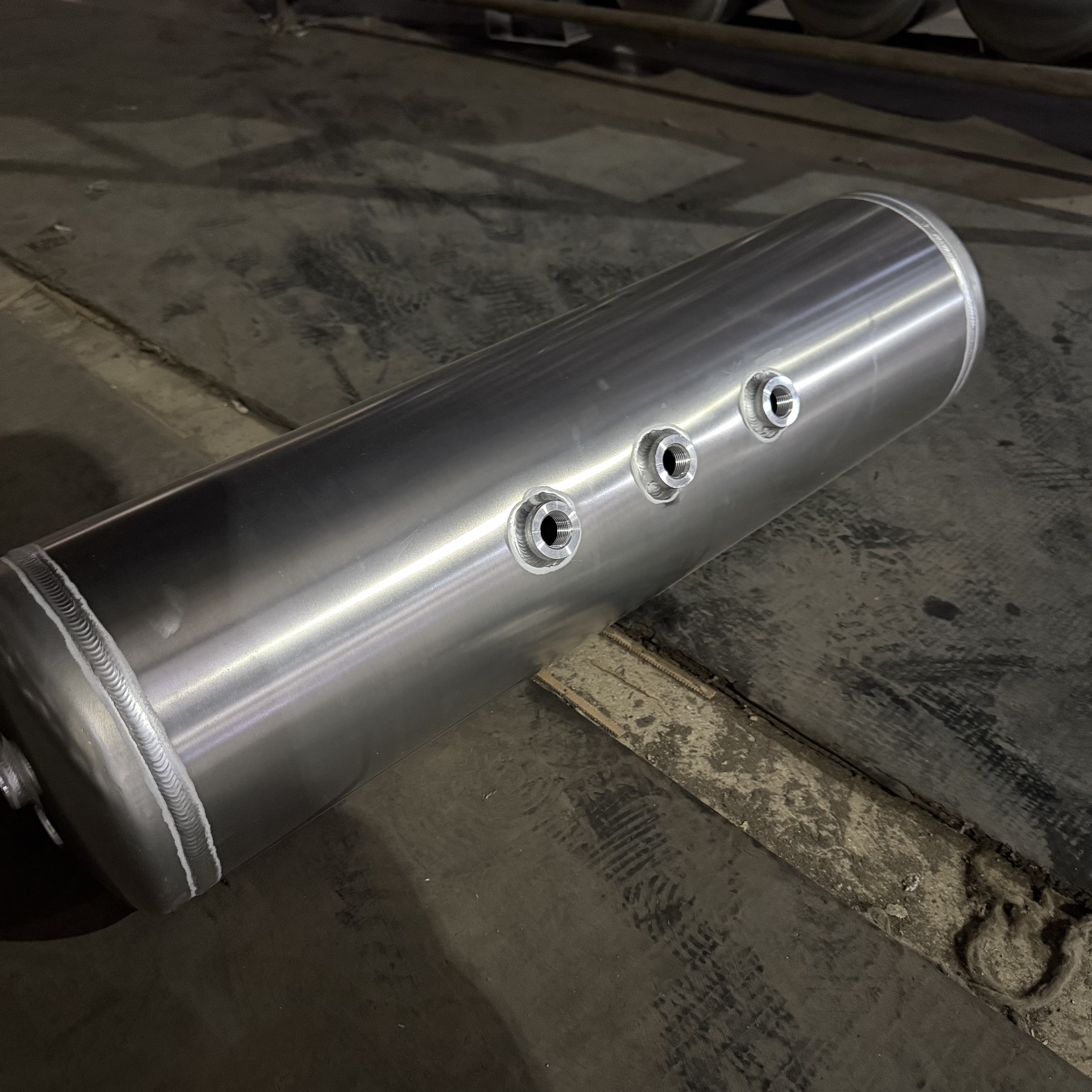

Air Reservoir (Air Tank)

Function: Stores compressed air, ensuring a steady supply for consistent system performance and pressure stabilization.

Features:

High-Capacity Design: Available in sizes from 5 to 20+ gallons, depending on application needs.

Pressure Resistance: Rated for 150-200 PSI, with ASME-certified safety standards.

Corrosion Protection: Coated with epoxy or powder finishes to resist rust and chemical damage.

Product Parameters

Compressed Air Receiver, Air Receiver, Receivre, Air Tank, Tank

1, Moveable Screw Compressor with Air Receiver or Portable Screw Compressor with Air Tank (4kW ~ 11 kW)
2, Stationary Screw Compressor (4kW ~ 400kW)
A, Air Cooled and Belt Drive Screw Compressor (4kW ~ 45kW)
B, Air Cooled or Water Cooled and Belt Drive or Direct Drive Screw Compressor (55kW ~ 400kW)
3, Variable Speed Drive Screw Compressor (22kW ~ 315kW)
4, Special Screw Compressor for special working condition (high magnetic field, a great deal of dust, high temperature, greatly-corrosive substances and voltage volatile)

Item No.	Material	Tank Dia. (mm)	Length H (mm)	Volume (It)	Port Size	Port Q'ty	Max.Pressure	Max.Working Temperature	Surface Treatment
LH080200	Aluminum/Steel	88	200	1	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH100190	Aluminum/Steel	100	190	1.4	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130100	Aluminum/Steel	130	100	1	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130130	Aluminum/Steel	130	130	1.5	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130175	Aluminum/Steel	130	175	2	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH150350	Aluminum/Steel	150	350	6	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH160220	Aluminum/Steel	160	220	4.5	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH190330	Aluminum/Steel	190	330	9	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH190420	Aluminum/Steel	190	420	12	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH220400	Aluminum/Steel	220	540	20	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH245400	Aluminum/Steel	245	400	19	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH245540	Aluminum/Steel	245	540	24	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 C	Painted/Polishing/Anodizing
LH330590	Aluminum/Steel	330	590	50	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
Note: We Accept Customer Size Customization
