OEM Custom 100/130/190 Length Aluminum/Steel Brake Reservoir System Air Tank

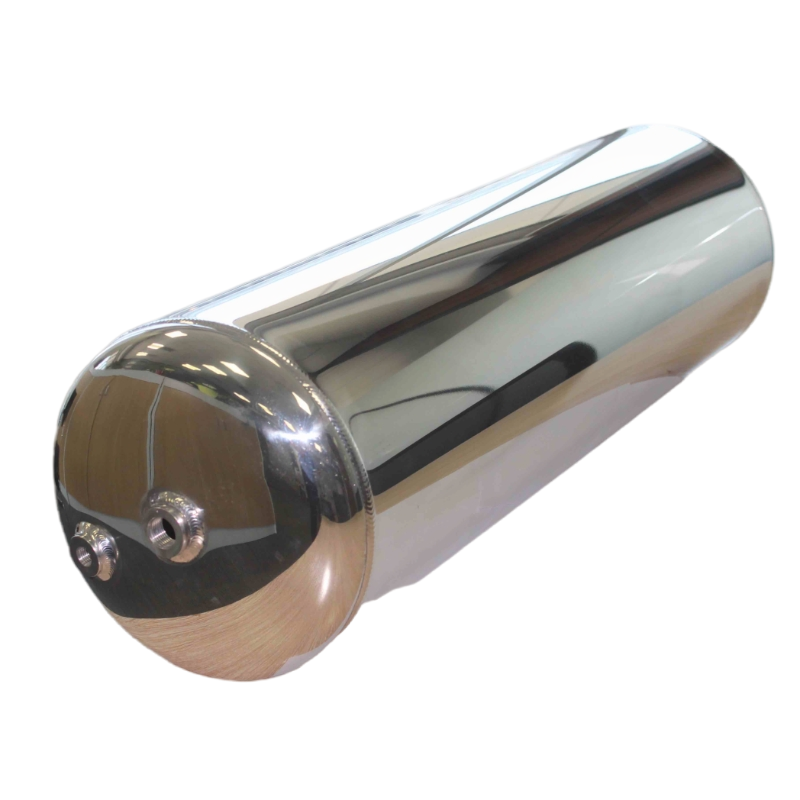

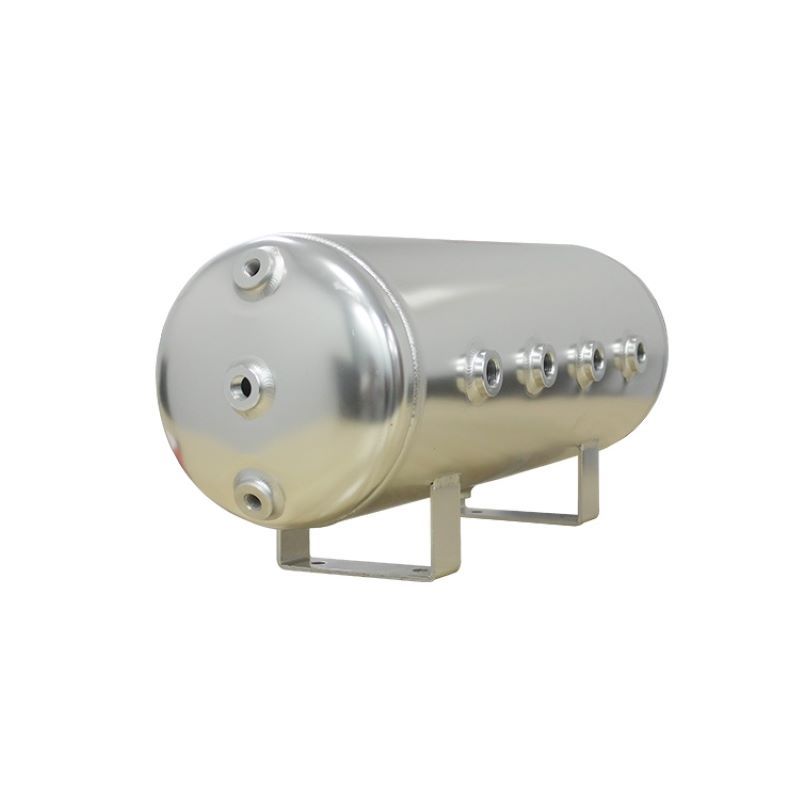

OEM Custom-Length Brake Reservoir & Air Tank Systems (100mm / 130mm / 190mm)


Product Parameters



Item No.	Material	Tank Dia. (mm)	Length H (mm)	Volume (It)	Port Size	Port Q'ty	Max.Pressure	Max.Working Temperature	Surface Treatment
LH080200	Aluminum/Steel	88	200	1	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH100190	Aluminum/Steel	100	190	1.4	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130100	Aluminum/Steel	130	100	1	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130130	Aluminum/Steel	130	130	1.5	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130175	Aluminum/Steel	130	175	2	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH150350	Aluminum/Steel	150	350	6	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH160220	Aluminum/Steel	160	220	4.5	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH190330	Aluminum/Steel	190	330	9	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH190420	Aluminum/Steel	190	420	12	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH220400	Aluminum/Steel	220	540	20	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH245400	Aluminum/Steel	245	400	19	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH245540	Aluminum/Steel	245	540	24	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 C	Painted/Polishing/Anodizing
LH330590	Aluminum/Steel	330	590	50	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
Note: We Accept Customer Size Customization

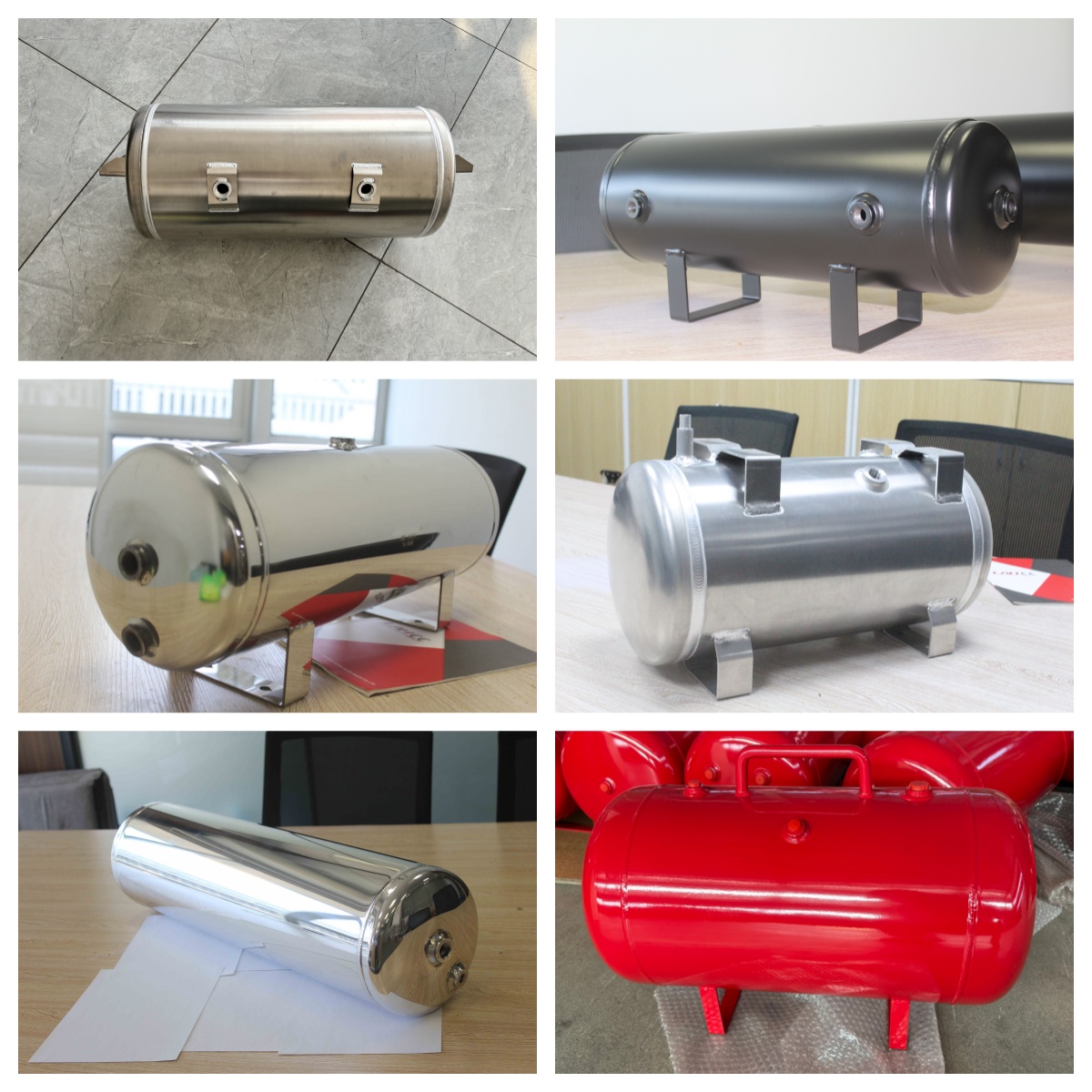

Detailed Photos

Heavy Duty Construction:

This aluminum air tank is designed for heavy-duty use, ensuring it can withstand extreme conditions and support a maximum payload of over 30,000 kg, making it ideal for heavy truck and trailer applications.
Customizable Size Options:

Available in various sizes, including 5L, 15L, 20L, and 30L, this air tank can be customized to meet specific user requirements, including a diameter of 104mm to 320mm and a length of 280mm / 246mm.


Durable Material:

Made from high-quality aluminum, this air tank is resistant to corrosion and can withstand harsh environments, ensuring a long lifespan and reliability.
100% Quality Guarantee:

This product comes with a 100% quality guarantee, providing users with peace of mind and confidence in their purchase, especially for users like you who require a reliable air tank for their trailer truck.


Fast Delivery:

The lead time for this product is 3-10 days, ensuring timely delivery to meet user needs, whether it is a renovation or upgrade.
