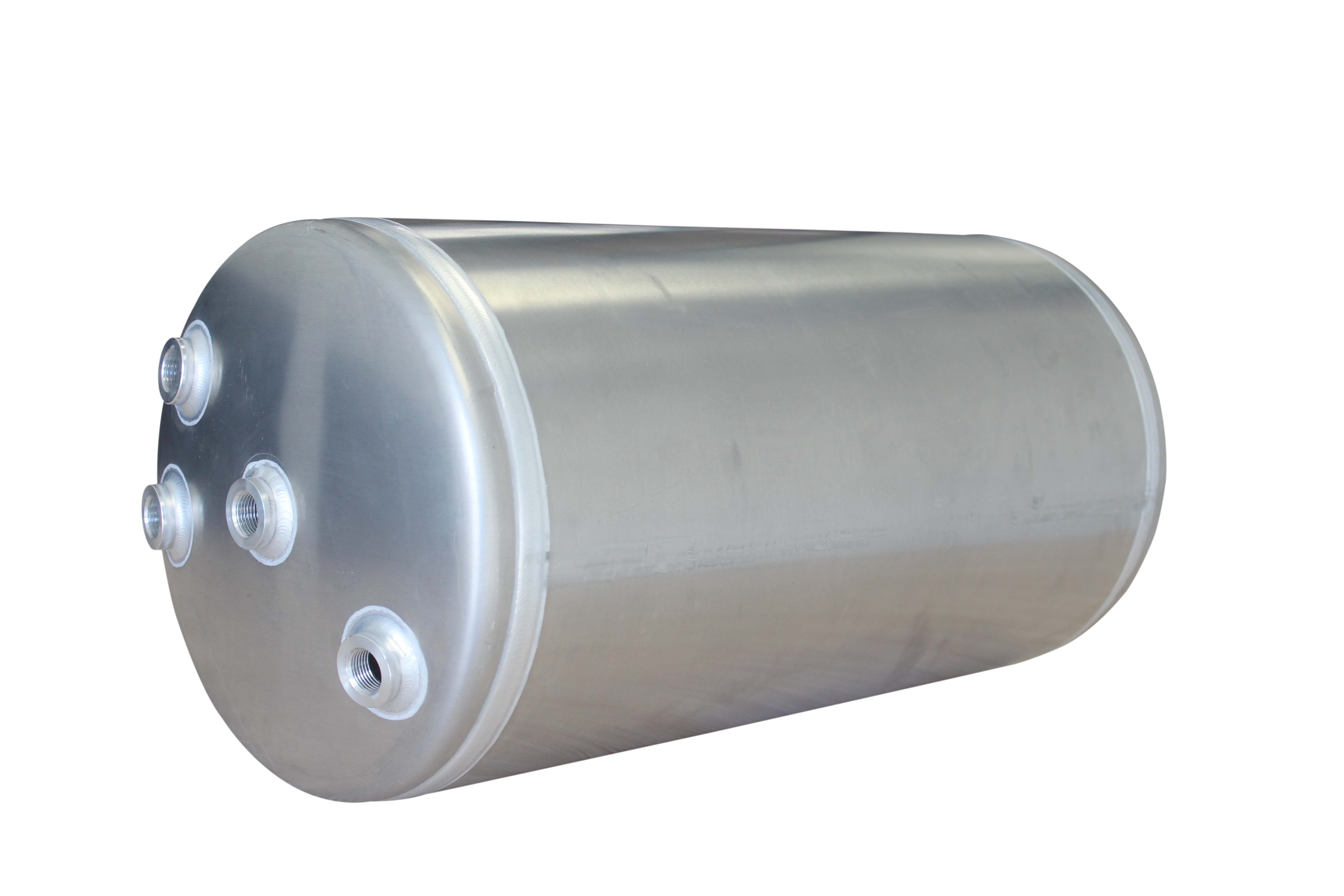

The Customizable 25L Vacuum Compressed Aluminum Air Tank Buffer Cylinder is a high-performance vessel designed for the storage and stabilization of compressed air in various industrial and commercial applications. Constructed from premium-grade aluminum alloy through a advanced spin-forming process, this cylinder offers an exceptional strength-to-weight ratio and superior corrosion resistance.
| Item No. | Material | Tank Dia. (mm) |
Length H (mm) |
Volume (It) |
Port Size | Port Q'ty | Max.Pressure | Max.Working Temperature |
Surface Treatment |
| LH080200 | Aluminum/Steel | 88 | 200 | 1 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH100190 | Aluminum/Steel | 100 | 190 | 1.4 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH130100 | Aluminum/Steel | 130 | 100 | 1 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH130130 | Aluminum/Steel | 130 | 130 | 1.5 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH130175 | Aluminum/Steel | 130 | 175 | 2 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60ºC | Painted/Polishing/Anodizing |
| LH150350 | Aluminum/Steel | 150 | 350 | 6 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH160220 | Aluminum/Steel | 160 | 220 | 4.5 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60ºC | Painted/Polishing/Anodizing |
| LH190330 | Aluminum/Steel | 190 | 330 | 9 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH190420 | Aluminum/Steel | 190 | 420 | 12 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PS | -10-60 ºC | Painted/Polishing/Anodizing |
| LH220400 | Aluminum/Steel | 220 | 540 | 20 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60ºC | Painted/Polishing/Anodizing |
| LH245400 | Aluminum/Steel | 245 | 400 | 19 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PS | -10-60 ºC | Painted/Polishing/Anodizing |
| LH245540 | Aluminum/Steel | 245 | 540 | 24 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 C | Painted/Polishing/Anodizing |
| LH330590 | Aluminum/Steel | 330 | 590 | 50 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PS | -10-60 ºC | Painted/Polishing/Anodizing |
| Note: We Accept Customer Size Customization | |||||||||
