The 5 Gallon 5 Port / 7 Port Aluminum Steel Air Suspension Air Tank is a high-performance, essential component for custom air ride suspension systems and other pneumatic applications. Constructed with a durable aluminum shell and steel end caps, it offers an ideal balance of lightweight design and structural strength. Its primary function is to store compressed air, ensuring a rapid and reliable supply for instant inflation/deflation of air bags or air struts, leading to faster system response and improved performance.
Our custom air receiver tanks are engineered to be the reliable core of any compressed air system, providing essential air storage, moisture separation, and pressure stabilization. Designed for compatibility with screw air compressors and other industrial types, these tanks ensure smoother operation, reduced compressor cycling, and improved air quality downstream.
Specification Table:
| Parameter | Specification |
|---|---|
| Model | 5 Gallon Air Suspension Tank |
| Material | Aluminum Body / Steel End Caps |
| Total Capacity | 5 US Gallons (≈ 18.9 Liters) |
| Available Ports | 5-Port Version / 7-Port Version |
| Port Size (Typical) | 1/4" NPT or 3/8" NPT (Please verify specific product) |
| Maximum Working Pressure | 150 - 200 PSI (Refer to manufacturer's rating) |
| Pressure Test | Typically 1.5x to 2x Max Working Pressure |
| Mounting | Pre-drilled holes or mounting brackets |
| Surface Finish | Polished aluminum, black anodized, or painted (varies) |
| Primary Use | Air Ride Suspension Systems, On-Board Air Systems |
| Dimensions (Approx.) | Varies by design. Example: 18" (Length) x 8" (Diameter) |
Note: Always confirm the exact port thread type (NPT), pressure ratings, and dimensions with the specific manufacturer or supplier before purchase and installation to ensure compatibility with your system components.

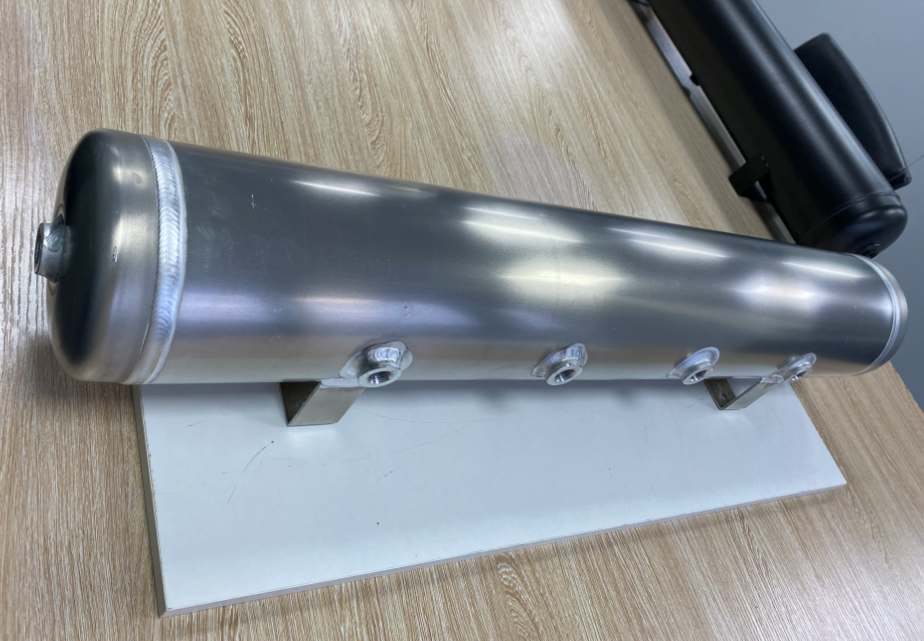

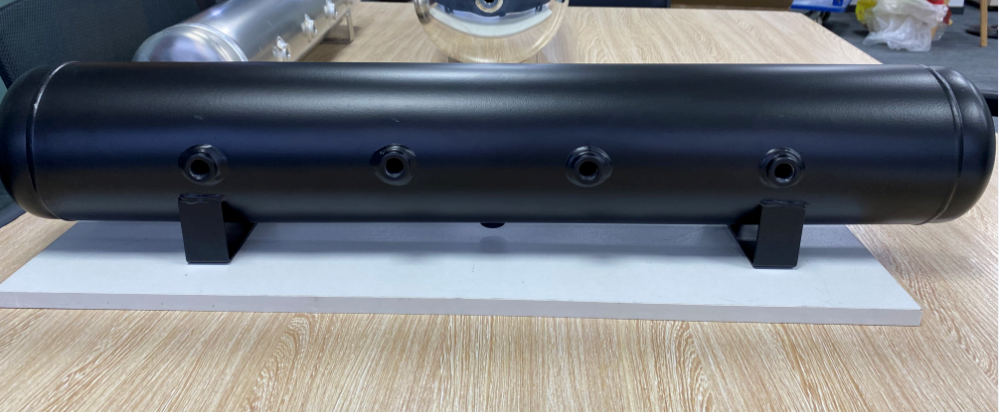

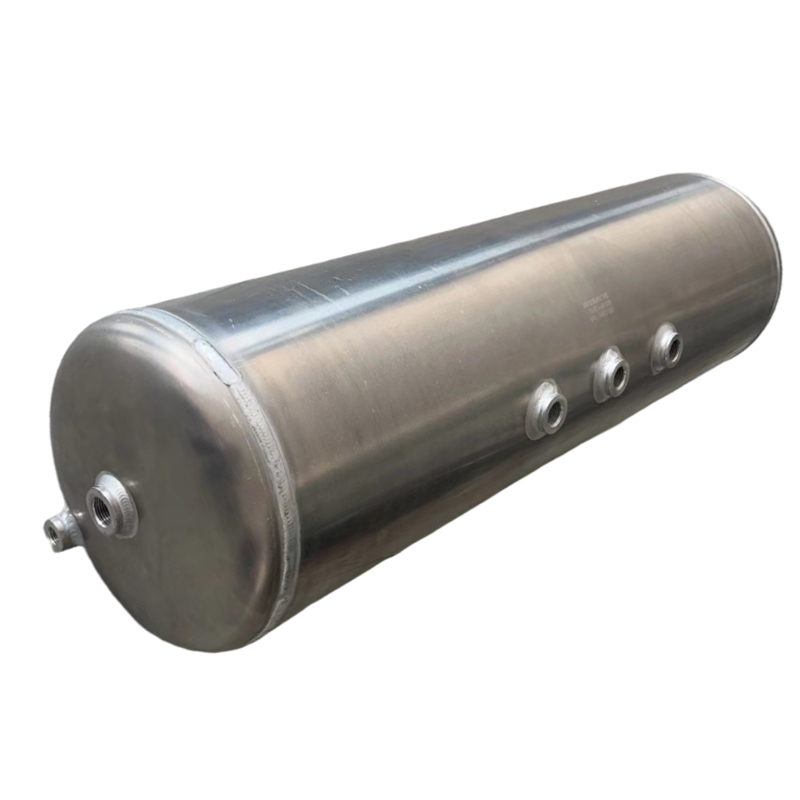

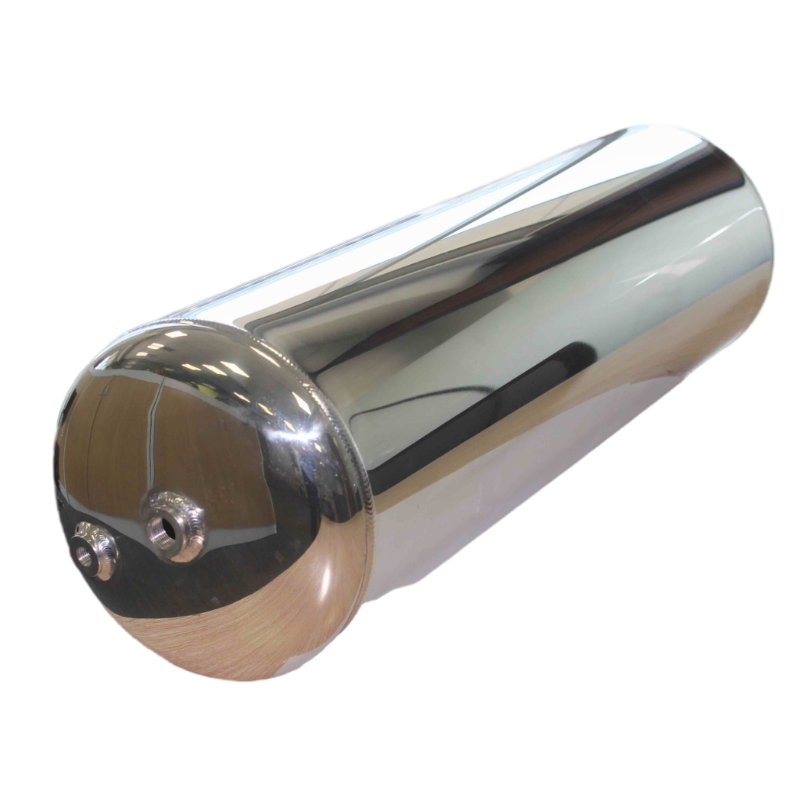

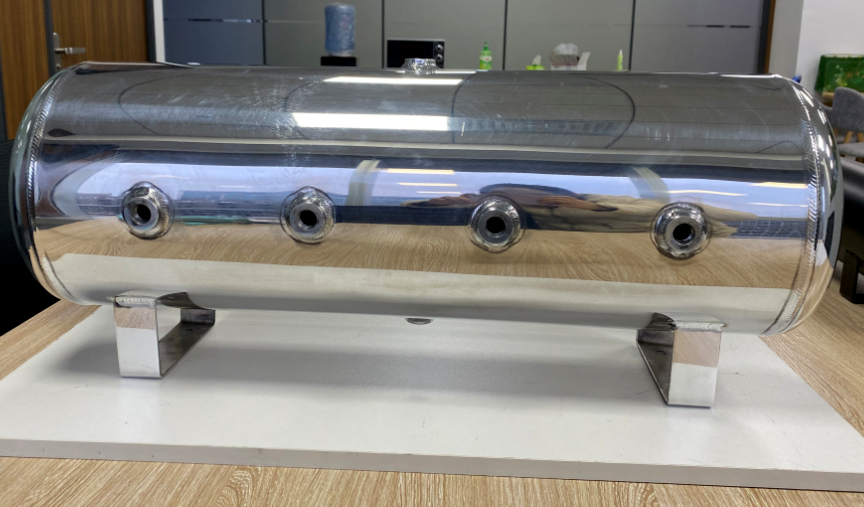

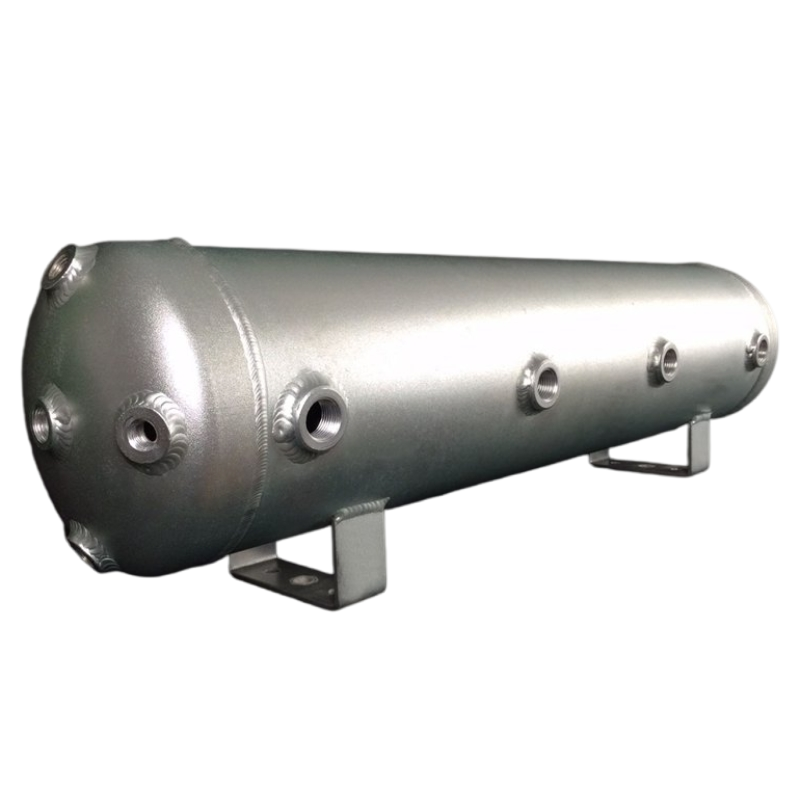

Detailed Pictures:
