1. From 0.5 to 100 liters. Other sizes and models available on request.
2. Temperature range: -50 ° C to +50 ° C
3. Pressure range: 10 to 19 bar, 150 to 275 Psi, 1 to 1.9 Mpa
4. Port: According to customer requirements.
5. Norms thread M 22 x 1.5 or NPT or NPTF
6. Mounting Bracket: According to customer requirements.
7. Color: Power coating, Polishing, Anodizing

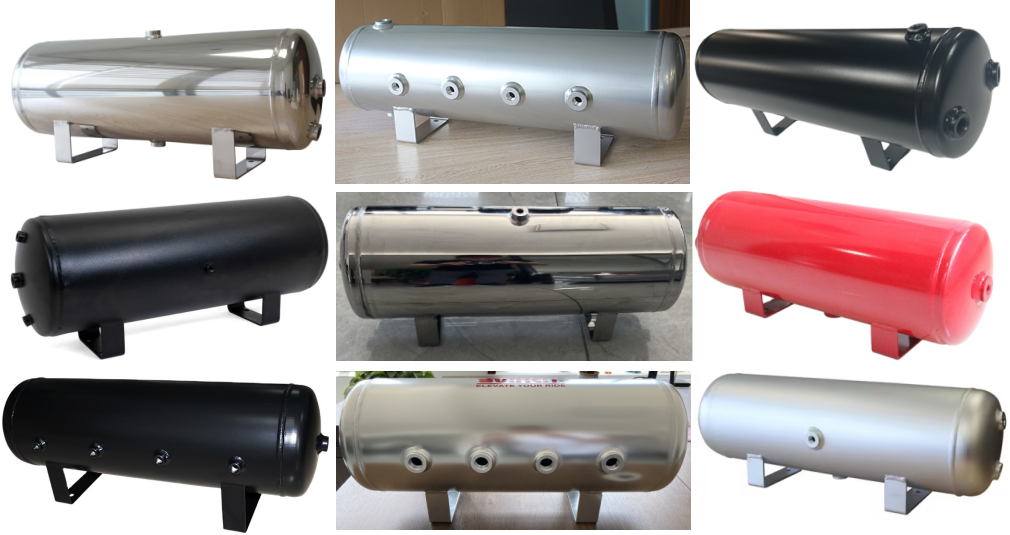

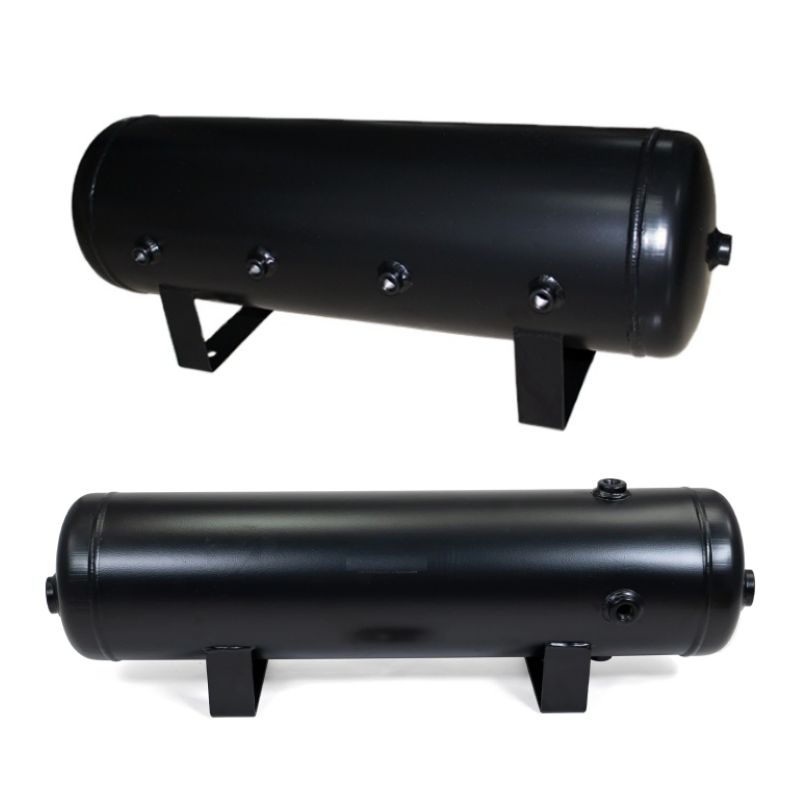

3 Gal 5 Gal Aluminum Air Tank for Air Suspension
1. Aluminum/Stainless Steel;
2. 3L/5L/10L/20L/30L/40L/60L etc.
3. Seam or Seamless
4. OEM and custom service are available;
5. 200 PSI
6. Raw finish/Polished/Powder coated/Anodized
| Item No. | Material | Diameter (mm) |
Length (mm) |
Volume (L) |
Port Size | Port Qty |
| LH080200 | AL/Steel | 88 | 200 | 1 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH100190 | AL/Steel | 100 | 190 | 1.4 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH130100 | AL/Steel | 130 | 100 | 1 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH130130 | AL/Steel | 130 | 130 | 1.5 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH130175 | AL/Steel | 130 | 175 | 2 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH150350 | AL/Steel | 150 | 350 | 6 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH160220 | AL/Steel | 160 | 220 | 4.5 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH190330 | AL/Steel | 190 | 330 | 9 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH190420 | AL/Steel | 190 | 420 | 12 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH220540 | AL/Steel | 220 | 540 | 20 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH245400 | AL/Steel | 245 | 400 | 19 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH245540 | AL/Steel | 245 | 540 | 24 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
| LH330590 | AL/Steel | 330 | 590 | 50 | 1/4'NPT, 3/8'NPT, 1/2'NPT | as requested |
