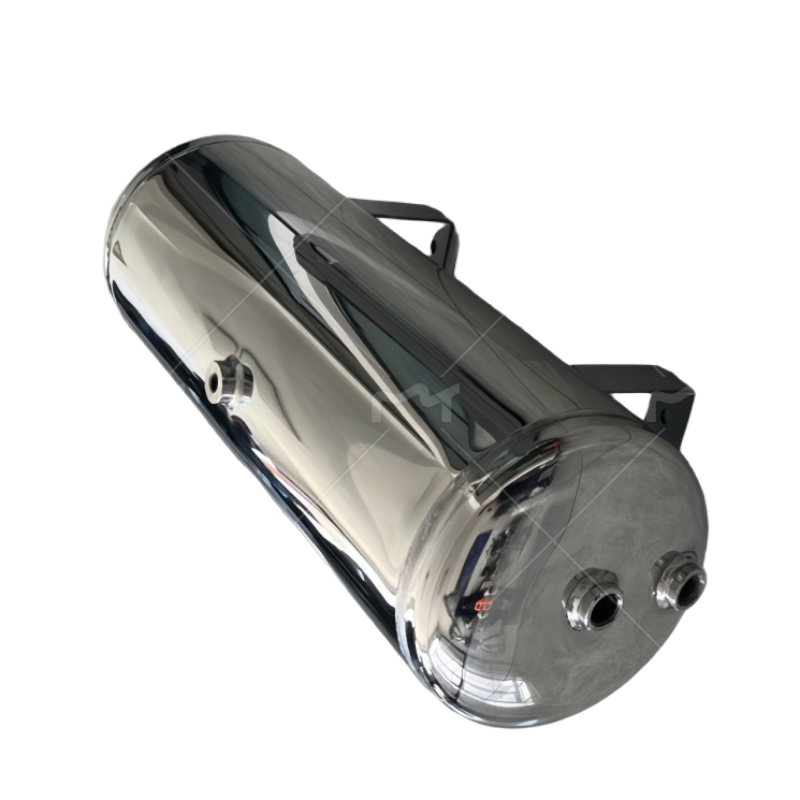

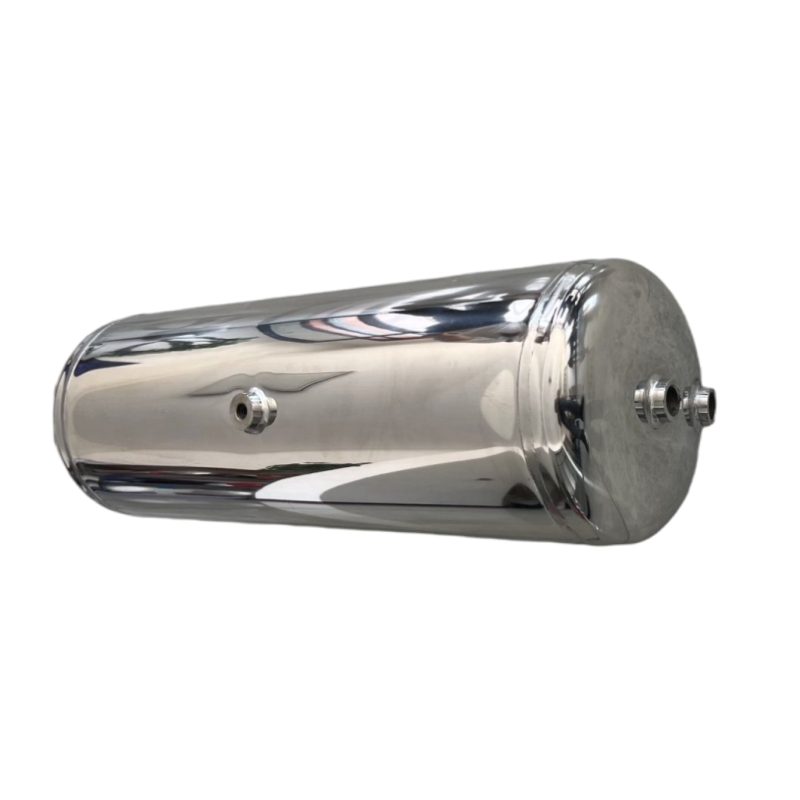

This product is a precision-engineered, small-form-factor air reservoir tank designed for specialized applications requiring a compact, lightweight, and corrosion-resistant solution. Available in both Aluminum and Stainless Steel (typically 304 or 316), this horizontal tank serves multiple functions: as a vacuum buffer, pulse dampener, pressure reservoir, and moisture separator in smaller compressed air or gas systems.
Ideal for laboratory equipment, medical devices, precision instrumentation, robotics, and small-scale automation, this tank ensures system stability by absorbing pulsations from micro-compressors or vacuum pumps, providing a temporary air supply, and protecting sensitive components from pressure spikes.
Dual-Material Choice:
Aluminum: Offers an excellent strength-to-weight ratio, is naturally corrosion-resistant, and is ideal for weight-sensitive applications.
Stainless Steel: Provides superior corrosion resistance for harsh environments, high-purity applications (e.g., medical, food), and offers a more polished, sanitary appearance.
Compact & Horizontal Design: The low-profile, horizontal layout maximizes stability and simplifies integration into confined spaces or machinery.
Multi-Functional: Effectively functions as a pulsation dampener, vacuum reservoir, pressure buffer, and mini air receiver.
Customizable: As a custom-built component, ports, mounts, and dimensions can be modified to fit your exact system layout.
High-Quality Construction: Precision TIG welding ensures clean, strong, and leak-proof seams for maximum reliability and safety.
Clean Operation: Both materials are suitable for clean air and gas applications, preventing contamination.
Product Parameters
| Item No. | Material | Tank Dia. (mm) |
Length H (mm) |
Volume (It) |
Port Size | Port Q'ty | Max.Pressure | Max.Working Temperature |
Surface Treatment |
| LH080200 | Aluminum/Steel | 88 | 200 | 1 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH100190 | Aluminum/Steel | 100 | 190 | 1.4 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH130100 | Aluminum/Steel | 130 | 100 | 1 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH130130 | Aluminum/Steel | 130 | 130 | 1.5 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH130175 | Aluminum/Steel | 130 | 175 | 2 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60ºC | Painted/Polishing/Anodizing |
| LH150350 | Aluminum/Steel | 150 | 350 | 6 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH160220 | Aluminum/Steel | 160 | 220 | 4.5 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60ºC | Painted/Polishing/Anodizing |
| LH190330 | Aluminum/Steel | 190 | 330 | 9 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 ºC | Painted/Polishing/Anodizing |
| LH190420 | Aluminum/Steel | 190 | 420 | 12 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PS | -10-60 ºC | Painted/Polishing/Anodizing |
| LH220400 | Aluminum/Steel | 220 | 540 | 20 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60ºC | Painted/Polishing/Anodizing |
| LH245400 | Aluminum/Steel | 245 | 400 | 19 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PS | -10-60 ºC | Painted/Polishing/Anodizing |
| LH245540 | Aluminum/Steel | 245 | 540 | 24 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PSI | -10-60 C | Painted/Polishing/Anodizing |
| LH330590 | Aluminum/Steel | 330 | 590 | 50 | 1/4"NPT,3/8"NPT,1/2"NPT | As your request | 200 PS | -10-60 ºC | Painted/Polishing/Anodizing |
| Note: We Accept Customer Size Customization | |||||||||
