Durable Steel Air Tank 30 Liter 48 Liter 60 Liter for Semi Trailer

Product Description

Product Description

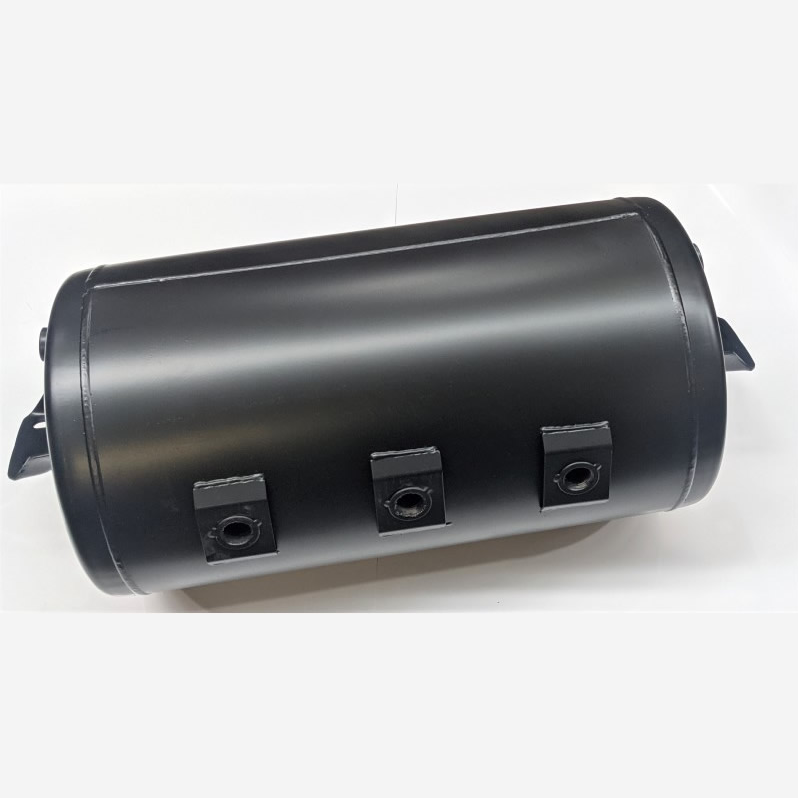

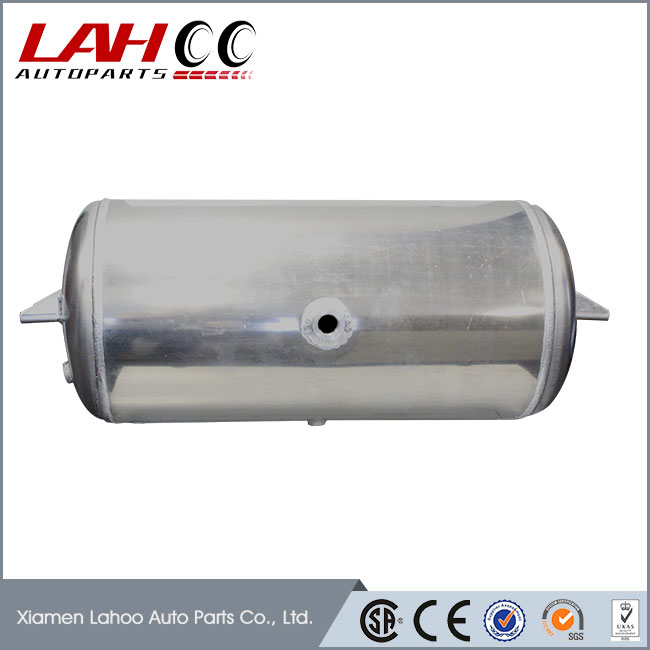

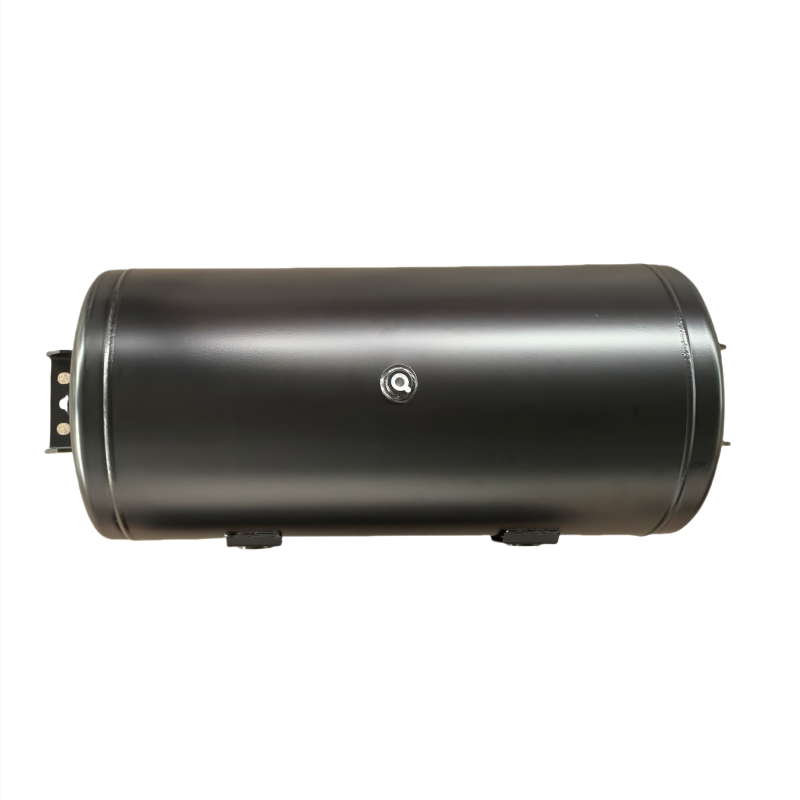

Trailer Air Tank - Steel air tank 30 liter 48 liter 60 liter semi trailer air tank

1. It is widely applied for vehicle refitting. Models of vehicles are not limited
2. Aluminum air tanks are lighter than steel and stainless steel tanks
3. A fresher aesthetic, stronger resistance in rust
4. Seamless better sealing
5. The air tanks comply with CE & SAE J10 Standard
6. Rated working pressure : 200psi , burst pressure is more than 1000psi
7. Finish, anodized, polished, powder coating

Product Parameters



Item No.	Material	Tank Dia. (mm)	Length  (mm)	Volume  (It)	Port Size	Port Q'ty	Max. Pressure	Max. Working Temperature	Surface Treatment
LH080200	Alu/Steel	88	200	1	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH100190	Alu/Steel	100	190	1.4	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130100	Alu/Steel	130	100	1	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130130	Alu/Steel	130	130	1.5	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130175	Alu/Steel	130	175	2	NPT/BPS/G Thread/PT	request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH150350	Alu/Steel	150	350	6	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH160220	Alu/Steel	160	220	4.5	NPT/BPS/G Thread/PT	request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH190330	Alu/Steel	190	330	9	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH190420	Alu/Steel	190	420	12	NPT/BPS/G Thread/PT	request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH220400	Alu/Steel	220	540	20	NPT/BPS/G Thread/PT	request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH245400	Alu/Steel	245	400	19	NPT/BPS/G Thread/PT	request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH245540	Alu/Steel	245	540	24	NPT/BPS/G Thread/PT	request	200 PSI	-10-60 C	Painted/Polishing/Anodizing
LH330590	Alu/Steel	330	590	50	NPT/BPS/G Thread/PT	request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
Note: We Accept Customer Size Customization

Detailed Photos

Certifications

Packaging & Shipping

Workshop Display

FAQ

Q1. How is the packaging of the air storage tank?
A: Generally, we pack the goods in neutral wooden boxes. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.

Q2. What are your payment terms?
A: 100% T/T, L/C, Paypal, and Western Union before delivery. We will show you photos of the products and packaging before you pay the balance.

Q3. What are your delivery terms for air storage tanks?
A: EXW, FOB, CFR, CIF, and  DDU are all available.

Q4. What is the delivery time for this aluminum air storage tank?
A: Generally, it will take 7 to 15 working days after receiving your advance payment. The specific delivery time depends on your order items and quantity.

Q5. Can you produce air storage tanks according to the samples?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.

Q6. What is your sample policy?
A: We can provide air dryer samples if we have ready parts in stock, but customers have to pay the sample fee and courier fee.

Q7. Do you test all air tanks before delivery?
A: Yes, we do 100% tests before delivery, no worry about quality.
