air brake chamber
T3030/T2424/T24/T30

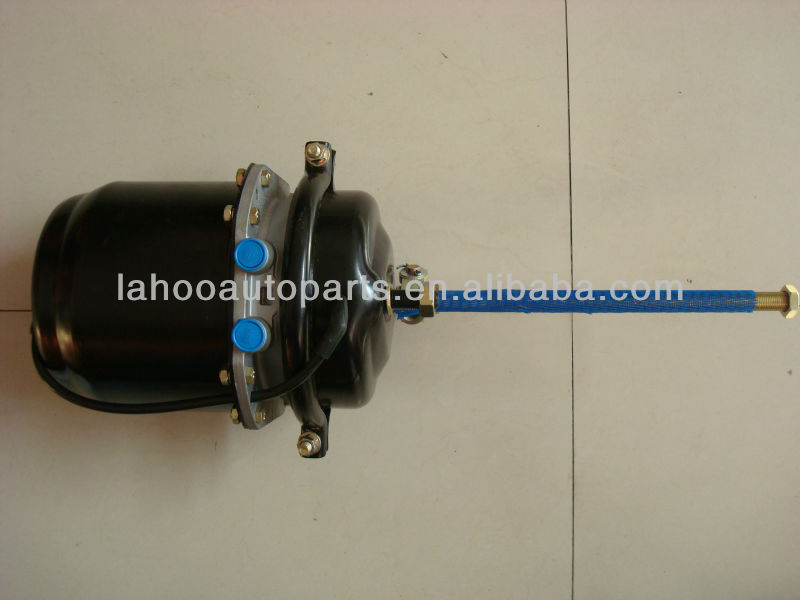

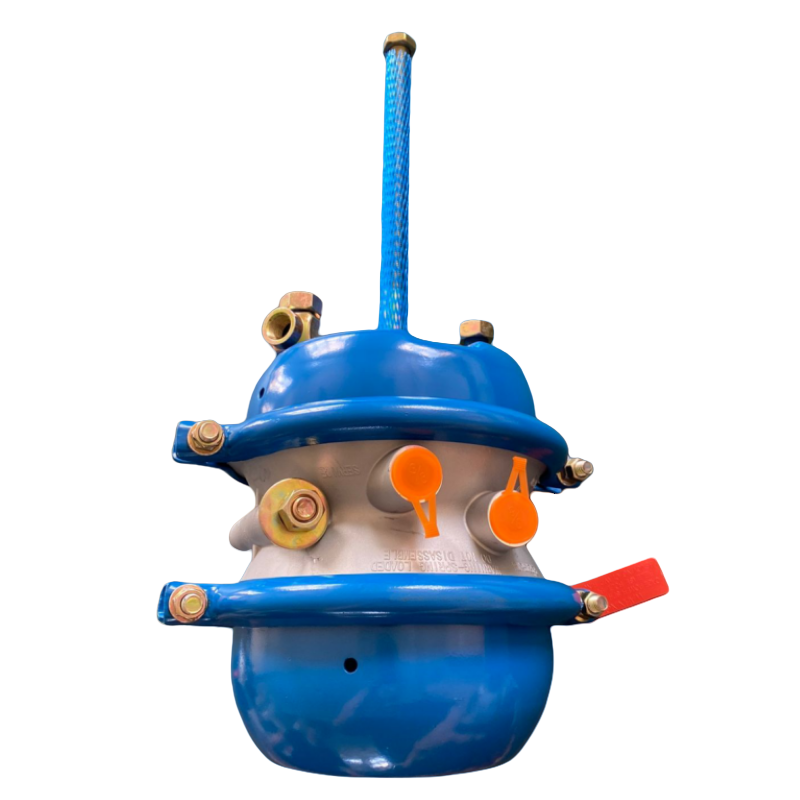

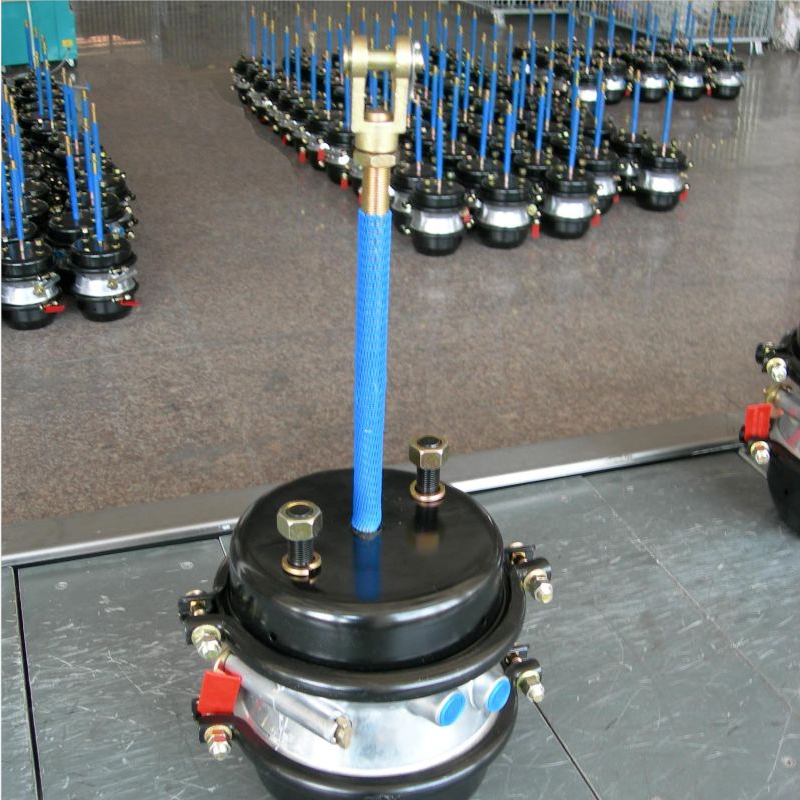

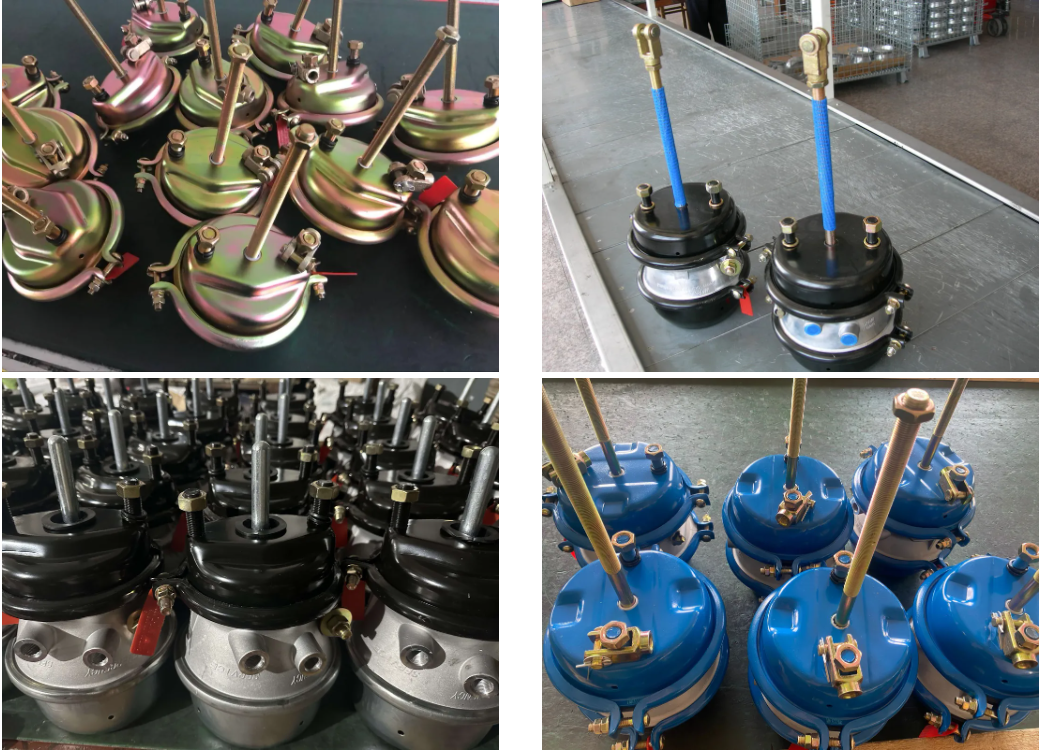

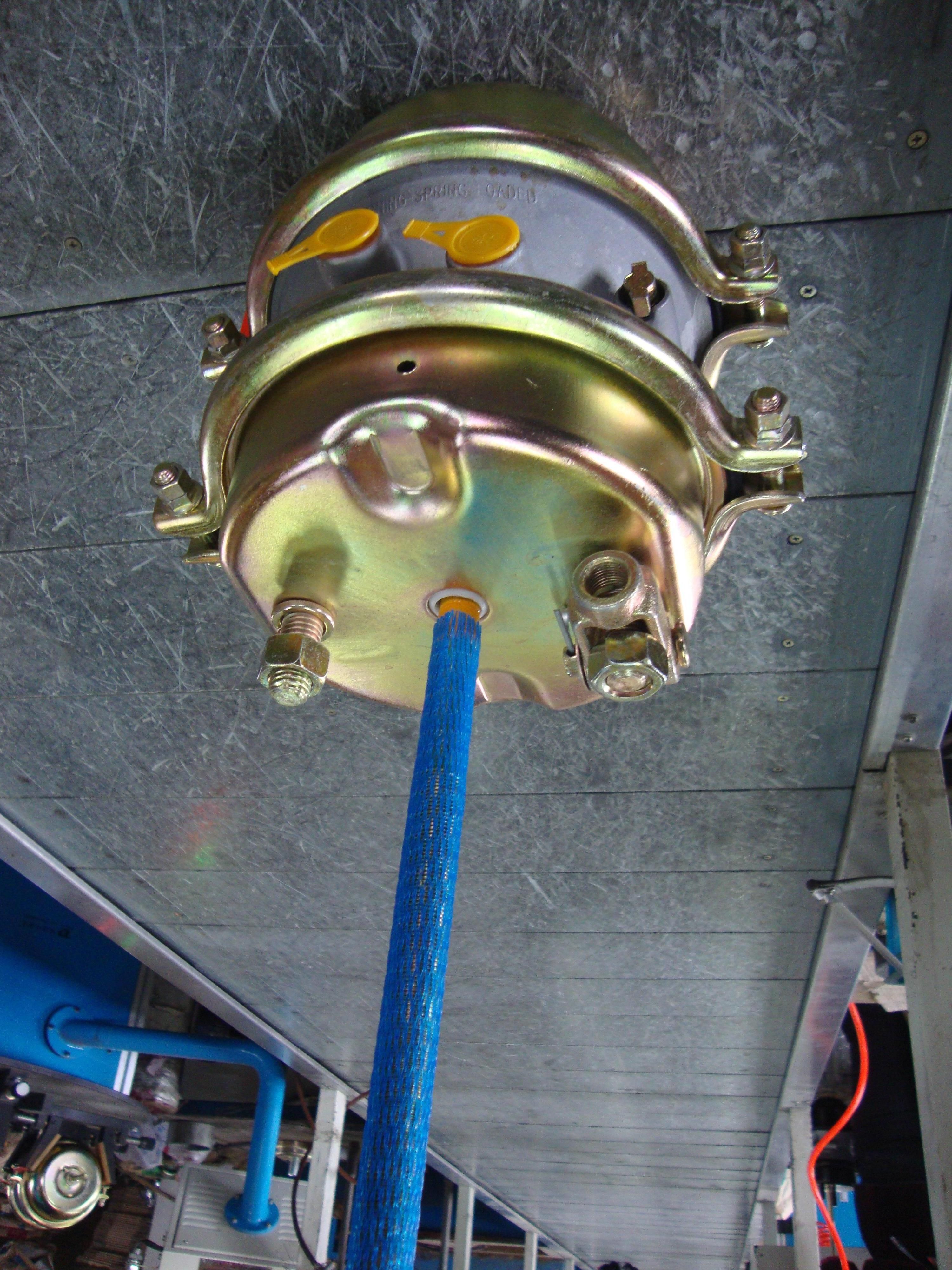

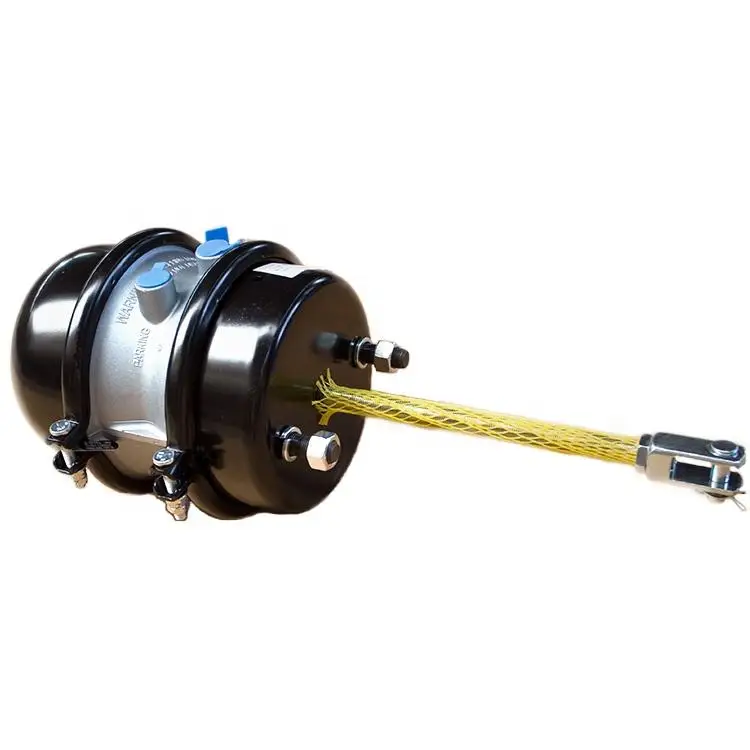

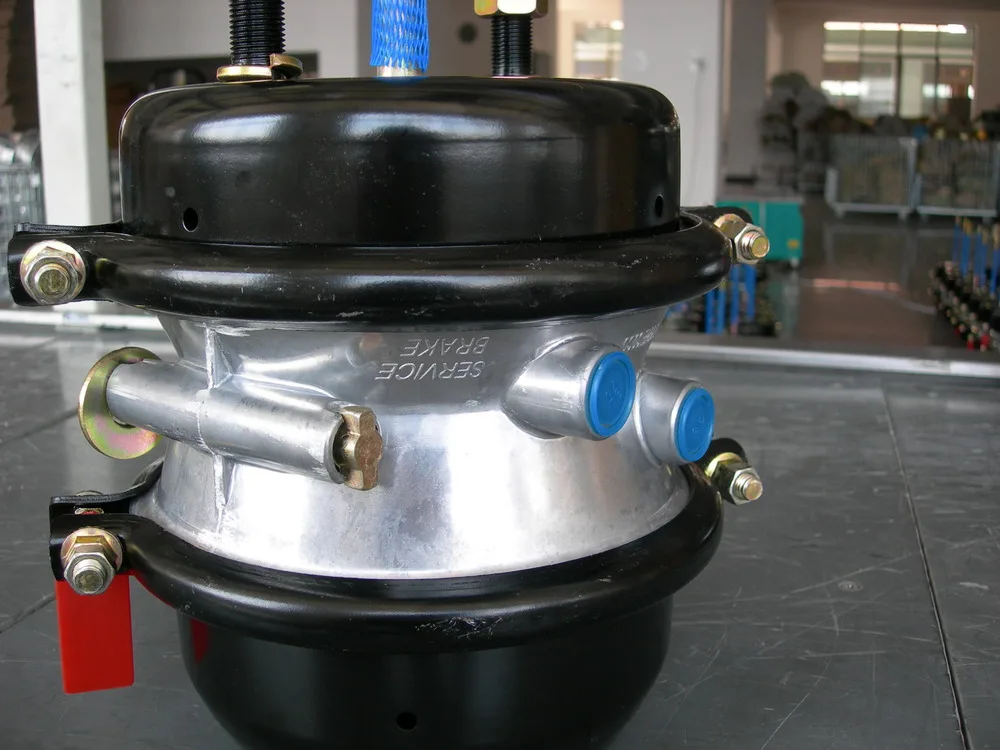

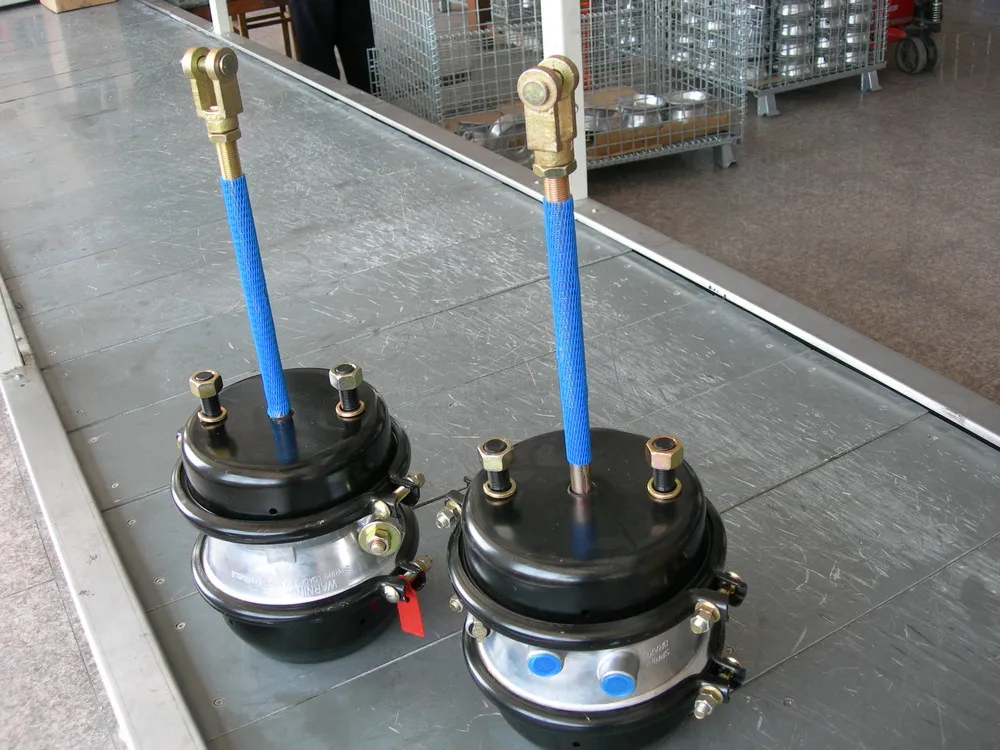

T24/30 Service Brake Chamber for Heavy Truck produced by Lahoo Auto. Air brake chambers are round metal containers,
located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle.
There are two kinds of air brake chambers — service and spring brake chambers.
2> Product Specification of Type 24/30 Long Stroke Service Brake Chamber
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | kg | ||||
| LHC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| LHC-T12 | 44.5 | 125 | 105 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 2/8"-18NPTF | 7/16"-14UNC | 2.3 |
| LHC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 2/8"-18NPTF | 7/16"-14UNC | 0.3 |
| LHC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 2/8"-18NPTF | 5/8-11UNC2A | 4 |
| LHC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 2/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| LHC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 2/8"-18NPTF | 5/8-11UNC2A | 4.8 |
3> Product Feature And Details of Type 24/30 Long Stroke Service Brake Chamber
Name: Type 24/30 Long Stroke Service Brake Chamber
Material: Steel, Aluminum
Max operating pressure: 800Kpa ~ 1Mpa
Operating temperature: -40 °C~+80 °C
Stroke: 0-76MM
Life-time: Service Chamber: ≥1000000 times
Life-time: Parking Chamber: ≥200000 times
Aplication: Universal
Leading Standard: SAE J1469-95 by Society of Automobile Engineers USA
