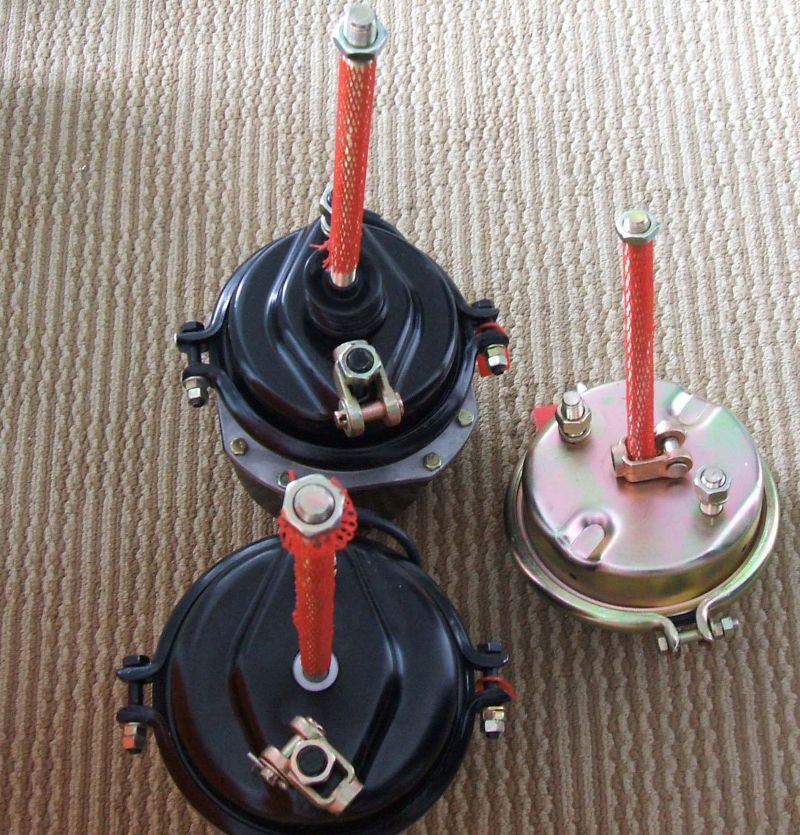

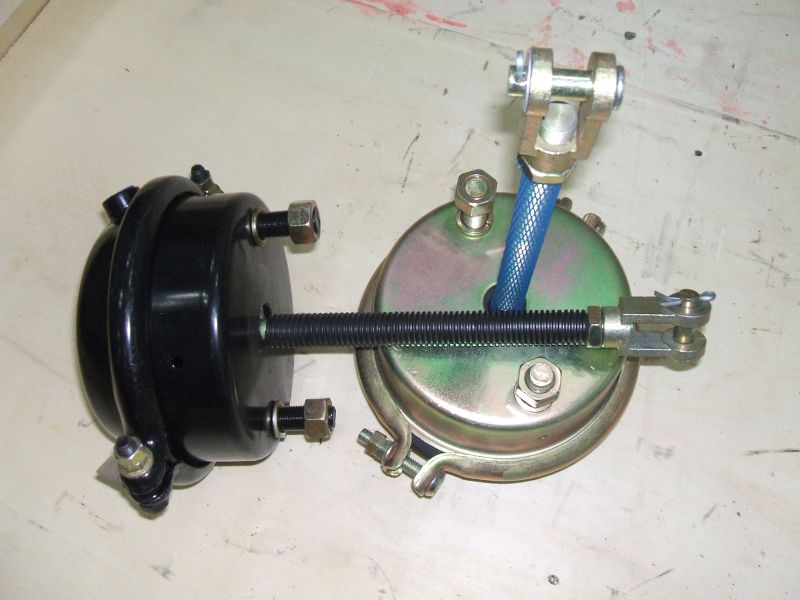

T12 T16 T24 Trailer Truck Brake Chamber Wedge Brake Chamber

Lahoo Auto Parts specializes in Air Brake Chambers for many years.
We can supply trailer truck Service Brake Chamber T3030, T2430, T2424,  T2024...,
Spring Brake Chamber (T09/T12/T16/T20/T24/T30)

Get Instant QuoteContact Us
Product Details
2
Material: Steel & rubber
Max operating pressure: 800Kpa ~ 1Mpa
Operating temperature: -40 °C~+80 °C
Stroke: 0-76mm
Life-time: Service Chamber: ≥1000000 times
Life-time: Parking Chamber: ≥200000 times
Application: Volvo, Iveco, Man, Benz, Hino, etc.
Leading Standard: SAE J1469-95 by Society of Automobile Engineers USA

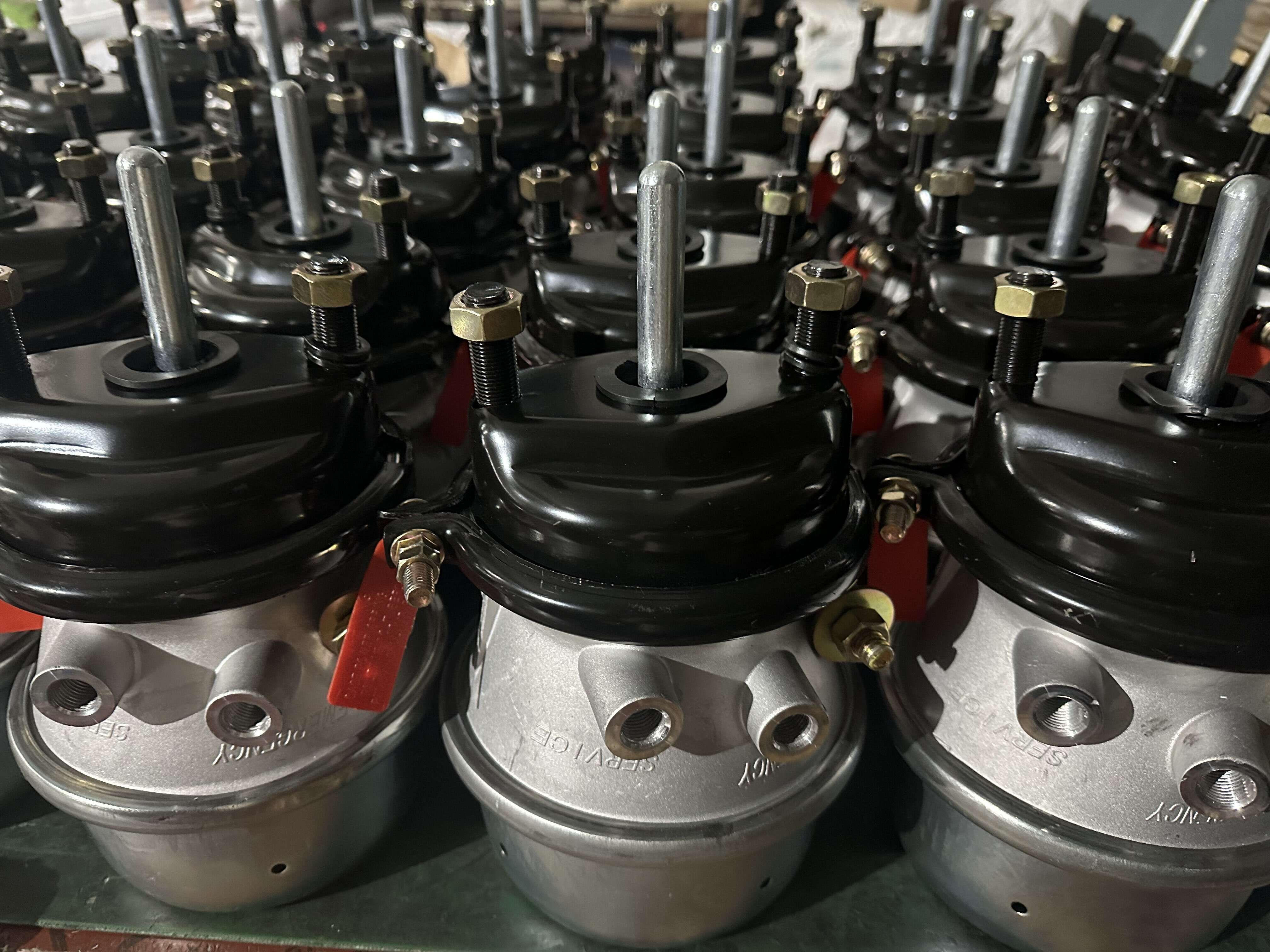

Service Brake Chamber(T09/T12/T16/T20/T24/T30)

Service Brake Chamber(T09/T12/T16/T20/T24/T30)
The  is used when only the application of service brake air is required on an axle.
There will be no emergency braking provided on this axle.
You will find service brake chambers on steer axles, some rear axles, and old trailers that use a relay emergency valve to apply parking air pressure to the service chamber.
Item No. Stroke R1   R2   L1   L2   L4   Push Rod Thread Air Inlet Thread Mounting Bolt Thread Weight
(mm) (mm) (mm) (mm) (mm) (mm) kg
LHC-T09 44.5 87 68 104±5 106±5 130±3 1/2"-20UNF 1/4"-18NPTF 7/16"-14UNC 1.9
LHC-T12 44.5 125 105 104±5 106±5 130±3 1/2"-20UNF 2/8"-18NPTF 7/16"-14UNC 2.3
LHC-T16 57 107 83 109±3 163±5 160±3 1/2"-20UNF 2/8"-18NPTF 7/16"-14UNC 0.3
LHC-T20 57 11 88 84±5 240±5 200±4 5/8"-18UNF2A 2/8"-18NPTF 5/8-11UNC2A 4
LHC-T24 64 116 93 123±5 240±5 206±4 5/8"-18UNF2A 2/8"-18NPTF 5/8-11UNC2A 4.1
LHC-T30 64 125 105 123±5 285±5 255±4 5/8"-18UNF2A 2/8"-18NPTF 5/8-11UNC2A 4.8
Service Brake Chamber.jpg

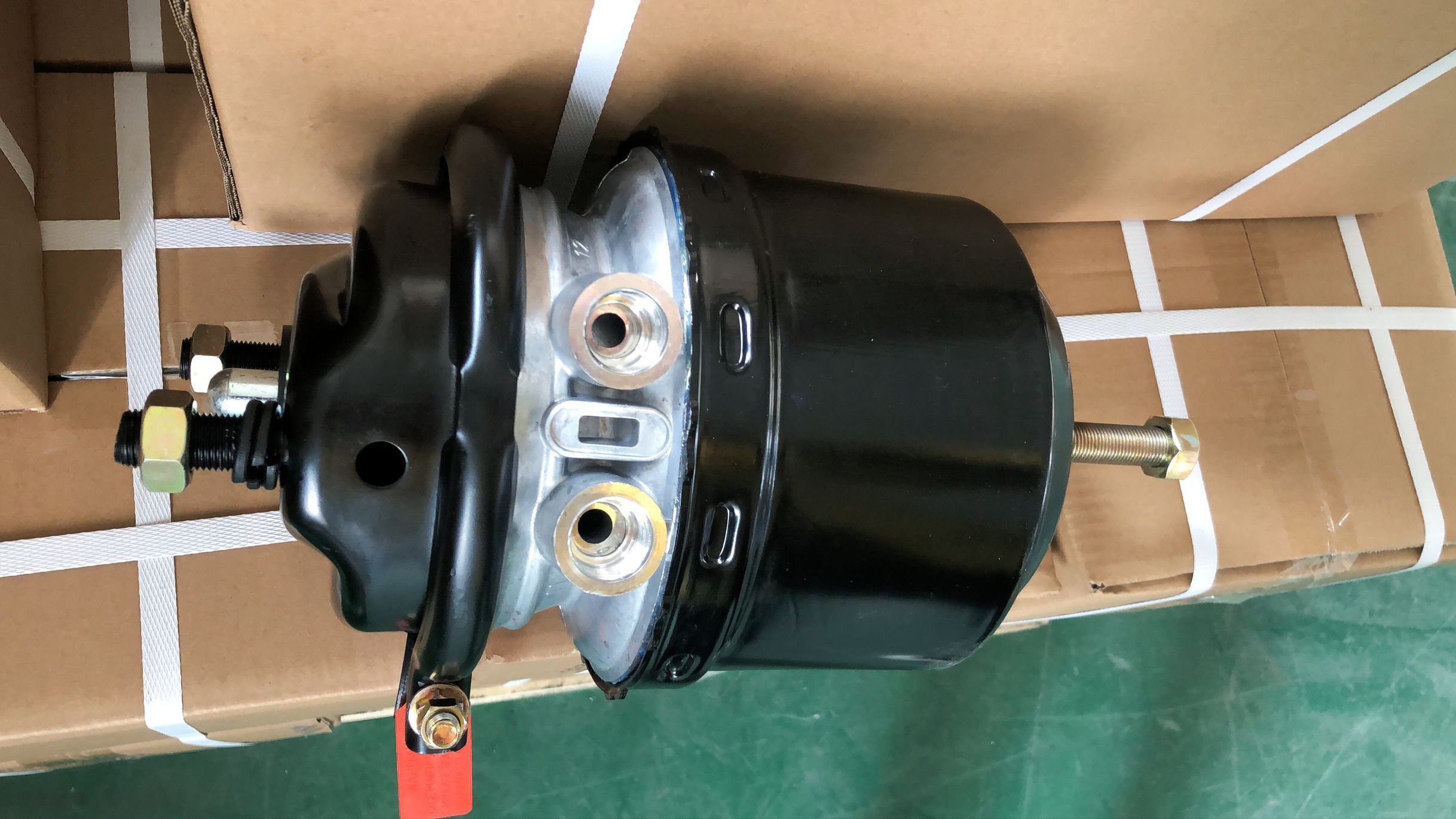

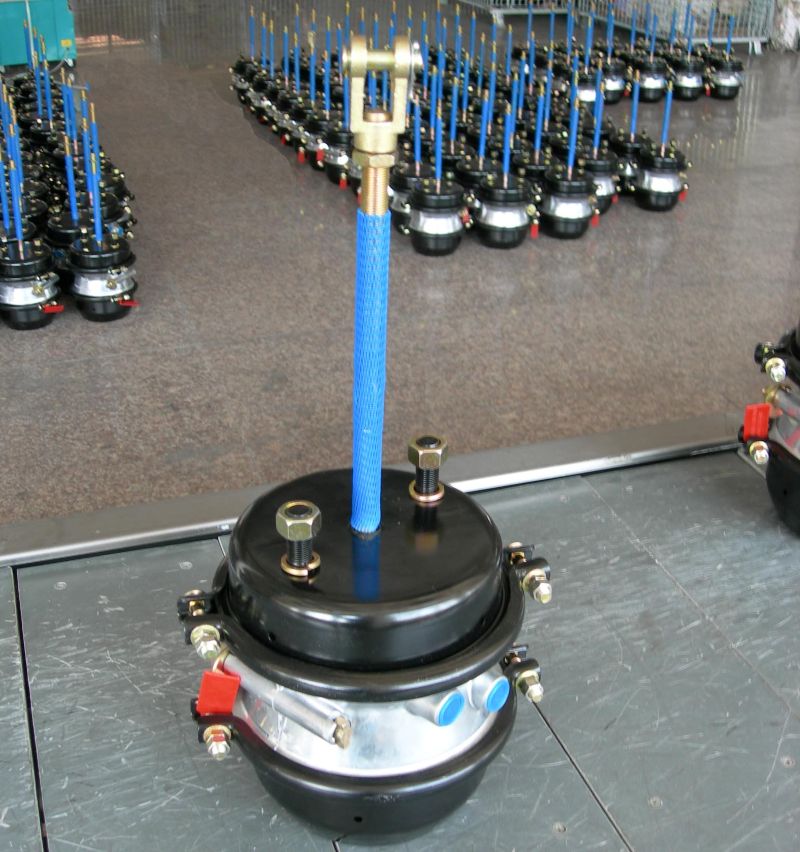

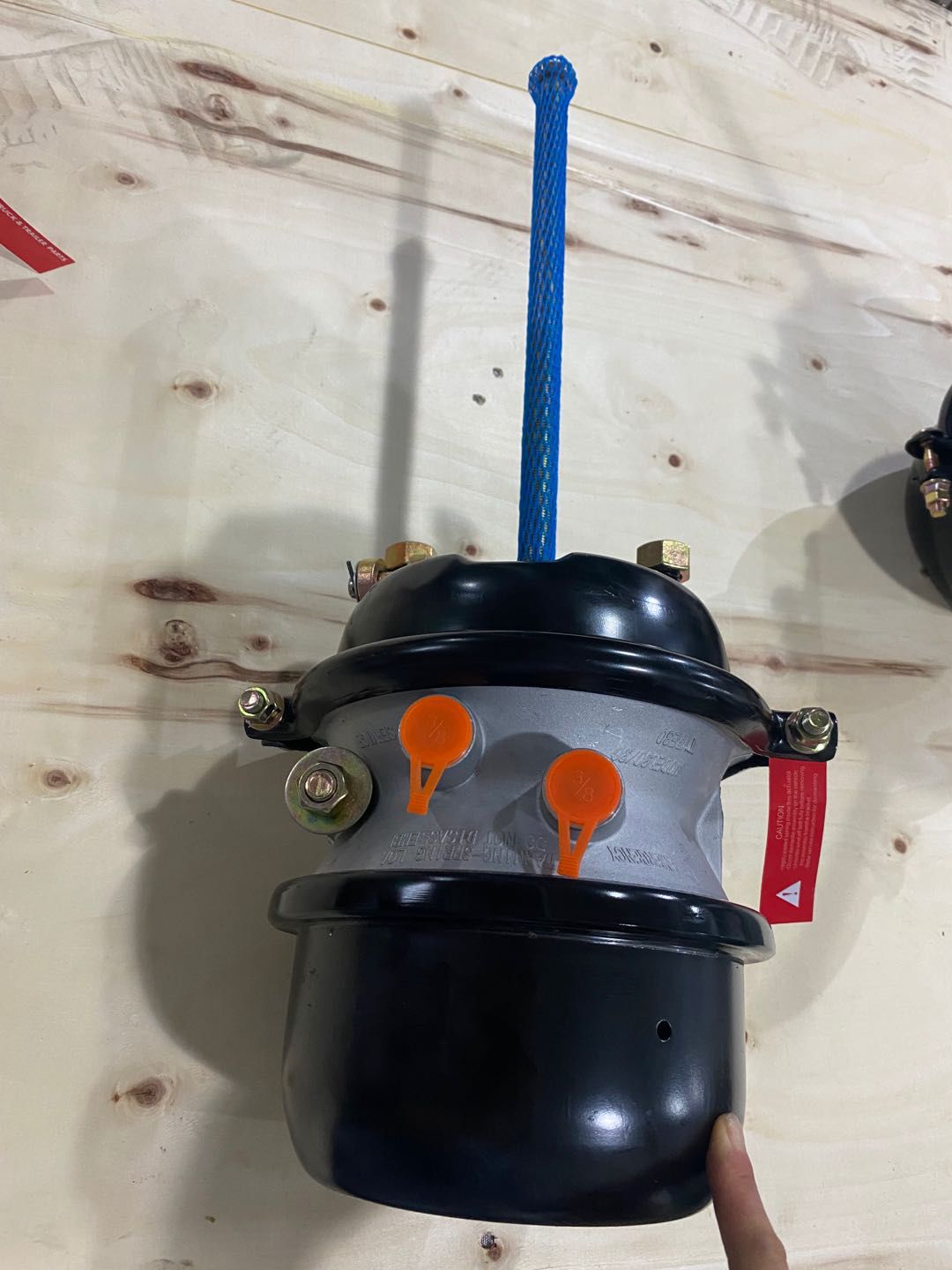

Spring Brake Chamber(T2024/T2424/T2430/T3030)

The Spring Brake Chamber consists of the service brake and parking/emergency brake.
The service brake is the section at the clamp closest to the axle. The diaphragm, pushrod and return spring may be serviced by removing the clamp.
The spring/emergency brake is everything from the first clamp to the end farthest from the axle. The spring brake must be completely replaced if it is faulty.
Item  No.

Stroke

 R1  R2 L1 L2 L4 Push Rod Thread  Air Inlet Thread Mounting Bolt Thread   Weight
mm mm mm  mm  mm mm
LHC-T2024DP 64 110 88 220±5 75±5 50±4 M16*1.5  M16*1.5 M16*1.5  7.78 KG
LHC-T2424DP 64 116 93 224±5 240±5 206±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 8.1 KG
LHC-T2430DP 64 163 184 234±5 240±5 206±4 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 9.2 KG
LHC-T30330DP 64 125 105 238±5 285±5 255±5 5/8"-18UNF2A 3/8"-18NPTF 5/8-11UNC2A 9.5 KG
Spring Brake Chamber.jpg
